Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

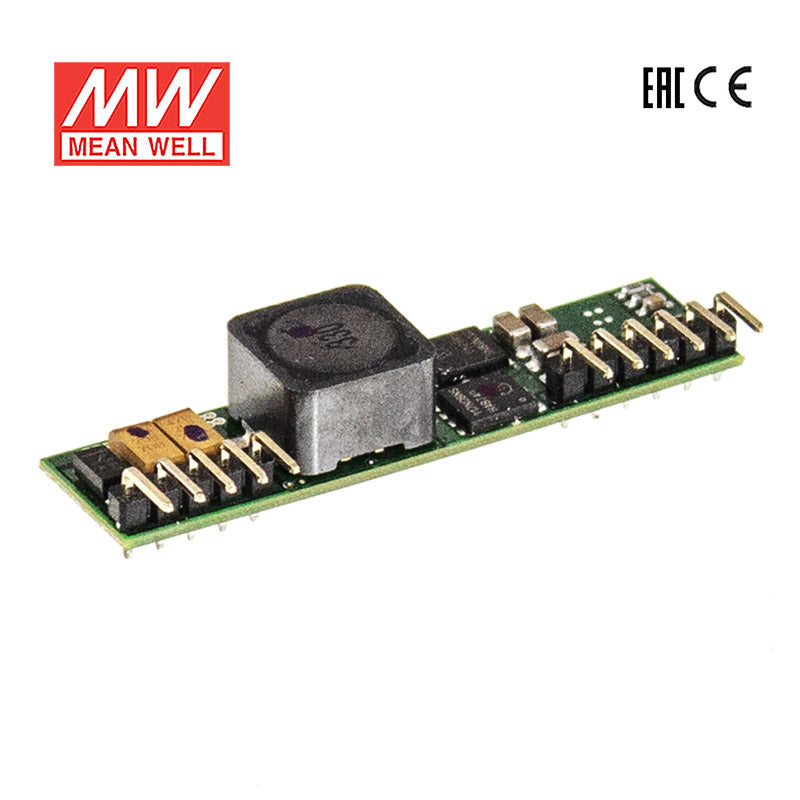

Mean Well NID35-15 DC-DC Converter - 36W - 20~53V in 15V out
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 96%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x0.512"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage20V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width0.51 in
-
Height0.43 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NID35-15 for 15V industrial control or embedded electronics?
Yes, this model provides constant-voltage 15V output rated at 36W and 2.4A. It is appropriate for 15V electronic loads in industrial or embedded systems when the total demand stays within 36W and 2.4A. It is not intended for loads that require a different output voltage.
Is the NID35-15 suitable for 15V instrumentation or automation interface boards?
It can be a fit where the equipment requires a regulated 15V rail and the load stays within 2.4A. With a 36W rating, it suits smaller 15V instrumentation, interface, or control sections rather than high-power assemblies. The converter uses constant-voltage output, which matches standard 15V electronics.
Can this converter power a compact 15V subsystem from a variable input source?
It is designed for a 20 to 53V input range and outputs 15V constant voltage. That makes it relevant for compact 15V subsystems fed from an input source that moves within that range. Output capacity is limited to 36W and 2.4A.
How does the NID35-15 compare with the other NID35 models?
The NID35-15 delivers 36W at 15V with 2.4A output. Its siblings are NID35-12 at 34.8W, 12V, 2.9A; NID35-24 at 36W, 24V, 1.5A; and NID35-5 at 17.5W, 5V, 3.5A. Across the family, the output voltage changes first, and current and wattage adjust with it.
Is the NID35-15 meant for outdoor use or temperature-challenging indoor panels?
The specified operating temperature range is -30°C to +85°C, so it is rated for demanding indoor temperature conditions. The provided specs do not list an IP rating or enclosure class. Based on the listed information, temperature capability is defined but outdoor exposure protection is not.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NID35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID35-5 DC-DC Converter - 17.5W - 10.5~53V in 5V out | 17.5W | 5V | 3.5A | Indoor | $11.65 | View |
| Mean Well NID35-24 DC-DC Converter - 36W - 30~53V in 24V out | 36W | 24V | 1.5A | Indoor | $11.65 | View |
| Mean Well NID35-12 DC-DC Converter - 34.8W - 20~53V in 12V out | 34.8W | 12V | 2.9A | Indoor | $11.65 | View |
