Mean Well RSP-1000-27 Power Supply 999W 27V
Notify me when it's back in stock
Your order will be processed within 24 hours

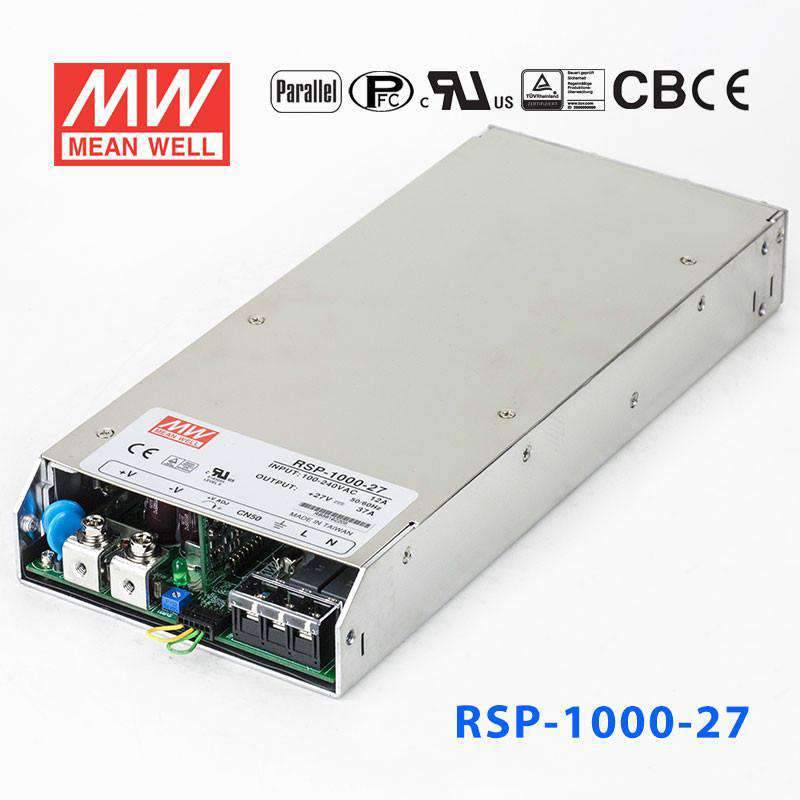

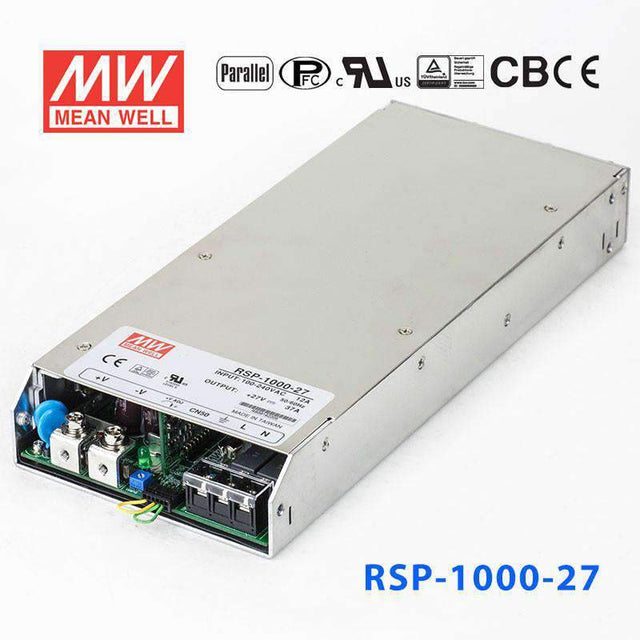

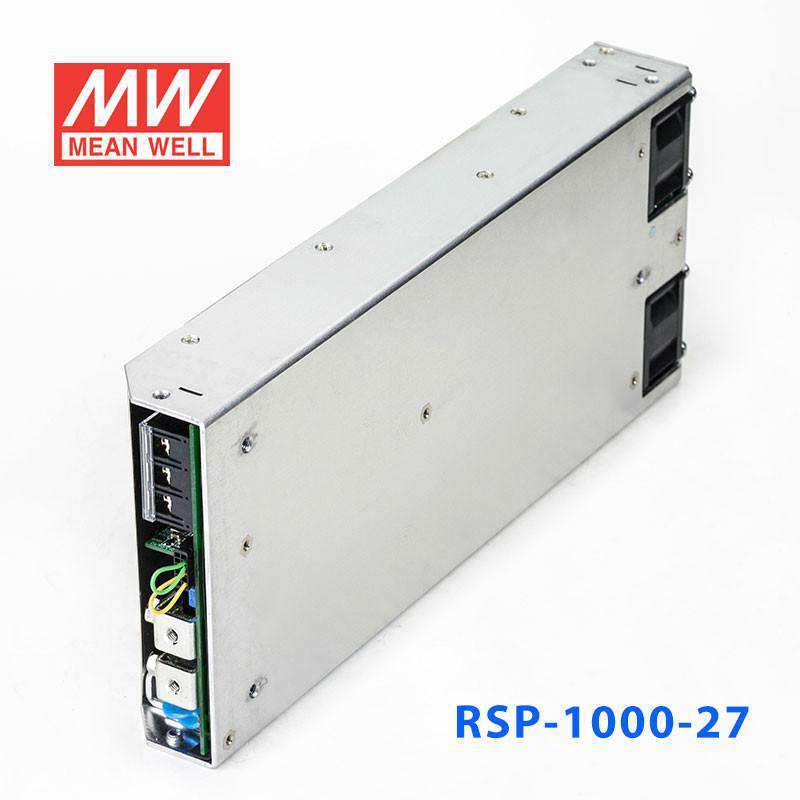

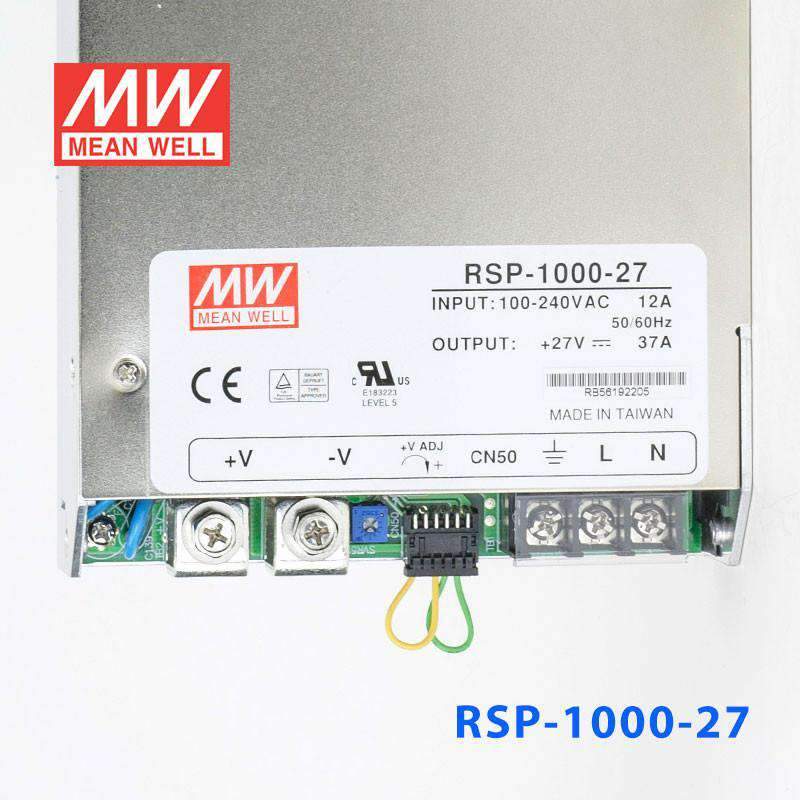

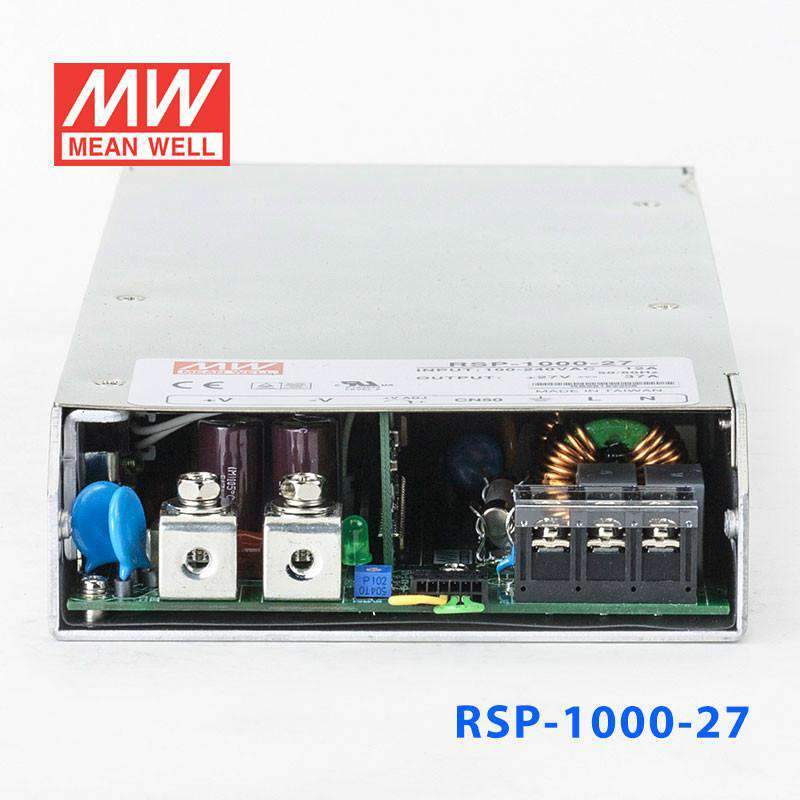

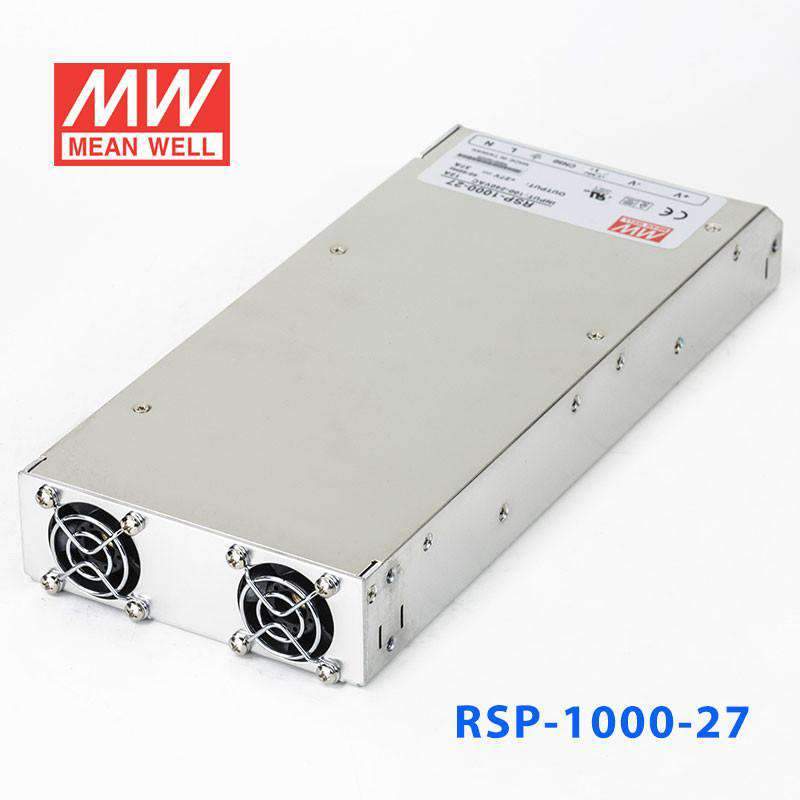

Mean Well RSP-1000-27 Power Supply 999W 27V
The RSP-1000 is a 1000W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004, CCC GB4943.1 , BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating999 Watt
-
Output Voltage27 Volt
-
Rated Current37 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
::specification::
Frequently Asked Questions
What applications require a 27V power supply like the RSP-1000-27?
The RSP-1000-27 provides 27V at 37A (999W) and is suited for 27V DC bus systems such as industrial battery charging applications for 24V lead-acid battery banks requiring a float/absorption voltage, certain servo amplifiers, and specialized telecommunications equipment with 27V bus specifications. The 90–264VAC input supports worldwide supply voltages.
Is the RSP-1000-27 suitable for N+1 redundant configurations?
Yes. Like all RSP-1000 variants, the RSP-1000-27 supports active current sharing (3+1), allowing up to three units in parallel delivering 111A at 27V combined, with a fourth unit available as a hot standby. Load balancing is automatic.
How does the RSP-1000-27 compare to the RSP-1000-24 and RSP-1000-48?
RSP-1000 voltage variants: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). The RSP-1000-27 sits between 24V and 48V at 27V/37A/999W. All share the same physical chassis and electrical characteristics.
What is the operating temperature range and ingress protection of the RSP-1000-27?
The RSP-1000-27 operates from -20°C to +60°C. It carries no IP rating for moisture or dust ingress, and must be installed in an appropriately rated enclosure for the deployment environment. The -20°C lower limit means it is not suited for unheated outdoor enclosures in very cold climates without supplemental heating.
What certifications does the RSP-1000-27 carry for global market compliance?
The RSP-1000-27 holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. These approvals cover Taiwan, China, Europe, North America, and the Eurasian Economic Union.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-1000 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-1000-48 Power Supply 1008W 48V | 1008W | 48V | 21A | Indoor | $209.55 | View |
| Mean Well RSP-1000-12 Power Supply 720W 12V | 720W | 12V | 60A | Indoor | $242.56 | View |
| Mean Well RSP-1000-24 Power Supply 960W 24V | 960W | 24V | 40A | Indoor | $210.55 | View |
