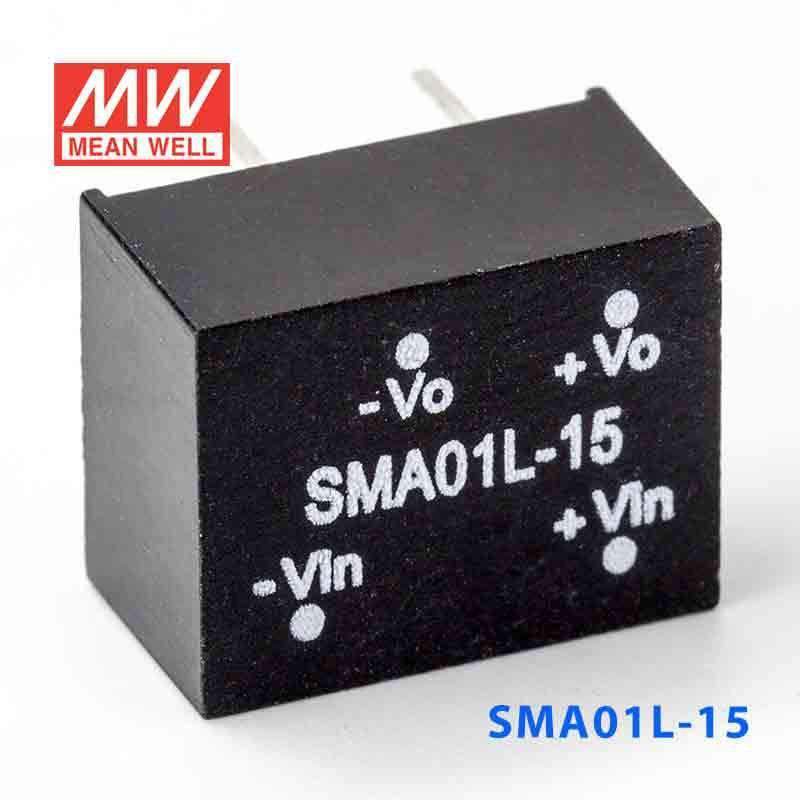

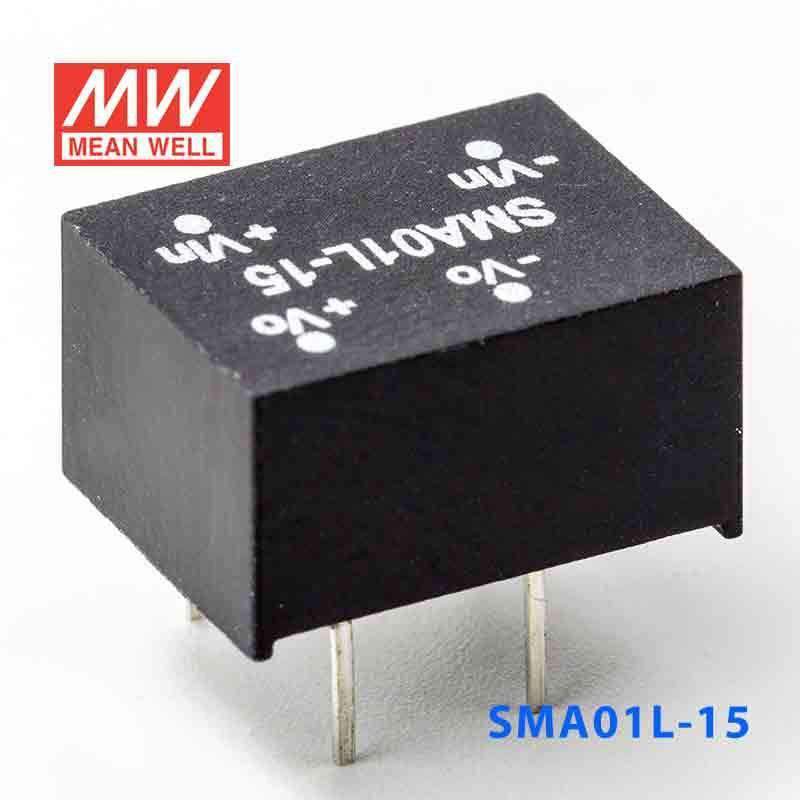

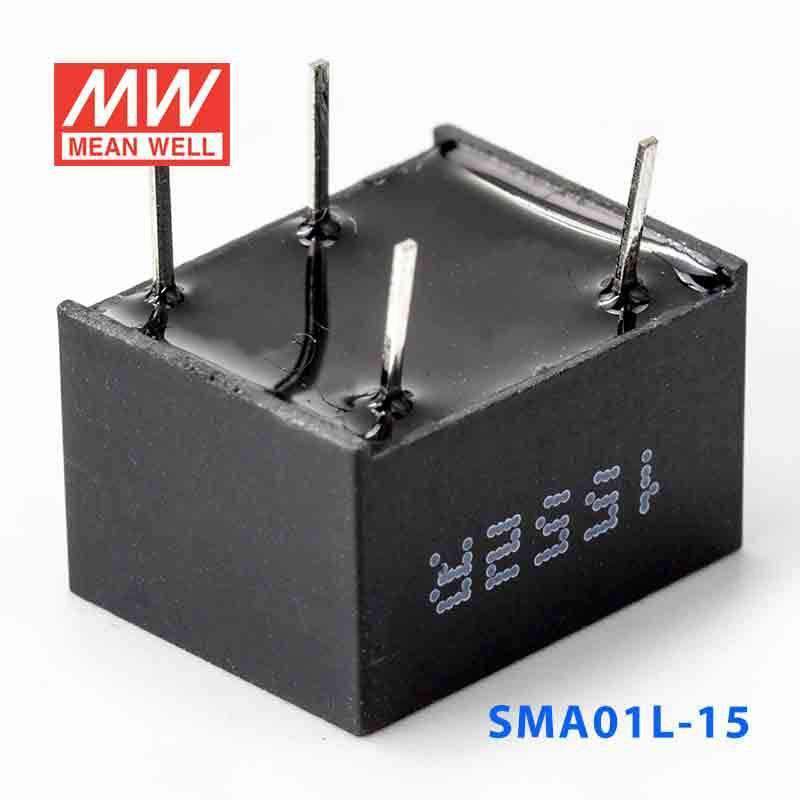

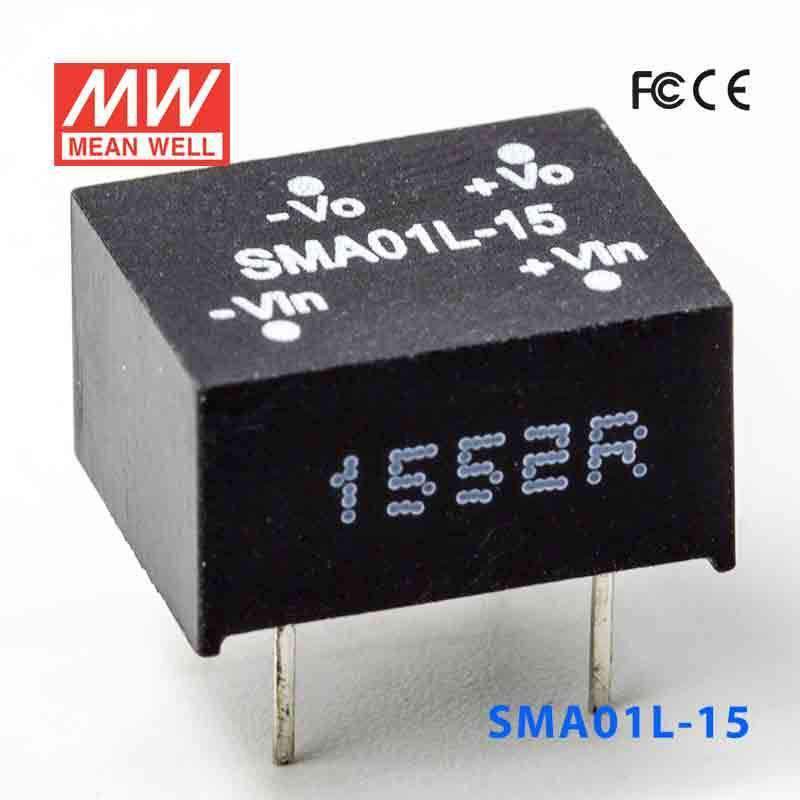

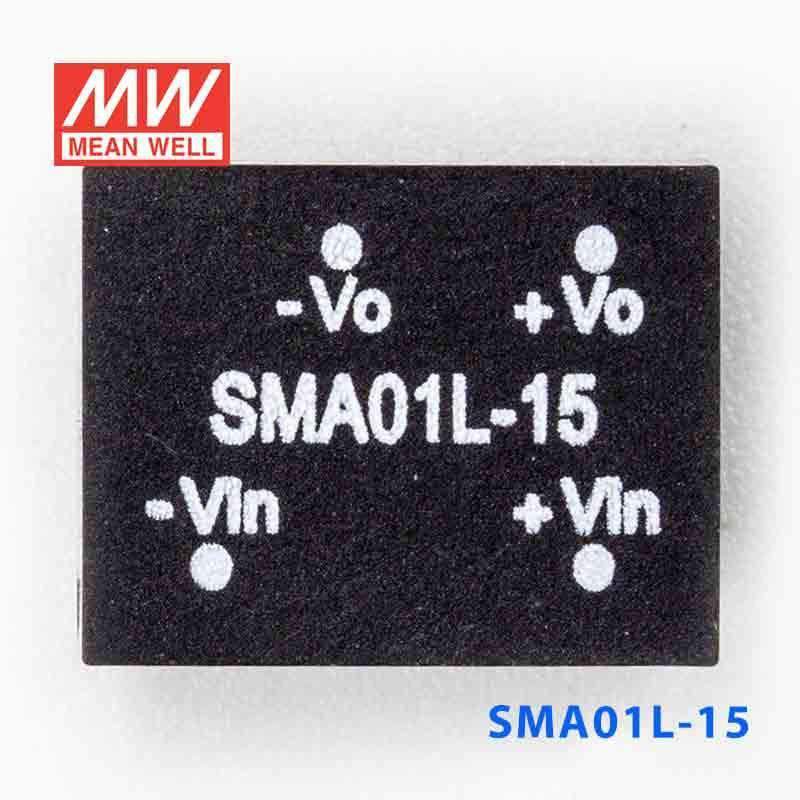

Mean Well SMA01L-15 DC-DC Converter - 1W - 4.5~5.5V in 15V out
The SMA01L is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE ℃ -55 ~ +125 ℃ ± , 10 ~ 95% RH ℃ ) 0.05% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSMA Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.5 in
-
Width0.4 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SMA01L-15 for a low-power 15V rail in embedded or industrial electronics?
Yes, for very small 15V electronics that stay within the 1W rating. The SMA01L-15 takes 4.5~5.5V input and provides constant-voltage 15V output. It is intended for compact auxiliary 15V circuits rather than larger 15V loads.
Is the SMA01L-15 a fit for a small 15V analog, sensing, or interface section inside automation hardware?
It can fit small 15V analog, sensing, or interface sections when total power stays within 1W. The converter is designed around a 4.5~5.5V input range and regulated 15V output. Its miniature package is useful where the power section needs to occupy very little space.
Would this converter work in compact instrumentation modules that need 15V from a 5V-class source?
Yes, if the source is within 4.5~5.5V and the module's 15V demand fits the 1W limit. The device measures 12.7 × 10.16 × 7.1 mm and weighs 0.0017 kg, which helps in small embedded assemblies. It is a constant-voltage model for electronics that require a stable 15V rail.
Can the SMA01L-15 be used for a compact 15V monitoring or signal-processing subcircuit?
It can be used for small monitoring or signal-processing subcircuits that need 15V and remain within 1W. The converter's role is voltage conversion, not supplying larger 15V power stages. It is most appropriate where the required output is specifically 15V constant voltage.
How is the SMA01L-15 different from the other SMA01L models?
The sibling models all share 1W power and 4.5~5.5V input. The SMA01L-15 provides 15V output and lists 0.07A, while SMA01L-12 is 12V and 0.08A, SMA01L-09 is 9V and 110A, and SMA01L-05 is 5V and 200A. The correct choice depends on the output voltage your design requires and the listed current for that model.
Is the SMA01L-15 suitable for outdoor equipment or wide-temperature industrial use?
The specified operating temperature range is -40°C to +90°C, which supports broad temperature conditions. The provided data does not include an IP rating, so it should not be treated as outdoor-rated for water or dust exposure based on these specs alone. It is better suited to protected enclosures unless external environmental sealing is provided.
