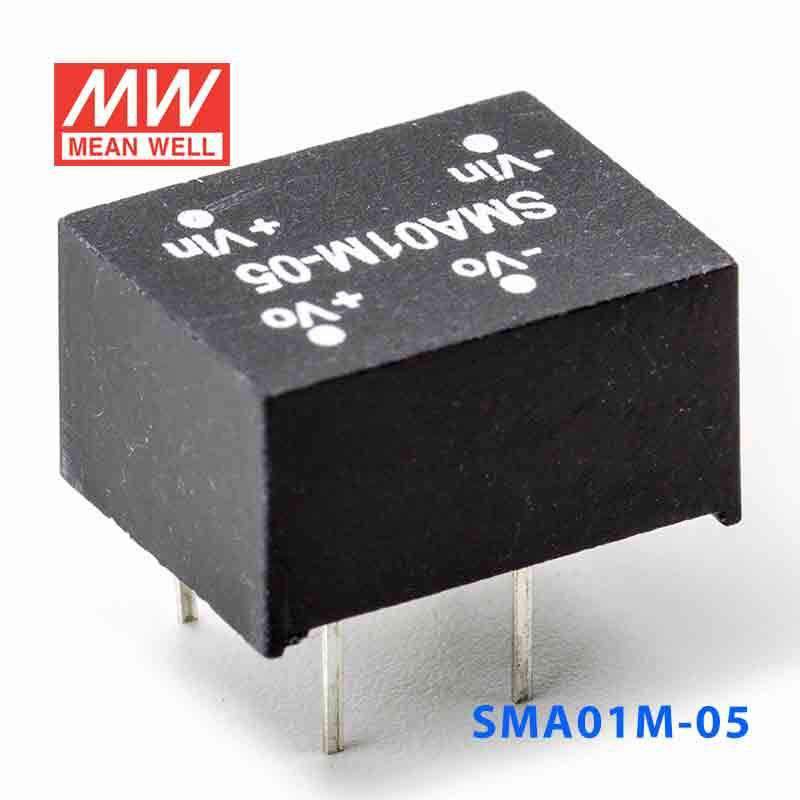

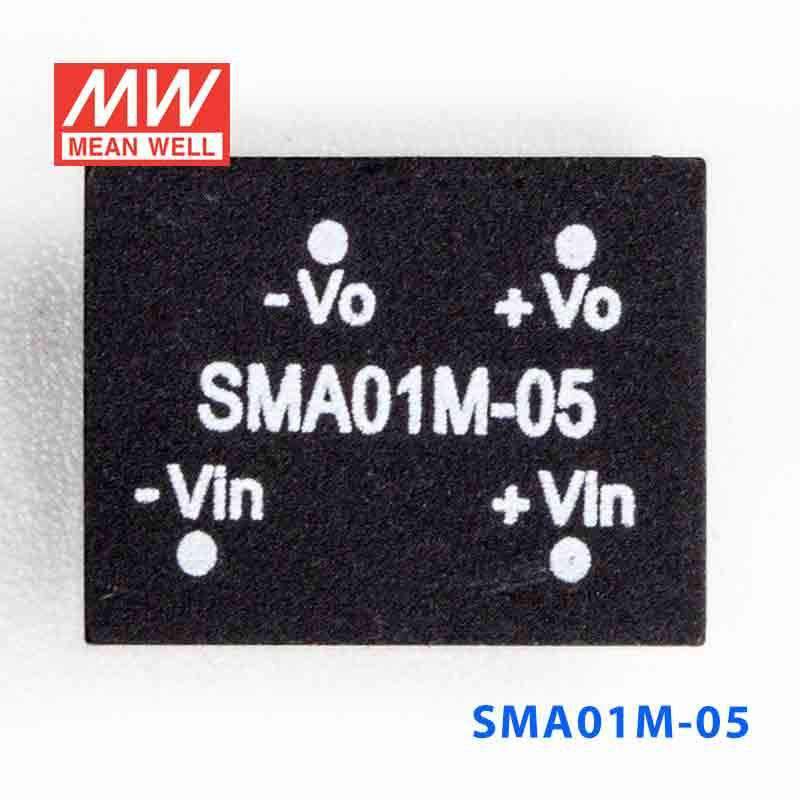

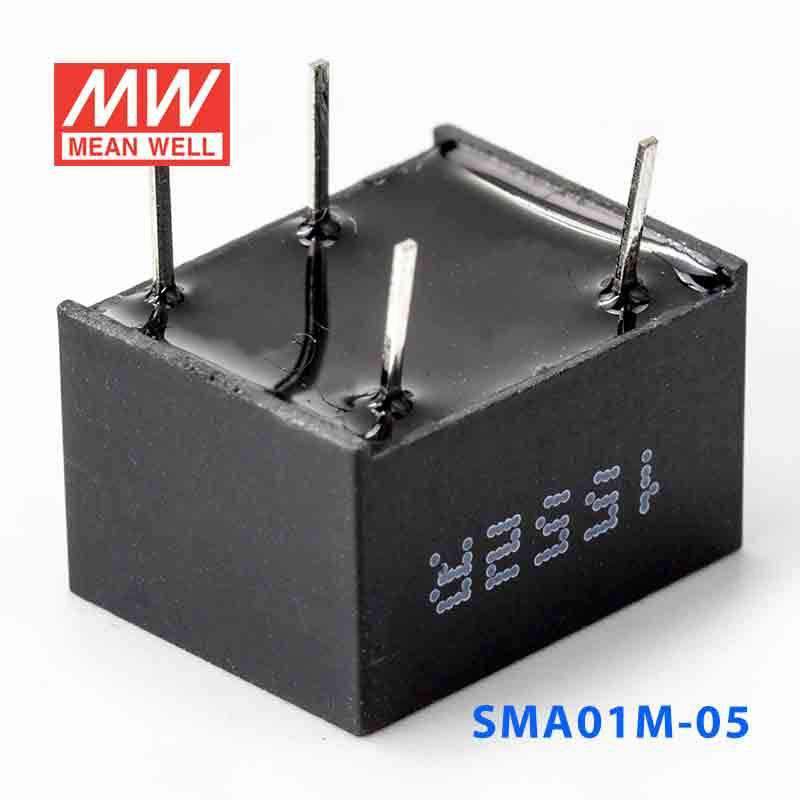

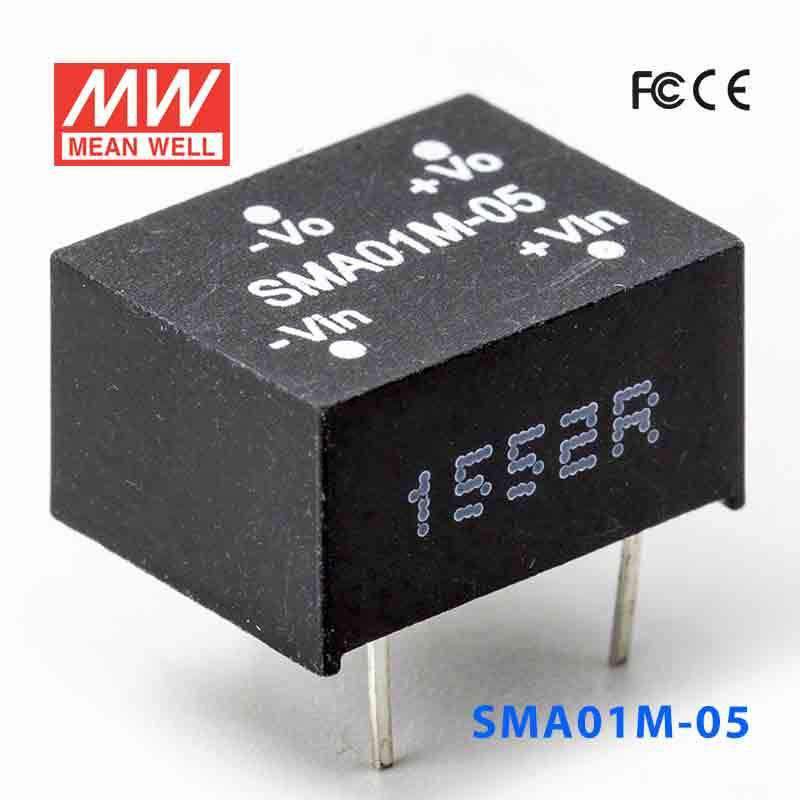

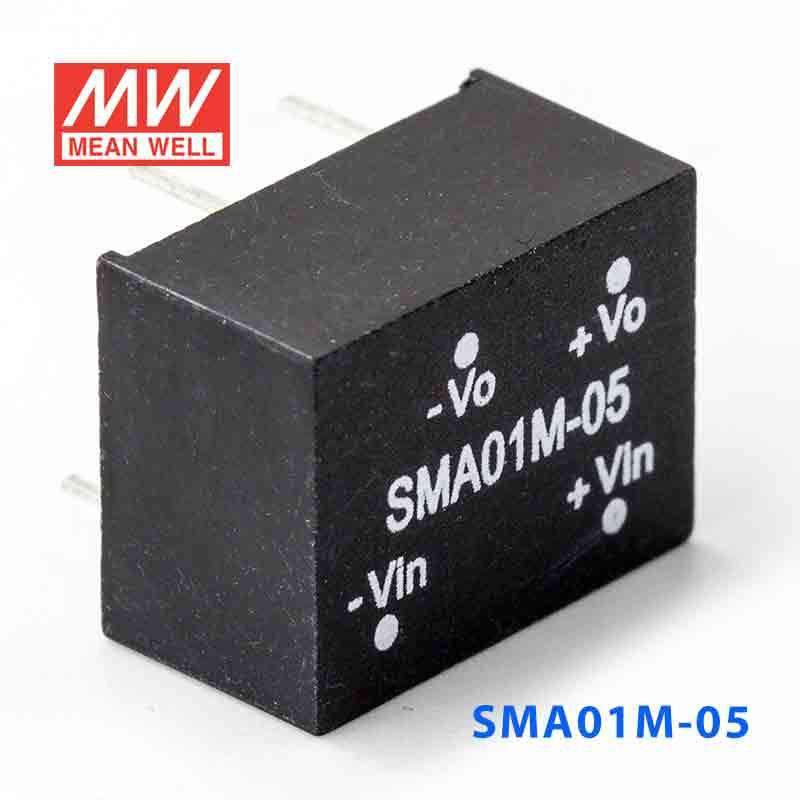

Mean Well SMA01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out
The SMA01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE ℃ -55 ~ +125 ℃ ± , 10 ~ 95% RH ℃ ) 0.05% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSMA Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.5 in
-
Width0.4 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SMA01M-05 to derive 5V for a small controller board inside industrial equipment?
Yes, this model is a constant-voltage 5V converter rated at 1W, so it fits low-power controller, logic, or interface circuits that need a regulated 5V rail. Its 10.8~13.2V input range makes it suitable where that input window is already available inside the equipment.
Is the SMA01M-05 appropriate for powering 5V monitoring or signal-conditioning electronics in automation panels?
It can fit low-power 5V monitoring or signal-conditioning sections because the output is fixed at 5V and the unit is rated for 1W. The compact 12.7 × 10.16 × 7.1 mm package also suits dense control assemblies where board space is limited.
Can this converter be used in embedded systems that need a small 5V auxiliary rail from a 10.8~13.2V source?
Yes, that is a suitable use case when the embedded load stays within the unit's 1W capacity and needs constant 5V output. This model is intended for low-power auxiliary conversion rather than larger 5V loads.
Is the SMA01M-05 suitable for outdoor or harsh-environment use?
The operating temperature range is -40°C to +90°C, which supports wide-temperature indoor equipment use. No IP rating is listed, so it is better suited to protected enclosures rather than direct outdoor exposure.
How does the SMA01M-05 compare with the other SMA01M models?
Within the SMA01M series, all models are 1W constant-voltage converters with 10.8~13.2V input. The SMA01M-05 is 5V and 200A, the SMA01M-09 is 9V and 110A, the SMA01M-12 is 12V and 0.08A, and the SMA01M-15 is 15V and 0.07A.
