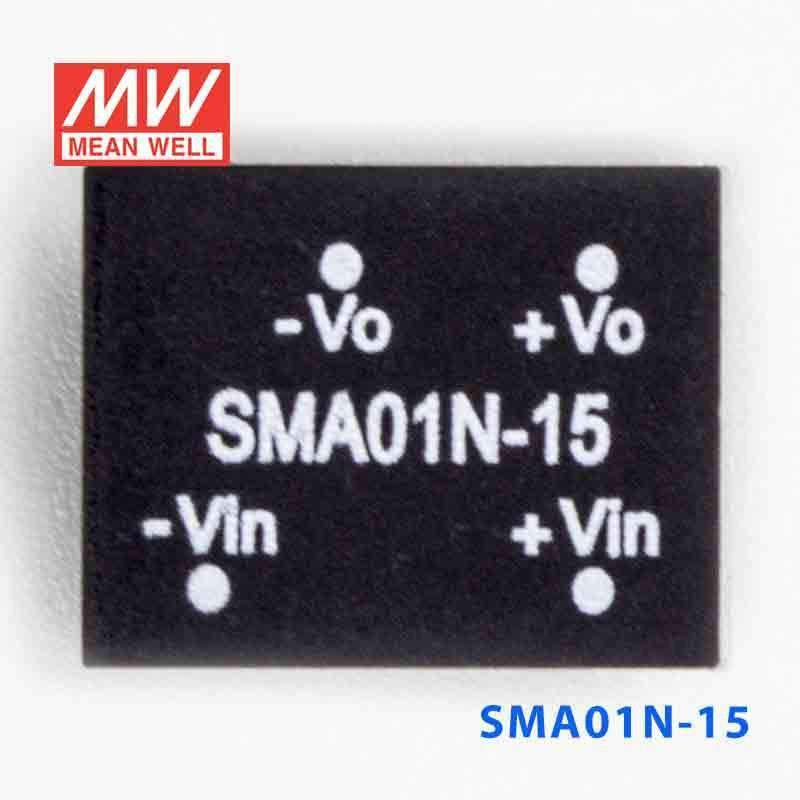

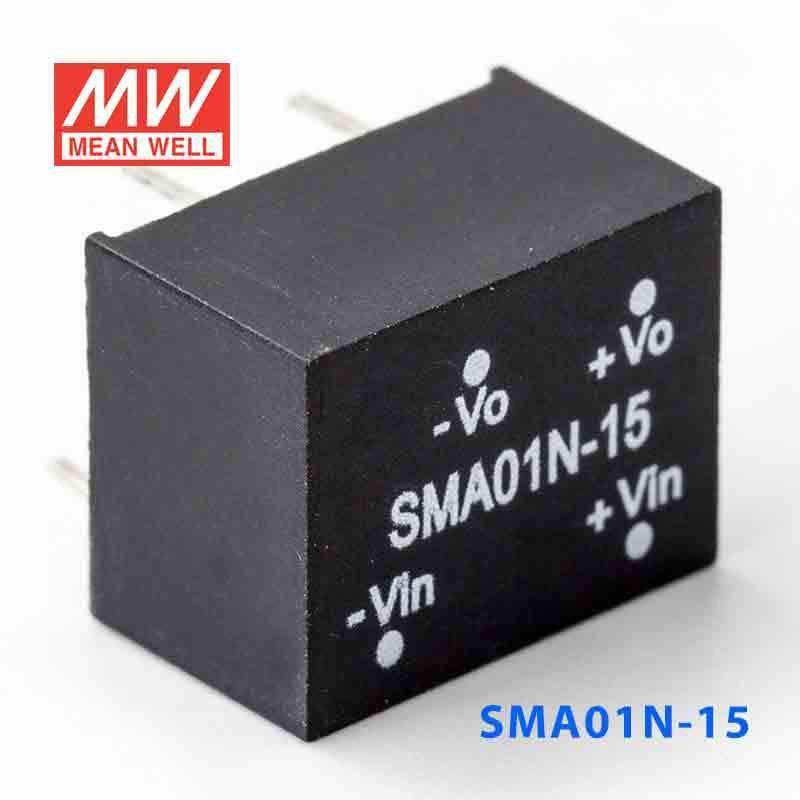

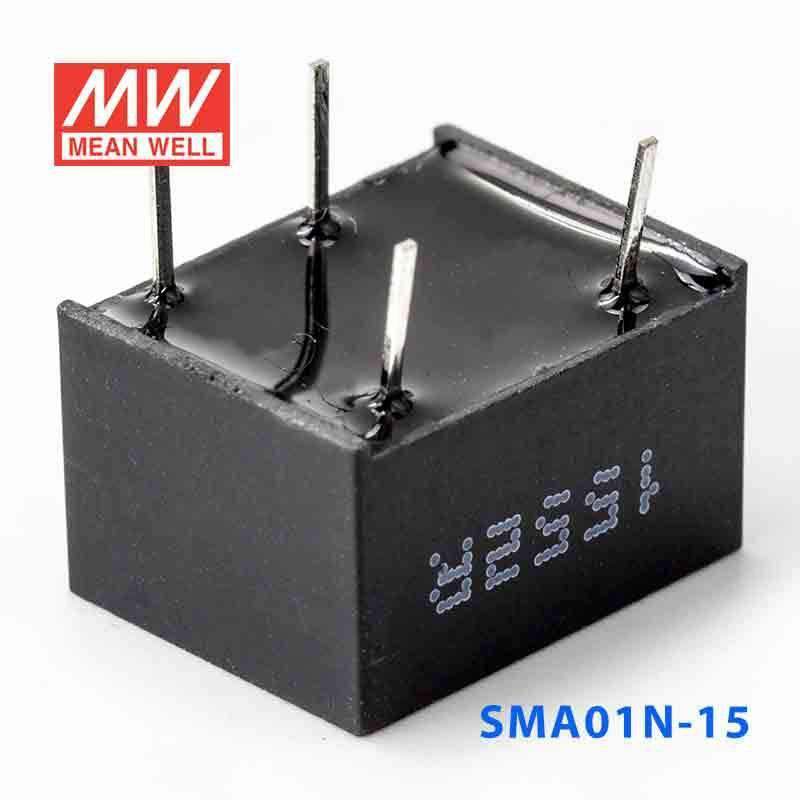

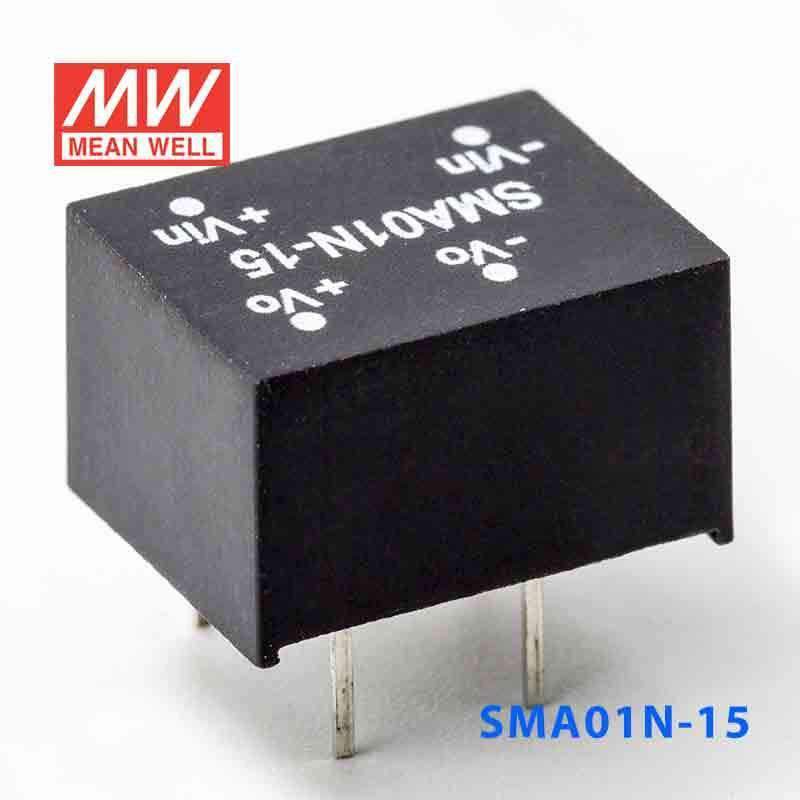

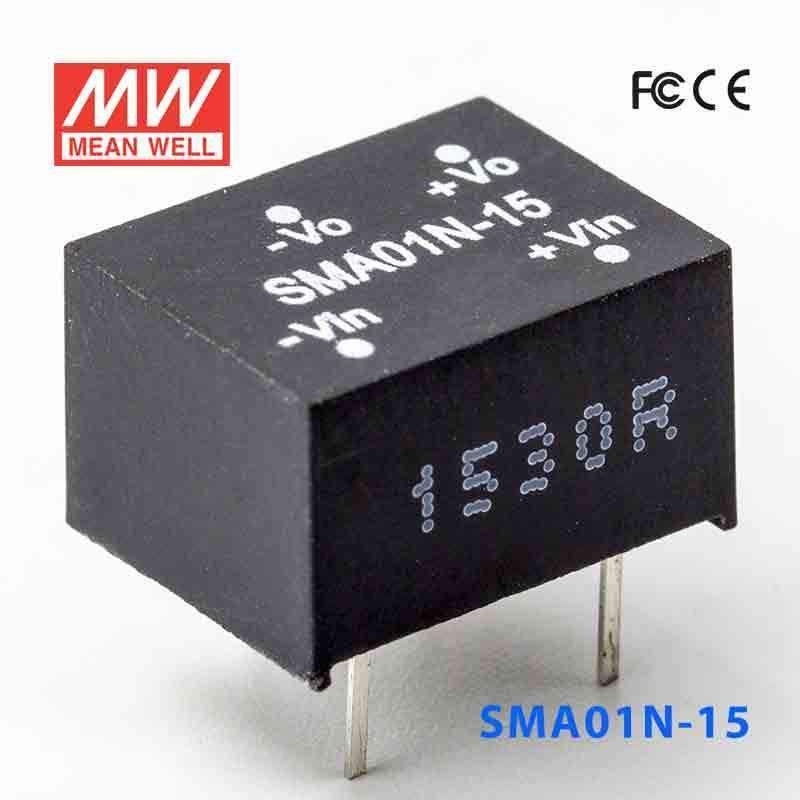

Mean Well SMA01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out
The SMA01N is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE ℃ -55 ~ +125 ℃ ± , 10 ~ 95% RH ℃ ) 0.05% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes (0 ~ 50 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSMA Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.5 in
-
Width0.4 in
-
Height0.3 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the SMA01N-15 for a low-power 15V analog or interface circuit?
Yes, it is a constant-voltage 15V converter rated for 1W, which suits low-power analog, interface, or control circuits that require a fixed 15V rail. The input range is 21.6~26.4V, so it fits equipment operating in that range.
Is this converter suitable for a compact 15V rail in industrial monitoring equipment?
Its 12.7 x 10.16 x 7.62 mm package and 0.0017 kg weight make it practical where board space is limited. The load still needs to remain within the 15V, 0.07A, and 1W output limits.
Can the SMA01N-15 be used in embedded automation hardware that starts from a 24V-class source?
The specified input window is 21.6~26.4V, so it is intended for systems operating in that range and needing a regulated 15V output. With a 1W rating, it is best for small auxiliary rails rather than larger 15V devices.
How does the SMA01N-15 compare with the other SMA01N versions?
The series includes SMA01N-05 at 1W, 5V, 200A; SMA01N-09 at 1W, 9V, 110A; SMA01N-12 at 1W, 12V, 0.08A; and SMA01N-15 at 1W, 15V, 0.07A. This unit is the 15V option for applications that need that output from a 21.6~26.4V input.
Is the SMA01N-15 suitable for outdoor cabinets or high-temperature equipment?
The operating temperature range is -40C to +90C, which supports wide thermal conditions in industrial equipment. However, the specs do not list an IP rating, so direct outdoor exposure or water-ingress resistance cannot be confirmed from the provided data.
