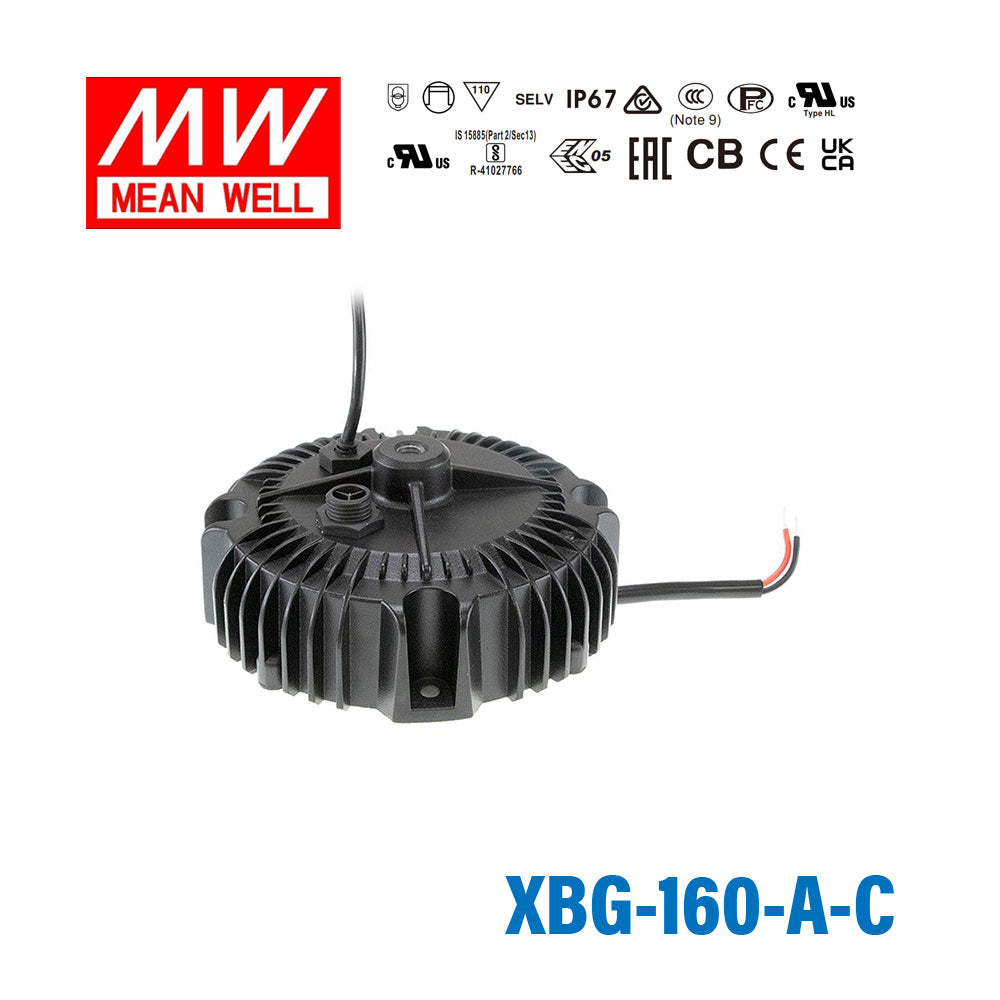

Mean Well XBG-160-A-C Power Supply 160W - Adjustable
$82.27 USD
Unit price /
Unavailable
Description
Description
Features
| Full power output at 70~100% constant current range operation |
| Wide input range 90~305VAC with active PFC function |
| Metal housing design with IP67 |
| Multiple dimming functions: 3 in 1(0-10V/PWM/Resistor) |
| Dimming circuit with isolated for latest safety regulation |
| Surge protection with 6KV/4KV |
| Typical lifetime>50000 hours and 5 years warranty |
| AC input cable with connector for flexible installatiom |
General Specification
| AC input voltage range | 90~305VAC 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| DC adjustment range | 83%~130% rated current |
| Over power protection | 105%~150% |
| Over voltage protection | upto 130% rated voltage |
| Short circuit protection | Hiccup mode or Constant current limiting |
| Withstand voltage | I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+85°C |
| Safety standards | BS EN/EN61347-1, BS EN/EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJOW 17AWG |
| Dimension (DxH) | φ130x56 |
| Packing | 16pcs/14.8Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
