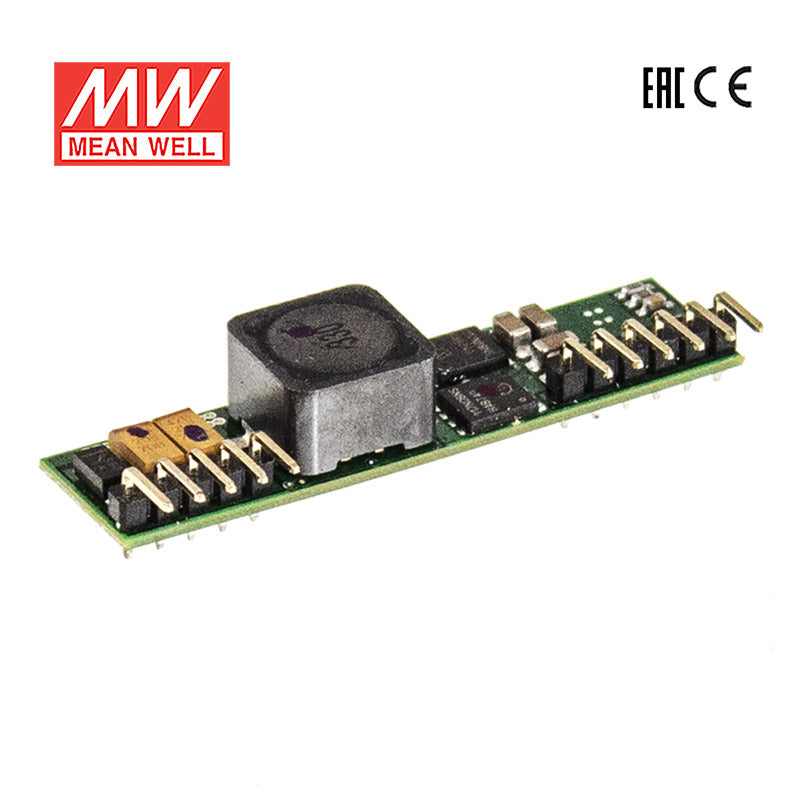

Mean Well NID35-24 DC-DC Converter - 36W - 30~53V in 24V out 1.5A
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 96%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x0.512"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNID Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage30V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width0.51 in
-
Height0.43 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
Can I use the NID35-24 for 24V industrial sensors or PLC-side devices?
Yes, if the equipment needs a constant-voltage 24V output and the total load stays within 36W and 1.5A. That makes it suitable for lighter 24V control and sensing loads rather than higher-current 24V equipment. The converter is intended for regulated 24V electronics, not constant-current applications.
Is the NID35-24 suitable for a small 24V automation subsystem?
It can fit a small 24V automation section when the total demand remains at or below 36W and 1.5A. Its compact 50.8 × 13.0 × 11.0 mm dimensions also help in tight assemblies. This model is best for lower-power 24V loads, not larger 24V devices with higher current demand.
Can the NID35-24 be used where the source voltage is in the 30 to 53V range?
Yes, its specified input range is 30 to 53V. It regulates that input to a constant 24V output with up to 1.5A and 36W available. That makes it relevant where a higher input rail must be converted to a lower, stable 24V supply.
What are the differences between the NID35-24 and the other NID35 versions?
The NID35-24 is rated 36W at 24V and 1.5A, with a 30 to 53V input range. Other NID35 models are NID35-12 at 34.8W, 12V, 2.9A; NID35-15 at 36W, 15V, 2.4A; and NID35-5 at 17.5W, 5V, 3.5A. The family differs by output voltage, output current, wattage, and in this case input range as well.
Is the NID35-24 OK for cold or hot environments, and does it have outdoor protection?
The operating temperature specification is -30°C to +85°C, so it is rated across a wide temperature span. The listed data does not include an IP rating. That means the temperature range is provided, but outdoor or water-exposed suitability is not specified here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NID35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID35-5 DC-DC Converter - 17.5W - 10.5~53V in 5V out 3.5A | 17.5W | 5V | 3.5A | Indoor | $11.65 | View |
| Mean Well NID35-15 DC-DC Converter - 36W - 20~53V in 15V out 2.4A | 36W | 15V | 2.4A | Indoor | $11.65 | View |
| Mean Well NID35-12 DC-DC Converter - 34.8W - 20~53V in 12V out 2.9A | 34.8W | 12V | 2.9A | Indoor | $11.65 | View |
