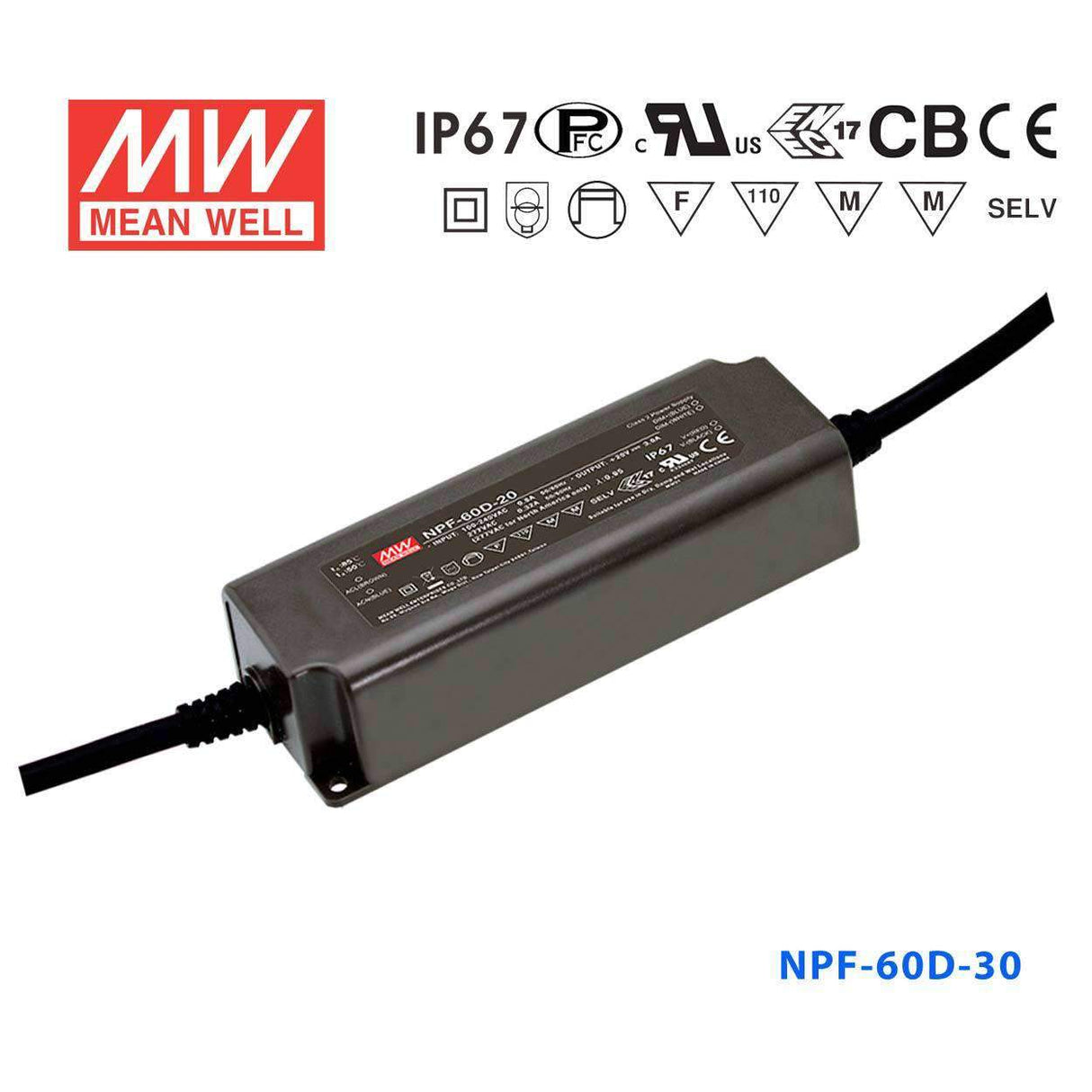

Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable
The NPF-60D is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What dimming inputs does the NPF-60D-30 accept?
The NPF-60D-30 includes built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control simultaneously, eliminating the need for external dimming accessories.
Can the NPF-60D-30 power dimmable 30V LED modules in outdoor architectural uplighting?
Yes. The NPF-60D-30 delivers 60W at 30V with a constant current of 2A and a CC range of 18–30V. Its IP67 rating and -40°C to +85°C operating range make it appropriate for outdoor architectural uplighting fixtures where dimming is required.
How does the NPF-60D-30 differ from the NPF-60-30?
The NPF-60D-30 and NPF-60-30 are electrically identical (60W, 30V, 2A, IP67, CC range 18–30V). The NPF-60D-30 adds built-in 3-in-1 dimming; the NPF-60-30 is a fixed-output constant-current driver.
Is the NPF-60D-30 compatible with 0–10V dimming systems commonly used in commercial buildings?
Yes. The NPF-60D-30’s built-in 3-in-1 dimming natively accepts 0–10V analog signals, which is the standard dimming protocol for most commercial building automation and lighting control systems.
Can the NPF-60D-30 be installed in a wet outdoor location without a separate enclosure?
Yes. With an IP67 waterproof rating and an operating range of -40°C to +85°C, the NPF-60D-30 is designed for direct outdoor installation in wet or humid environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | $30.83 | View |
| Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable | 60W | 48V | 1.25A | IP67 | $28.70 | View |
| Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | $30.83 | View |
| Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | $30.83 | View |
| Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | $32.74 | View |
| Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | $32.74 | View |
| Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $30.83 | View |
