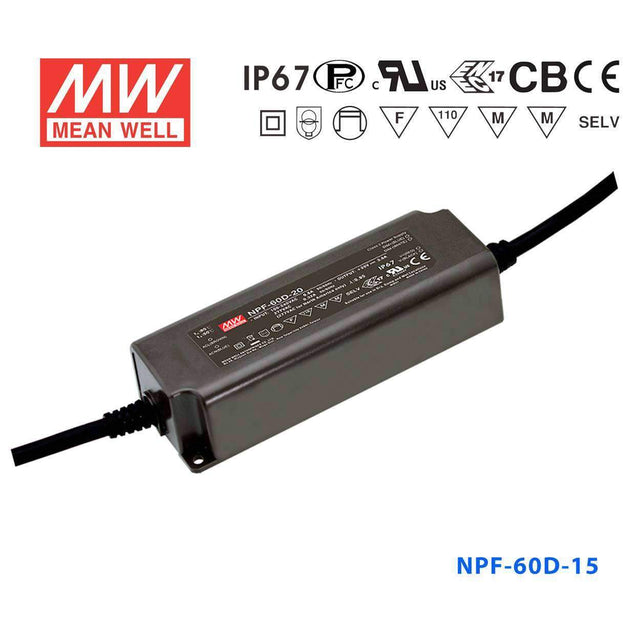

Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A
The NPF-60D is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 15V
- ✓ Rated output current: 4A
- ✓ 3-in-1 dimming (0–10V / PWM / resistance)
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What dimming interfaces does the NPF-60D-15 accept?
The NPF-60D-15 supports built-in 3-in-1 dimming: PWM signal, 0–10V analog, and resistance control. All three interfaces are built in with no additional hardware required.
Can the NPF-60D-15 power dimmable 15V LED grow lights in a greenhouse?
Yes. The NPF-60D-15 delivers 60W at 15V with a constant current of 4A, and its built-in dimming allows spectrum intensity control for plant growth applications. Its IP67 rating handles the humid greenhouse environment.
How does the NPF-60D-15 compare to the NPF-60D-12 and NPF-60D-20?
All three are 60W dimmable IP67 drivers with 3-in-1 dimming, differing only in output voltage and current: NPF-60D-12 at 12V and 5A, NPF-60D-15 at 15V and 4A, NPF-60D-20 at 20V and 3A. Select the model whose output voltage matches your LED string’s rated forward voltage.
What is the CC voltage range of the NPF-60D-15?
The NPF-60D-15 regulates constant current between 9V and 15V output. The driver maintains 4A output current for any LED load whose forward voltage falls within this 9–15V window.
Is the NPF-60D-15 rated for outdoor wet environments?
Yes. With IP67 certification and a -40°C to +85°C operating range, the NPF-60D-15 can be installed outdoors in wet locations without an additional weatherproof enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable 1.12A | 60.48W | 54V | 1.12A | IP67 | $30.83 | View |
| Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A | 60W | 48V | 1.25A | IP67 | $28.70 | View |
| Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A | 60.06W | 42V | 1.43A | IP67 | $30.83 | View |
| Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A | 60.12W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable 2A | 60W | 30V | 2A | IP67 | $30.83 | View |
| Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable 2.5A | 60W | 24V | 2.5A | IP67 | $30.83 | View |
| Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable 3A | 60W | 20V | 3A | IP67 | $32.74 | View |
| Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable 5A | 60W | 12V | 5A | IP67 | $30.83 | View |
