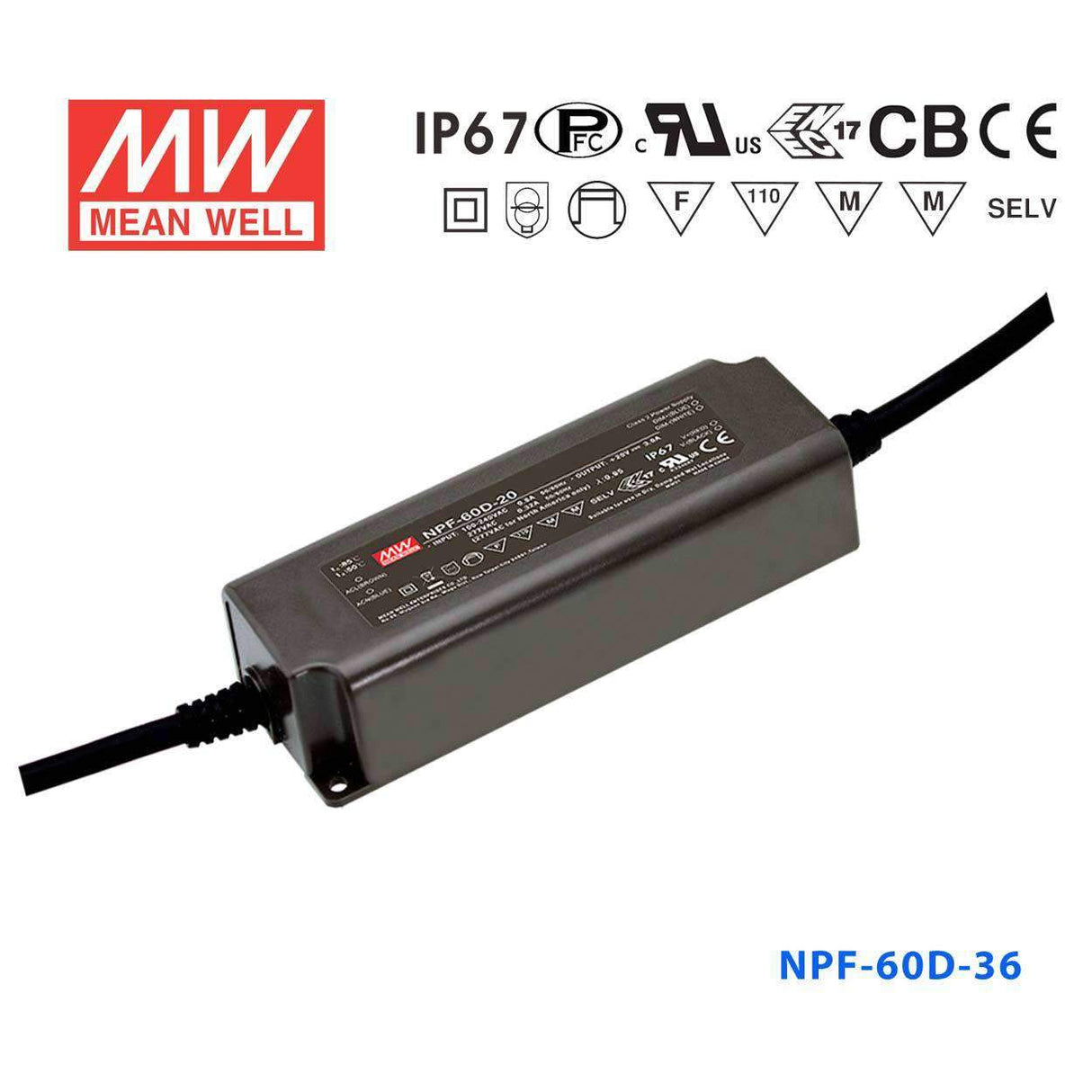

Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable
The NPF-60D is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60.12 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What dimming signals does the NPF-60D-36 support?
The NPF-60D-36 features built-in 3-in-1 dimming that accepts PWM, 0–10V analog, and resistance control inputs. This allows the driver to integrate directly with most commercial dimming controllers and DALI gateways that output 0–10V.
Is the NPF-60D-36 suitable for dimmable industrial area lighting using 36V LED modules?
Yes. The NPF-60D-36 delivers 60.12W at 36V with a constant current of 1.67A and a CC voltage range of 21–36V, matching 36V constant-current LED modules used in industrial area or bay lighting where dimming is desired for energy management.
What is the key difference between the NPF-60D-36 and the NPF-90D-36?
Both are dimmable 36V IP67 drivers with built-in 3-in-1 dimming, but the NPF-60D-36 is rated at 60.12W and 1.67A (dimensions 150.0 × 53.0 × 35.0 mm), while the NPF-90D-36 is rated at 90W and 2.5A (dimensions 171.0 × 63.0 × 37.5 mm). Choose based on total LED load wattage.
Can the NPF-60D-36 withstand outdoor installation in coastal salt-air environments?
The NPF-60D-36 is rated IP67, providing a fully sealed enclosure against dust and temporary water immersion. While IP67 addresses water and dust ingress, for long-term coastal salt-air exposure additional corrosion protection measures for terminal connections are recommended.
Does the NPF-60D-36 require a grounded enclosure?
No. The NPF-60D-36 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, so protective earth grounding is not required.
