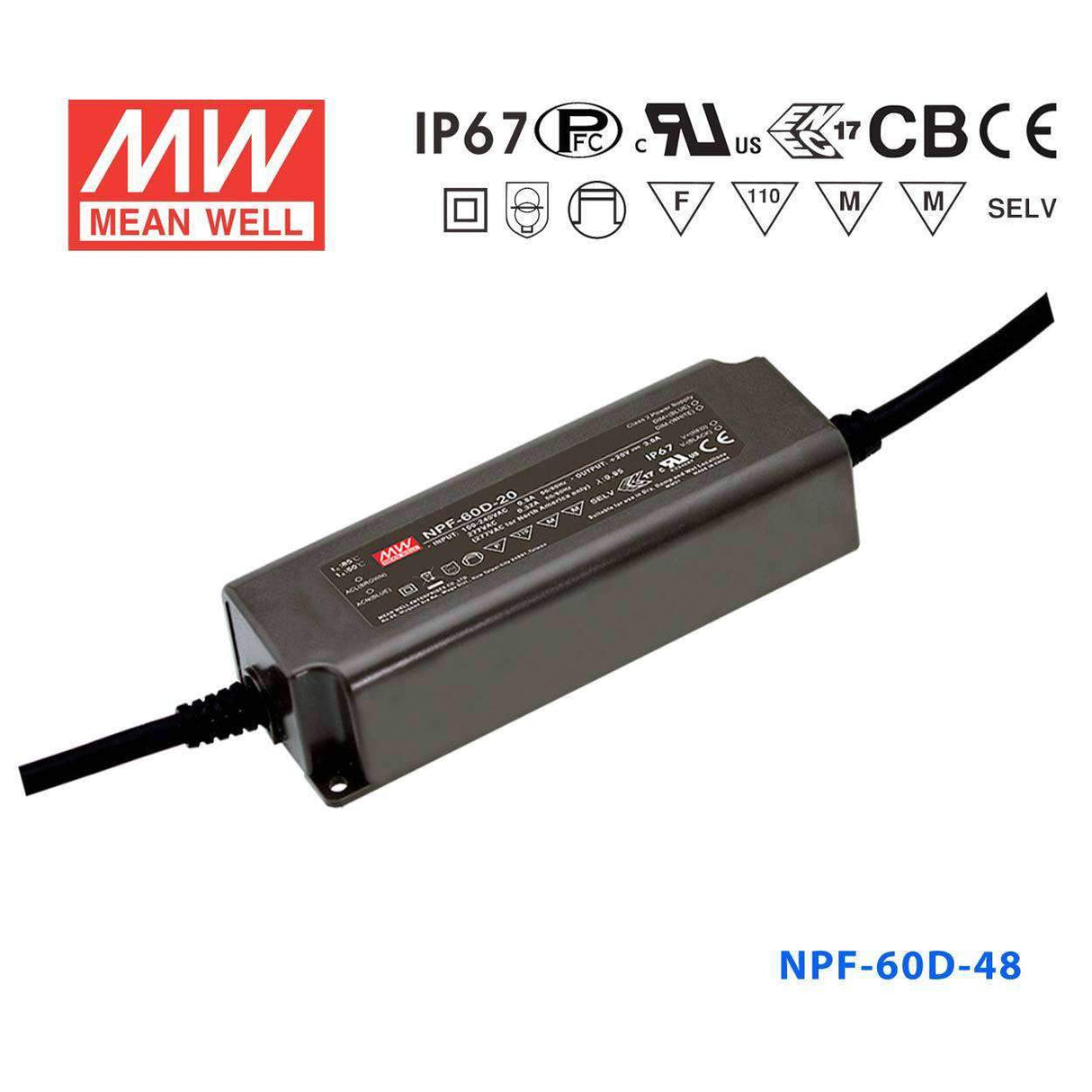

Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable
The NPF-60D is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 150mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What dimming methods does the NPF-60D-48 support?
The NPF-60D-48 has built-in 3-in-1 dimming, accepting PWM signal, 0–10V analog, and resistance control. All three are natively integrated with no external dimming hardware required.
Can the NPF-60D-48 power dimmable 48V LED modules in industrial warehouse lighting?
Yes. The NPF-60D-48 delivers 60W at 48V with a constant current of 1.25A and a CC voltage range of 28–48V, covering 48V LED high-bay or warehouse modules. Its wide input range of 90–305VAC supports standard and industrial mains supplies.
What distinguishes the NPF-60D-48 from the NPF-90D-48?
Both are dimmable 48V IP67 drivers with built-in 3-in-1 dimming, but they differ in power: NPF-60D-48 is 60W at 1.25A (150.0 × 53.0 × 35.0 mm, 0.49 kg), while NPF-90D-48 is 90.24W at 1.88A (171.0 × 63.0 × 37.5 mm, 0.77 kg). Select based on the wattage the LED load requires.
Is the NPF-60D-48 rated for direct outdoor installation in rainy climates?
Yes. The NPF-60D-48 carries an IP67 rating for full dust protection and resistance to temporary water immersion, and its -40°C to +85°C operating range covers outdoor wet and cold conditions.
Does the NPF-60D-48 require a protective earth ground?
No. The NPF-60D-48 uses a Class II fully isolated plastic case without a functional ground (FG) terminal, so no protective earth connection is required.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60D Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable | 60.48W | 54V | 1.12A | IP67 | $30.83 | View |
| Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable | 60.06W | 42V | 1.43A | IP67 | $30.83 | View |
| Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable | 60.12W | 36V | 1.67A | IP67 | $32.74 | View |
| Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable | 60W | 30V | 2A | IP67 | $30.83 | View |
| Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable | 60W | 24V | 2.5A | IP67 | $30.83 | View |
| Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable | 60W | 20V | 3A | IP67 | $32.74 | View |
| Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable | 60W | 15V | 4A | IP67 | $32.74 | View |
| Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $30.83 | View |
