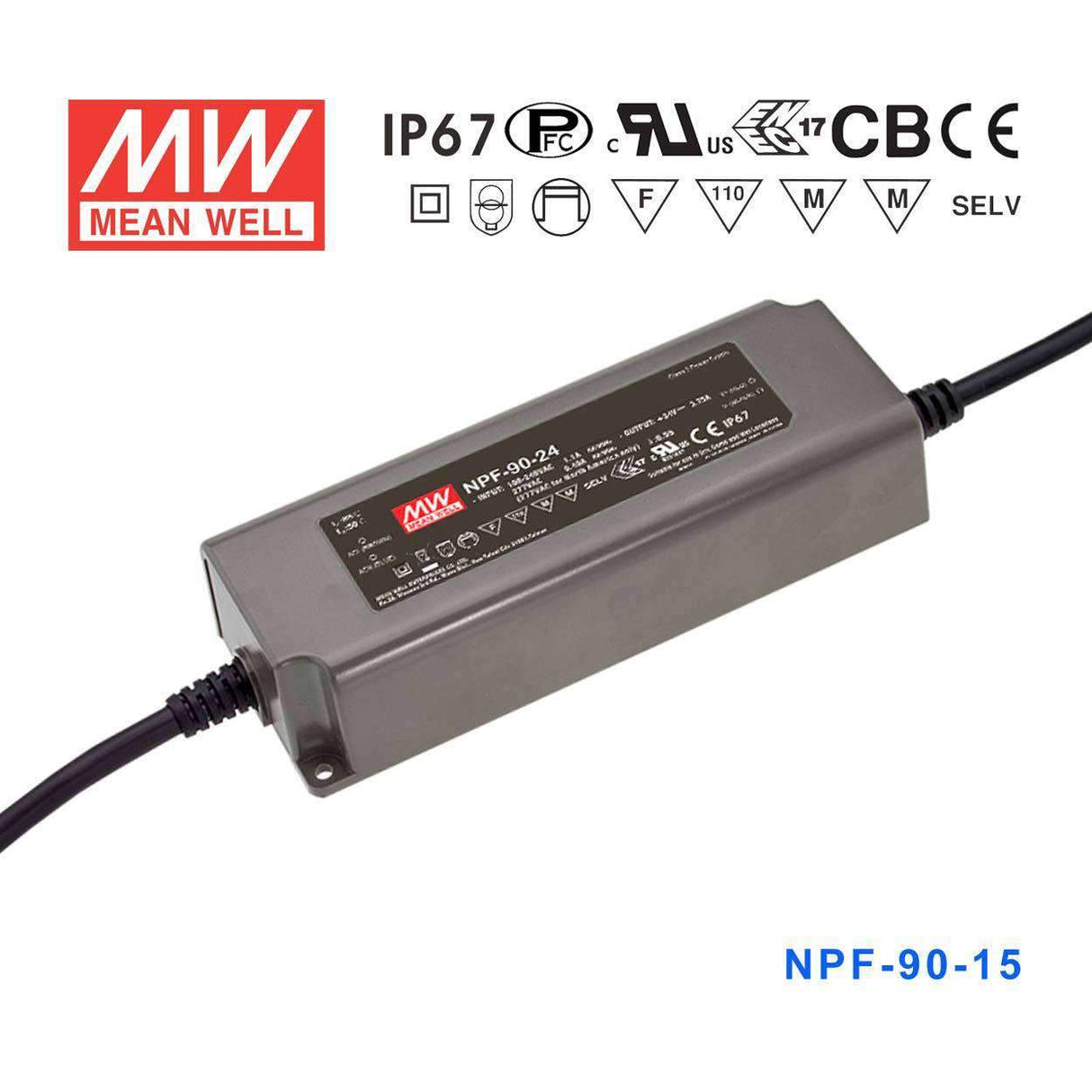

Mean Well NPF-90-15 Power Supply 90W 15V
The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Is the NPF-90-15 suitable for wet outdoor environments such as irrigation area lighting?
Yes. The NPF-90-15 carries an IP67 rating, making it fully protected against dust and temporary water immersion. Its operating temperature range of -40°C to +85°C further supports outdoor installation in varying climatic conditions.
Can the NPF-90-15 power multiple 15V LED grow-light modules in a commercial greenhouse?
The NPF-90-15 delivers 90W at 15V with a constant output current of 6A, enough to drive multiple 15V LED grow-light modules with a combined load up to 90W. Its 90–305VAC input is compatible with both single-phase and three-phase facility wiring.
How does the NPF-90-15 compare to other 15V models in the NPF series?
The 15V NPF options span: NPF-40-15 at 40.08W and 2.67A, NPF-60-15 at 60W and 4A, NPF-90-15 at 90W and 6A, and NPF-120-15 at 120W and 8A. Select the wattage tier that matches the combined LED load with appropriate headroom.
What are the physical dimensions of the NPF-90-15?
The NPF-90-15 measures 171.0 × 63.0 × 37.5 mm and weighs 0.77 kg, which is larger than the 60W NPF series (150.0 × 53.0 × 35.0 mm, 0.49 kg) and should be accounted for when planning enclosure space.
Is there a dimmable variant of the NPF-90-15?
Yes. The NPF-90D-15 shares the same 90W, 15V, 6A, IP67 specifications as the NPF-90-15 and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control.
