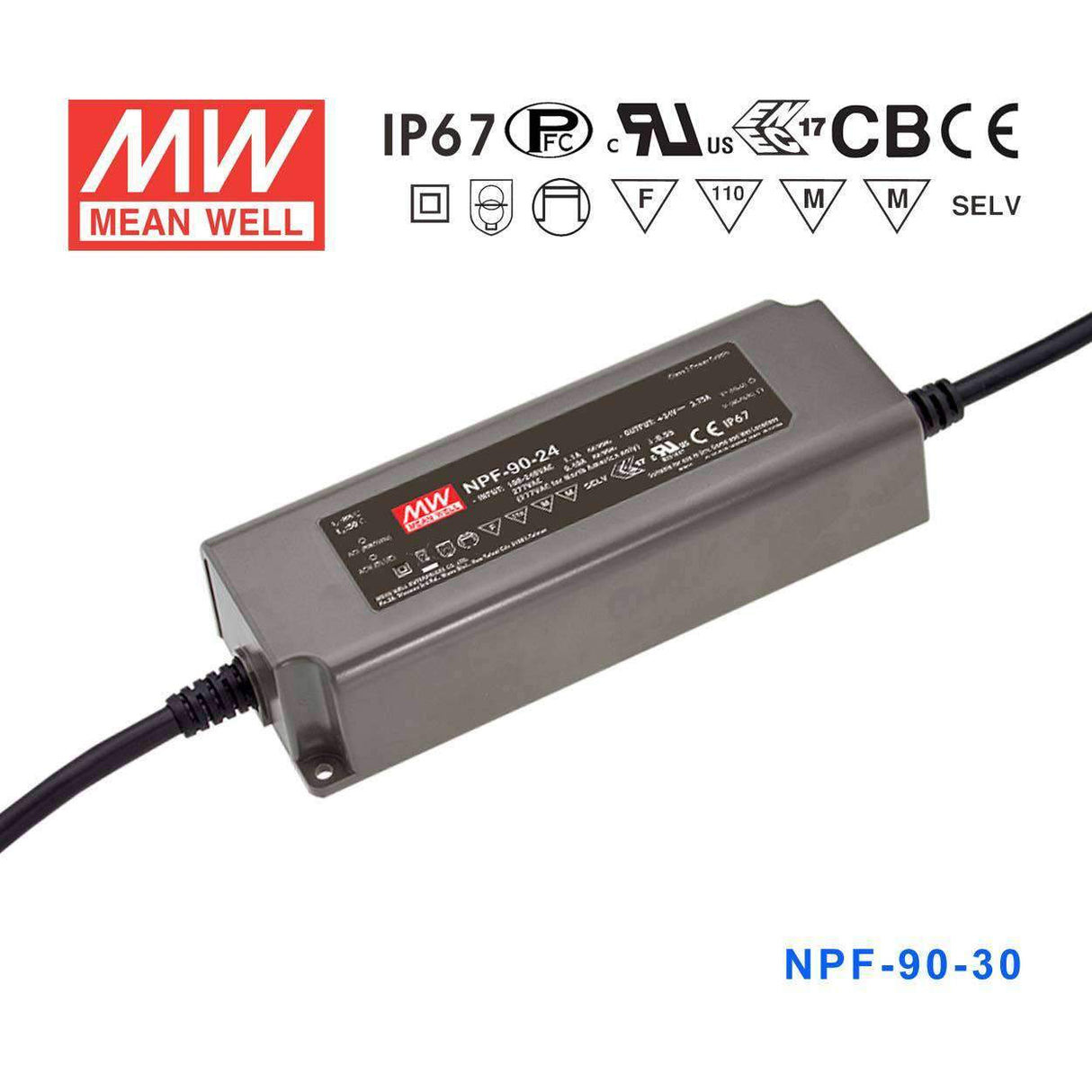

Mean Well NPF-90-30 Power Supply 90W 30V
The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage30 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Is the NPF-90-30 suitable for outdoor waterfront or marina LED lighting?
Yes. The NPF-90-30 is IP67-rated, protecting it against dust and temporary water immersion, and operates across -40°C to +85°C. These characteristics make it a viable choice for marina, pier, or waterfront lighting installations with direct moisture exposure.
Can the NPF-90-30 drive 30V LED street light modules in an urban lighting project?
The NPF-90-30 delivers 90W at 30V with a constant current of 3A and a CC voltage range of 18–30V, matching typical 30V LED street light modules. Its 90–305VAC input accommodates standard street lighting distribution voltages.
How does the NPF-90-30 compare to the NPF-60-30 and NPF-120-30?
At 30V, the NPF series spans: NPF-60-30 at 60W and 2A, NPF-90-30 at 90W and 3A, and NPF-120-30 at 120W and 4A. All share IP67 rating and the same input range; the selection is based solely on the LED load’s wattage requirement.
What is the physical size of the NPF-90-30?
The NPF-90-30 measures 171.0 × 63.0 × 37.5 mm and weighs 0.77 kg, which is approximately 14% larger in each linear dimension than the 60W NPF-60 family.
Does the NPF-90-30 offer dimming?
No. The NPF-90-30 is a fixed-output constant-current driver. The NPF-90D-30 offers the same 90W, 30V, 3A output with built-in 3-in-1 dimming if adjustable output is needed.
