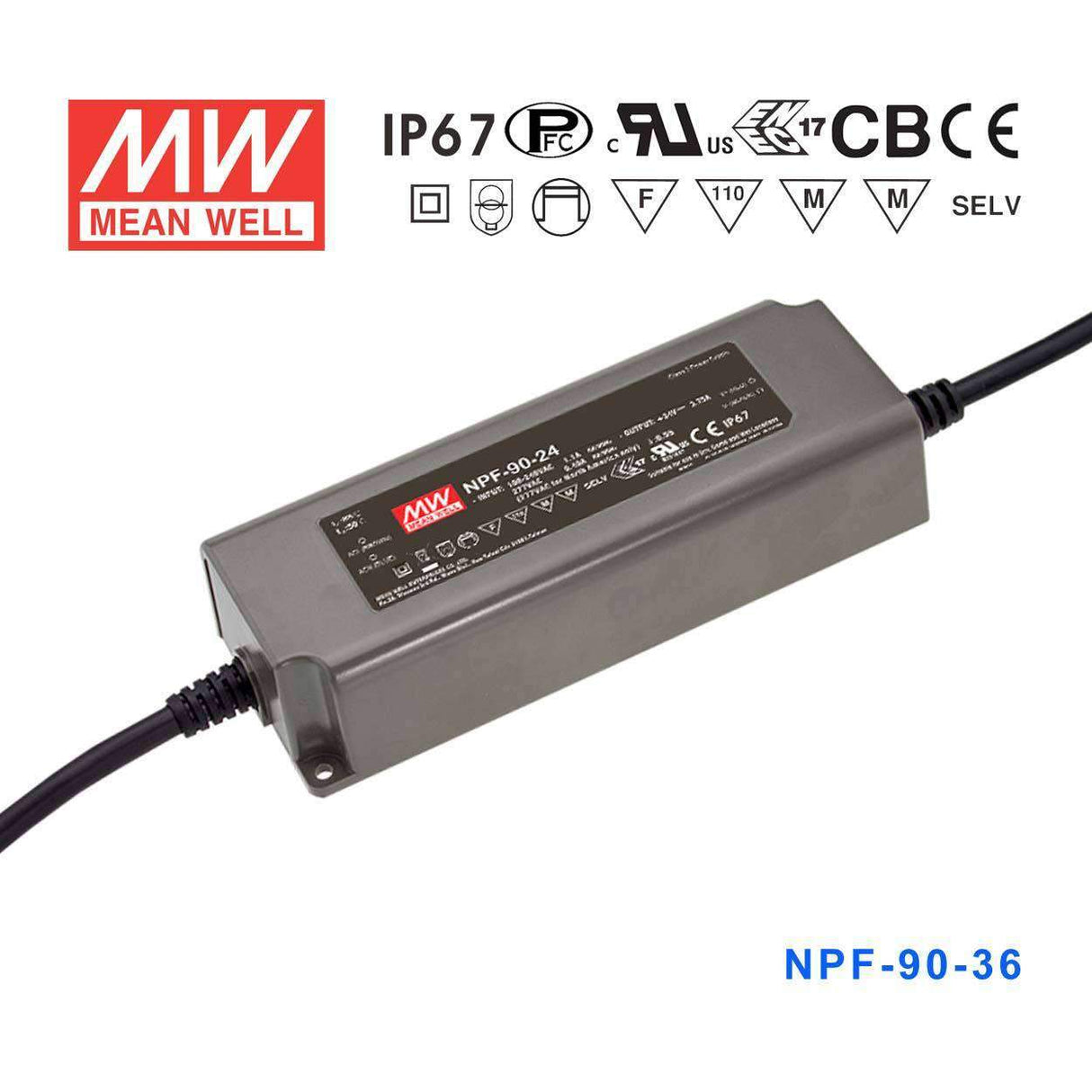

Mean Well NPF-90-36 Power Supply 90W 36V
The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can the NPF-90-36 operate in outdoor environments with sub-zero temperatures?
Yes. The NPF-90-36 is rated for operation from -40°C to +85°C and carries IP67 waterproof protection, making it suitable for outdoor installations exposed to freezing temperatures and precipitation.
Is the NPF-90-36 appropriate for powering 36V LED modules in sports field perimeter lighting?
The NPF-90-36 delivers 90W at 36V with a constant current of 2.5A and a CC voltage range of 21–36V, which suits 36V LED modules used in sports field perimeter or pathway lighting where long cable runs benefit from higher voltage to reduce current losses.
How does the NPF-90-36 compare to the NPF-60-36 and NPF-120-36?
The 36V NPF variants are: NPF-60-36 at 60.12W and 1.67A (150.0 × 53.0 × 35.0 mm), NPF-90-36 at 90W and 2.5A (171.0 × 63.0 × 37.5 mm), and NPF-120-36 at 122.4W and 3.4A. Select based on total LED load wattage.
Is there a dimmable version of the NPF-90-36?
Yes. The NPF-90D-36 matches the NPF-90-36 electrically (90W, 36V, 2.5A, IP67) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control.
What certifications does the NPF-90-36 carry?
The NPF-90-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, and includes a 5-year manufacturer warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-90 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-90-24 Power Supply 90W 24V | 90W | 24V | 3.75A | IP67 | $43.97 | View |
| Mean Well NPF-90-54 Power Supply 90W 54V | 90.18W | 54V | 1.67A | IP67 | $42.63 | View |
| Mean Well NPF-90-48 Power Supply 90W 48V | 90.24W | 48V | 1.88A | IP67 | $42.63 | View |
| Mean Well NPF-90-42 Power Supply 90W 42V | 90.3W | 42V | 2.15A | IP67 | $42.63 | View |
| Mean Well NPF-90-30 Power Supply 90W 30V | 90W | 30V | 3A | IP67 | $42.63 | View |
| Mean Well NPF-90-20 Power Supply 90W 20V | 90W | 20V | 4.5A | IP67 | $42.63 | View |
| Mean Well NPF-90-15 Power Supply 90W 15V | 90W | 15V | 6A | IP67 | $42.63 | View |
| Mean Well NPF-90-12 Power Supply 90W 12V | 90W | 12V | 7.5A | IP67 | $41.14 | View |
