Can the NPF-90-42 be installed outdoors without an additional housing?

Yes. The NPF-90-42 carries an IP67 waterproof rating, protecting it against dust and temporary water immersion, and operates from -40°C to +85°C. These specifications support direct outdoor installation without a secondary enclosure.

What LED lighting applications suit the NPF-90-42?

The NPF-90-42 delivers 90.3W at 42V with a constant current of 2.15A and a CC voltage range of 25–42V. It is well matched to 42V constant-current LED modules used in high-pole area lighting, outdoor sports field fixtures, or large industrial bay lights where the LED string voltage falls within 25–42V.

How does the NPF-90-42 compare to the NPF-60-42 and NPF-40-42?

At 42V, the NPF series offers: NPF-40-42 at 40.32W and 0.96A, NPF-60-42 at 60.06W and 1.43A, and NPF-90-42 at 90.3W and 2.15A. The NPF-90-42 also has a larger footprint (171.0 × 63.0 × 37.5 mm, 0.77 kg) versus the smaller 40W and 60W models.

Does the NPF-90-42 include dimming capability?

No. The NPF-90-42 is a fixed constant-current output driver. The NPF-90D-42 offers identical electrical specs (90.3W, 42V, 2.15A, IP67) with built-in 3-in-1 dimming.

What is the CC voltage range of the NPF-90-42?

The NPF-90-42 maintains its 2.15A constant current output for LED loads with a forward voltage between 25V and 42V. Loads outside this window will exit the CC regulation zone.

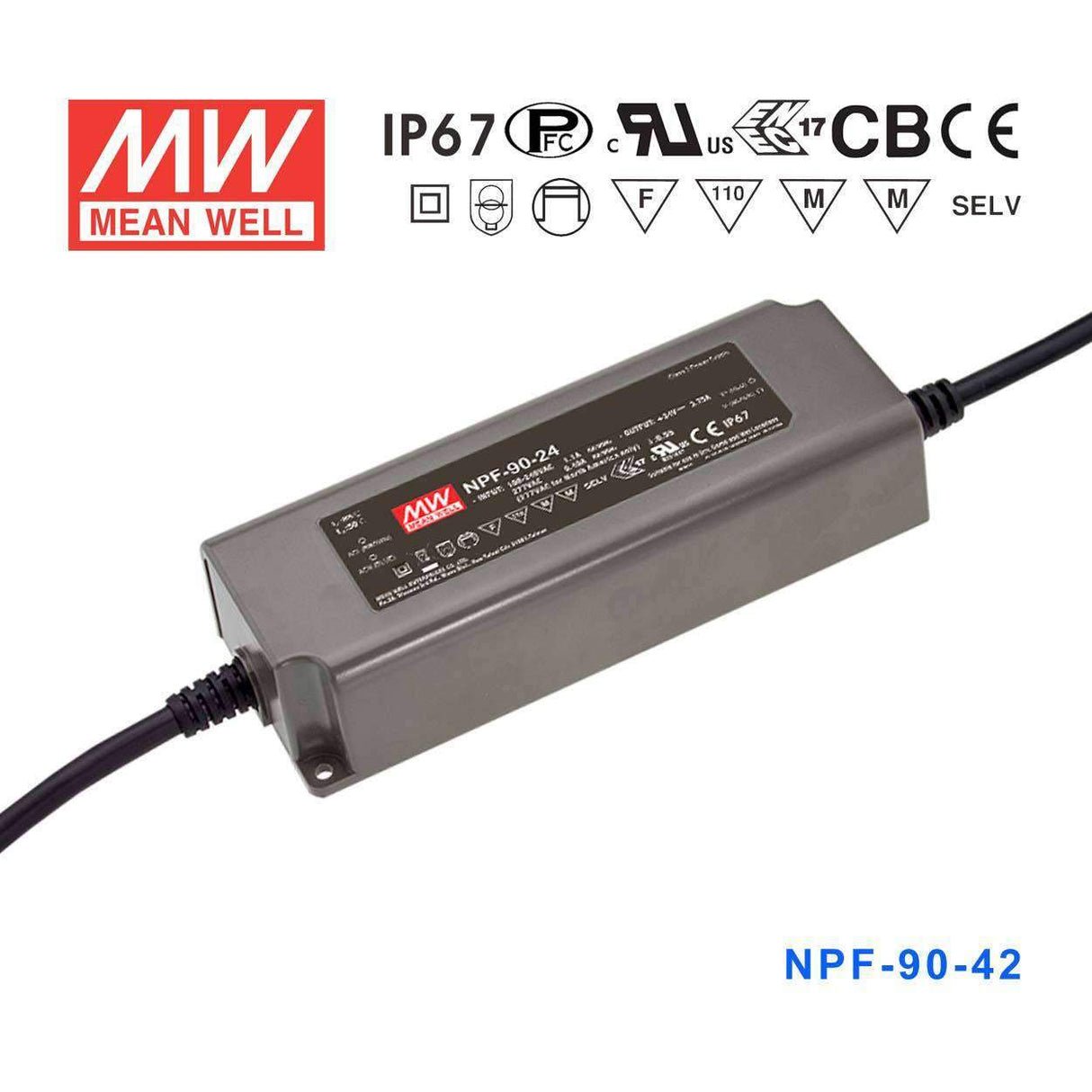

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well NPF-90-42 Power Supply 90W 42V

Name: Mean Well NPF-90-42 Power Supply 90W 42V
Brand: Mean Well
SKU: NPF-90-42
Price: 42.63 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

NPF-90-42

$42.63 USD ~~$147.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

90.3 Watt
Output Voltage

42 Volt
Rated Current

2.15 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

6.73 in
Width

2.48 in
Height

1.48 in
Weight

1.7 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-90-24 Power Supply 90W 24V	90W	24V	3.75A	IP67	$43.97	View
Mean Well NPF-90-54 Power Supply 90W 54V	90.18W	54V	1.67A	IP67	$42.63	View
Mean Well NPF-90-48 Power Supply 90W 48V	90.24W	48V	1.88A	IP67	$42.63	View
Mean Well NPF-90-36 Power Supply 90W 36V	90W	36V	2.5A	IP67	$42.63	View
Mean Well NPF-90-30 Power Supply 90W 30V	90W	30V	3A	IP67	$42.63	View
Mean Well NPF-90-20 Power Supply 90W 20V	90W	20V	4.5A	IP67	$42.63	View
Mean Well NPF-90-15 Power Supply 90W 15V	90W	15V	6A	IP67	$42.63	View
Mean Well NPF-90-12 Power Supply 90W 12V	90W	12V	7.5A	IP67	$41.14	View
