Is the NPF-90-48 rated for outdoor installations in heavy rain regions?

Yes. The NPF-90-48 is IP67-rated for full dust protection and resistance to temporary water immersion, and its operating range of -40°C to +85°C covers harsh outdoor environments including heavy-rain climates.

Can the NPF-90-48 power 48V LED modules in industrial automation lighting?

The NPF-90-48 delivers 90.24W at 48V with a constant current of 1.88A and a CC voltage range of 28–48V, which suits 48V LED modules used in industrial automation or robotics cell lighting. Its 90–305VAC input covers both standard industrial power distributions.

How does the NPF-90-48 differ from the NPF-60-48 and NPF-120-48?

At 48V: NPF-60-48 is 60W at 1.25A (150.0 × 53.0 × 35.0 mm), NPF-90-48 is 90.24W at 1.88A (171.0 × 63.0 × 37.5 mm), and NPF-120-48 is 120W at 2.5A. Select based on the LED load’s total wattage requirement.

Is there a dimmable equivalent to the NPF-90-48?

Yes. The NPF-90D-48 has identical specs (90.24W, 48V, 1.88A, IP67, 171.0 × 63.0 × 37.5 mm) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control.

Does the NPF-90-48 need an earth ground connection?

No. The NPF-90-48 is a Class II device with a fully isolated plastic case and no functional ground (FG) terminal, eliminating the need for a protective earth conductor.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

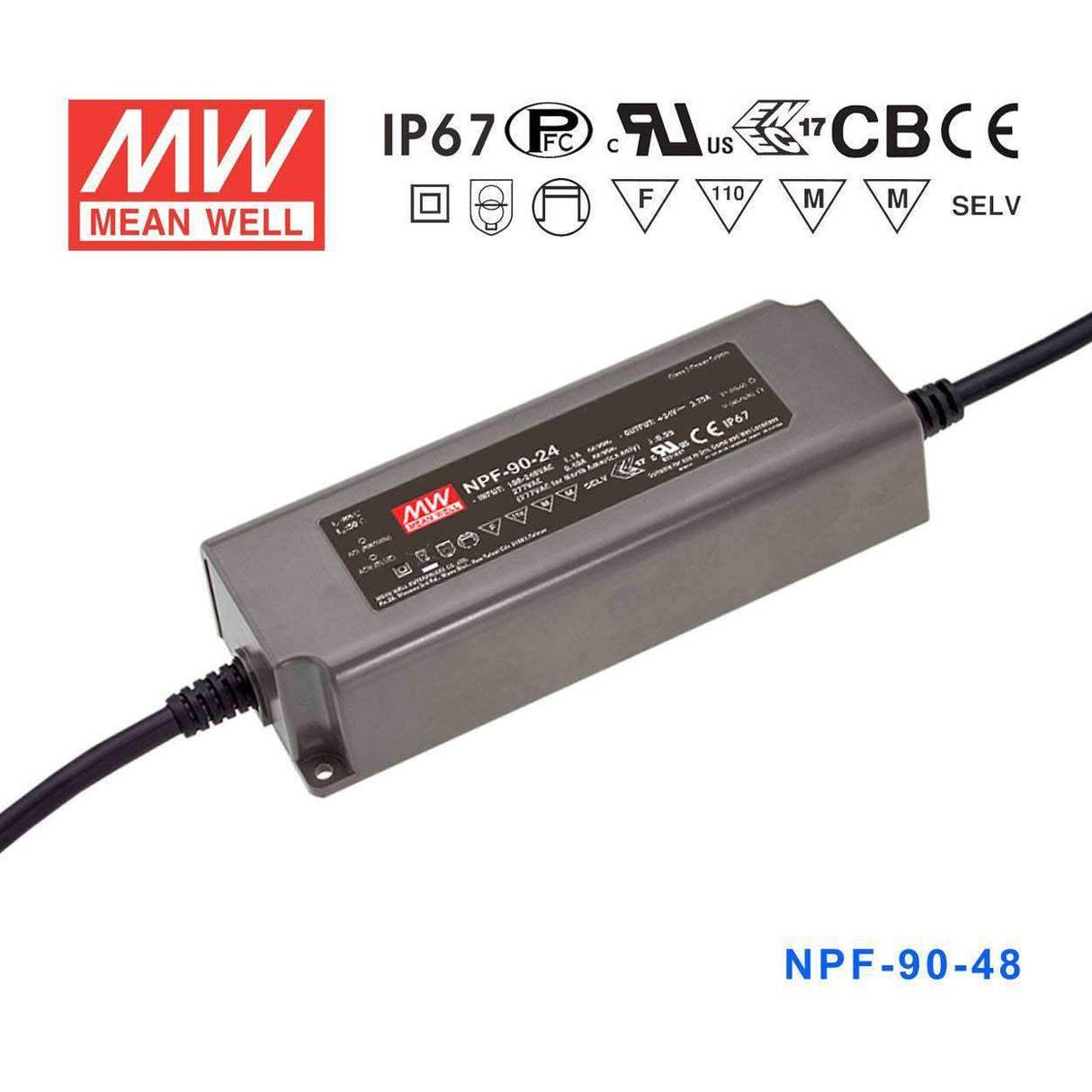

Mean Well NPF-90-48 Power Supply 90W 48V

Name: Mean Well NPF-90-48 Power Supply 90W 48V
Brand: Mean Well
SKU: NPF-90-48
Price: 42.63 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

NPF-90-48

$42.63 USD ~~$147.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

90.24 Watt
Output Voltage

48 Volt
Rated Current

1.88 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

6.73 in
Width

2.48 in
Height

1.48 in
Weight

1.7 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-90-24 Power Supply 90W 24V	90W	24V	3.75A	IP67	$43.97	View
Mean Well NPF-90-54 Power Supply 90W 54V	90.18W	54V	1.67A	IP67	$42.63	View
Mean Well NPF-90-42 Power Supply 90W 42V	90.3W	42V	2.15A	IP67	$42.63	View
Mean Well NPF-90-36 Power Supply 90W 36V	90W	36V	2.5A	IP67	$42.63	View
Mean Well NPF-90-30 Power Supply 90W 30V	90W	30V	3A	IP67	$42.63	View
Mean Well NPF-90-20 Power Supply 90W 20V	90W	20V	4.5A	IP67	$42.63	View
Mean Well NPF-90-15 Power Supply 90W 15V	90W	15V	6A	IP67	$42.63	View
Mean Well NPF-90-12 Power Supply 90W 12V	90W	12V	7.5A	IP67	$41.14	View
