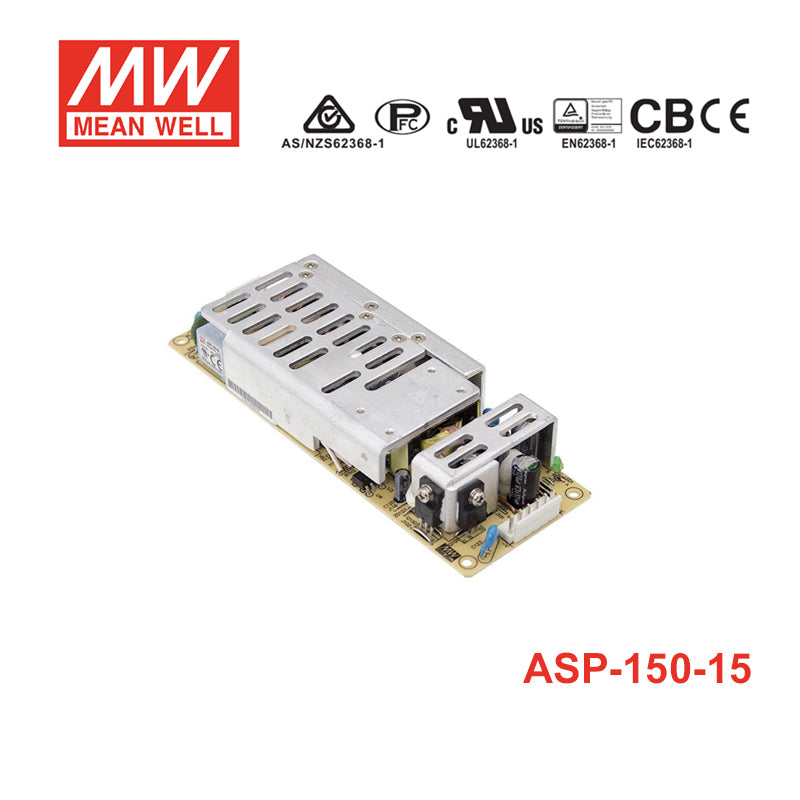

Mean Well ASP-150-15 PCB Switching Power Supply 9.5A

The ASP-150 is a 142.5W Mean Well open-frame power supply (input: 90~264VAC, operating temperature: -20~+60°C).

Key Features

• ✓ Input voltage: 90~264VAC
• ✓ Output voltage (max): 15V
• ✓ Rated output current: 9.5A
• ✓ Operating temperature: -20~+60°C
• ✓ Active PFC — meets international energy efficiency standards
• ✓ Safety certifications: CB, CE, EN, UL
• ✓ 3 year warranty

• Brand
  Mean Well
• Series
  ASP Series
• Power Rating
  142.5 Watt
• Output Voltage
  15 Volt
• Rated Current
  9.5 Ampere
• Input Voltage
  90V~264V
• No of Output
  1
• Dimming Control
  Non Dimmable
• Standards Met
  CB,CE,EN,UL
• Operating Temperature
  -20°C~60°C
• Warranty
  3 Year
• Length
  6.65 in
• Width
  2.39 in
• Height
  1.12 in
• Weight
  0.71 lb
