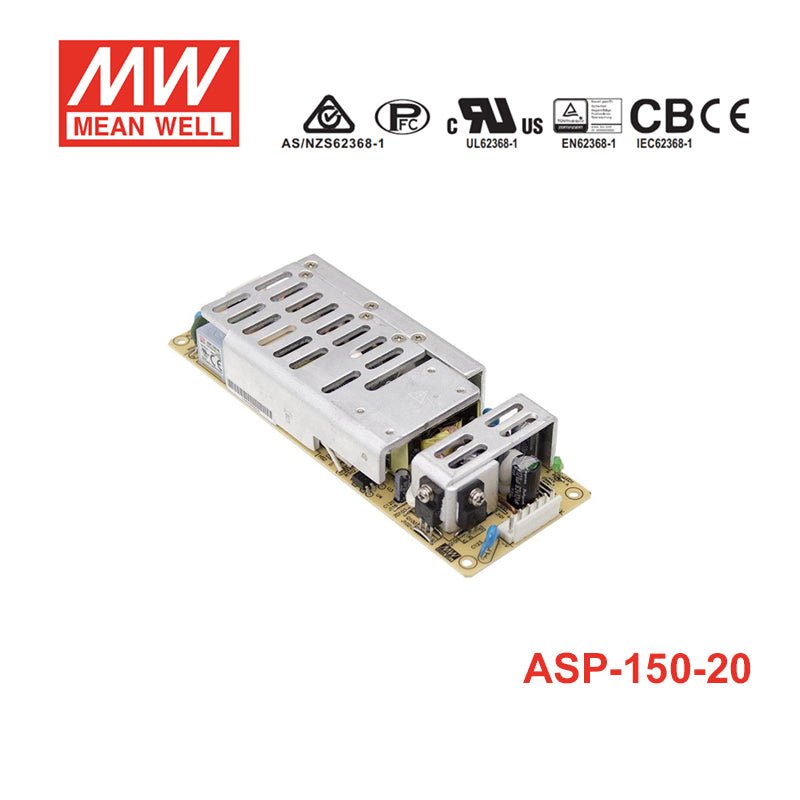

Mean Well ASP-150-20 PCB Switching Power Supply

SKU:
ASP-150-20

$31.48 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
High power density 8.4W/inch³
100% full load burn-in test
No load power consumption<11W@240VAC
ZCS/ZVS technology to reduce power dissipation
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 0.5%
Overload protection Range 105 ~ 135% rated output power
Overload protection Type Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -20 ~ +60 (Refer to "Derating Curve")
Safety standards UL60950-1, CB(IEC60950-1) approved
Dimension (LxWxH) (mm) 169*60.7*28.5mm (L*W*H)
Packing 0.32Kg; 48pcs/15.8Kg/0.79CUFT

Specifications

  • Brand
    Mean Well
  • Series
    ASP Series
  • Power Rating
    150 Watt
  • Output Voltage
    20 Volt
  • Rated Current
    7.5 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    Non Dimmable
  • Standards Met
    CB,CE,EN,UL
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    6.65 in
  • Width
    2.39 in
  • Height
    1.12 in
  • Weight
    0.71 lb
