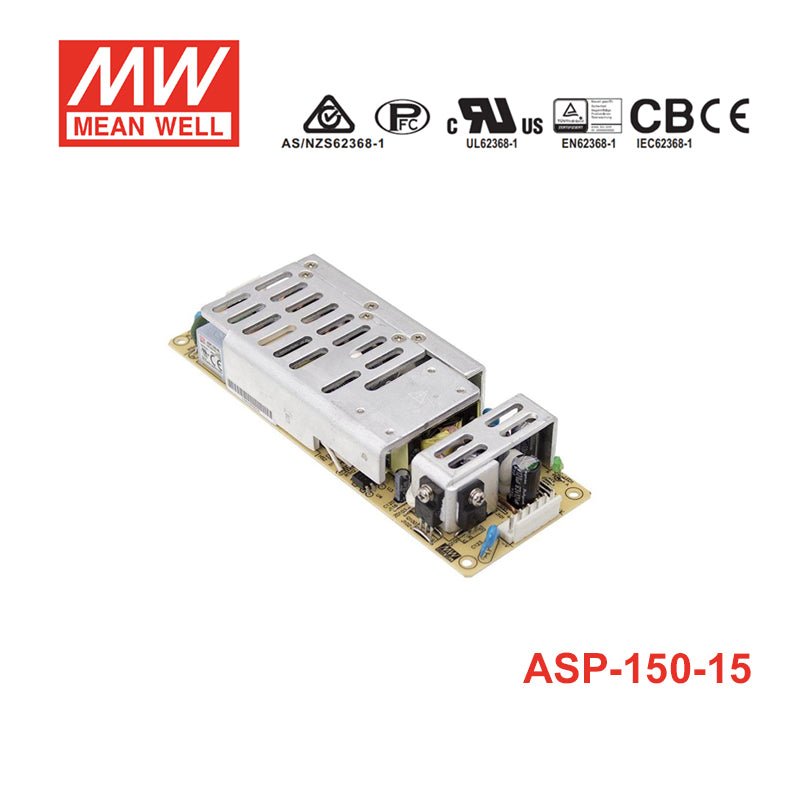

Mean Well ASP-150-15 PCB Switching Power Supply 9.5A
$31.48 USD
Unit price /
Unavailable
Overview
ASP-150-15 is the 15V output model of this series: rated current 9.5A, rated power 142.5W, typical efficiency 88%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- High power density 8.4w/in³
- 100% full load burn-in test
- No load power consumption<1W@240VAC
- ZCS/ZVS technology to reduce power dissipation
- 3 years warranty
Specifications
ASP-150-15Specifications from the official datasheet (2017-07-14 edition)Download datasheet PDF
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 9.5A
- CURRENT RANGE
- 0 ~ 9.5A
- RATED POWER
- 142.5W
- RIPPLE & NOISE (max.)Note.2
- 180mVp-p
- VOLTAGE ADJ. RANGE
- 14 ~ 17V
- VOLTAGE ADJ. RANGE
- Fixed. Can be modified between the range above by factory
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 3000ms, 80ms at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.95/230VAC PF≧0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT (Typ.)
- 2A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 80A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power
- OVERLOAD
- Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.5 ~ 20.25V
- OVER VOLTAGE
- Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- 90℃±10℃(RTH2) detect on heatsink of power transistor
- OVER TEMPERATURE
- Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL60950-1, CB(IEC60950-1) approved
- WITHSTAND VOLTAGE
- I/P-O/P:4.25KVDC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS
- MTBF
- 149.3Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 169*60.7*28.5mm (L*W*H)
- PACKING
- 0.32Kg; 48pcs/15.8Kg/0.79CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)
- 5. Heat Sink HS1,HS3 & HS2,HS3 can not be shorted.
