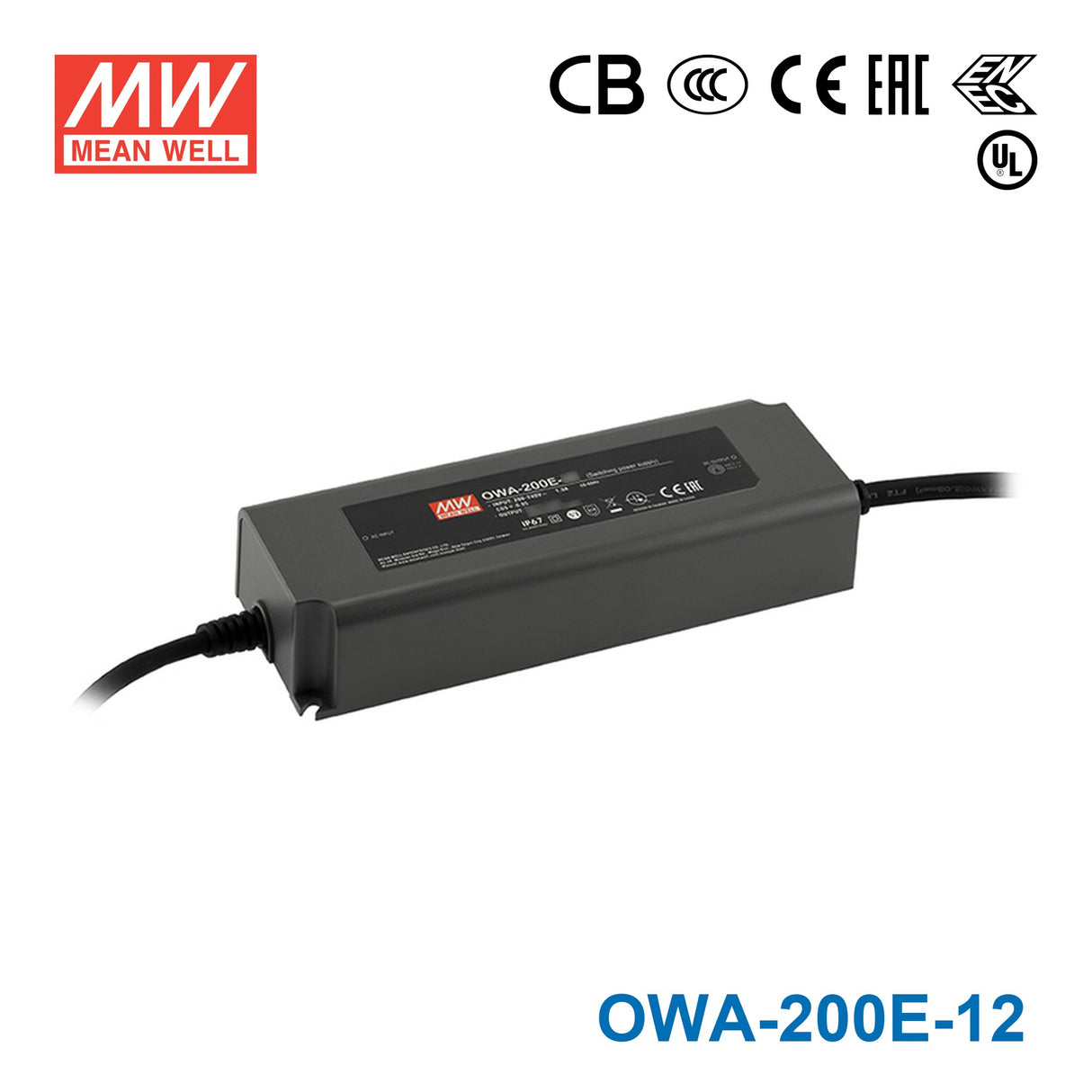

Mean Well OWA-200E-12 Power Supply Moistureproof 180W 12V 15A
The OWA-200E is a 180W Mean Well power supply (input: 180~264VAC, operating temperature: -30~+85°C).
Key Features
- ✓ Input voltage: 180~264VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 15A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -30~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating180 Watt
-
Output Voltage12 Volt
-
Rated Current15 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty5 Year
-
Length4.13 in
-
Width2.68 in
-
Height0.91 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
Can I use the OWA-200E-12 for 12V industrial LED signage or light boxes?
Yes, this model is a constant voltage 12V power supply rated for 180W and 15A, which fits 12V DC LED signage and light box loads that stay within those limits. Its IP67 enclosure also makes it suitable for damp or dust-prone sign installations where a sealed supply is preferred.
Is the OWA-200E-12 suitable for 12V CCTV, access control, or security equipment?
It can be used for 12V security equipment when the connected devices require constant 12V DC and the total load does not exceed 15A or 180W. This is typically a fit for higher-load 12V security systems that need a sealed IP67 supply rather than an open-frame unit.
Can this power supply run 12V embedded or automation equipment inside an industrial enclosure?
Yes, if the equipment is designed for constant 12V DC and the total draw remains within 180W and 15A. The compact 105.0 × 68.0 × 23.0 mm box-type form factor and 0.17 kg weight can also help where enclosure space is limited.
Is the OWA-200E-12 a good choice for 12V outdoor or washdown-prone environments?
It is built for harsher environments because it carries an IP67 waterproof rating and an operating temperature range of -30°C to +85°C. That makes it suitable for outdoor or moisture-exposed use cases where the equipment also needs a 12V constant voltage source.
How does the OWA-200E-12 compare with the other OWA-200E models?
Within the OWA-200E range, the 12V version is rated at 180W and 15A, while the other listed outputs are 20V 10A 200W, 24V 8.3A 200W, 36V 5.55A 200W, 42V 4.75A 200W, 48V 4.17A 200W, and 54V 3.71A 200W. The main selection difference is output voltage, with current changing accordingly across the series.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other OWA-200E Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well OWA-200E-54 Power Supply Moistureproof 200W 54V 3.71A | 200W | 54V | 3.71A | IP67 | $64.73 | View |
| Mean Well OWA-200E-48 Power Supply Moistureproof 200W 48V 4.17A | 200W | 48V | 4.17A | IP67 | $64.73 | View |
| Mean Well OWA-200E-42 Power Supply Moistureproof 200W 42V 4.75A | 200W | 42V | 4.75A | IP67 | $64.73 | View |
| Mean Well OWA-200E-36 Power Supply Moistureproof 200W 36V 5.55A | 200W | 36V | 5.55A | IP67 | $64.73 | View |
| Mean Well OWA-200E-24 Power Supply Moistureproof 200W 24V 8.3A | 200W | 24V | 8.3A | IP67 | $64.73 | View |
| Mean Well OWA-200E-12 Power Supply Moistureproof 200W 20V 10A | 200W | 20V | 10A | IP67 | $64.73 | View |
