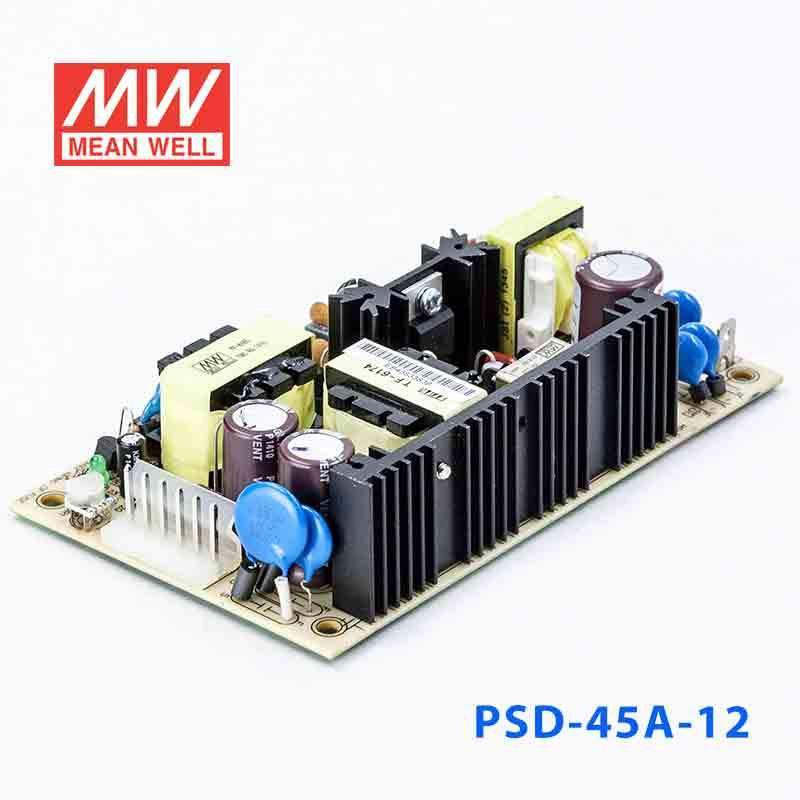

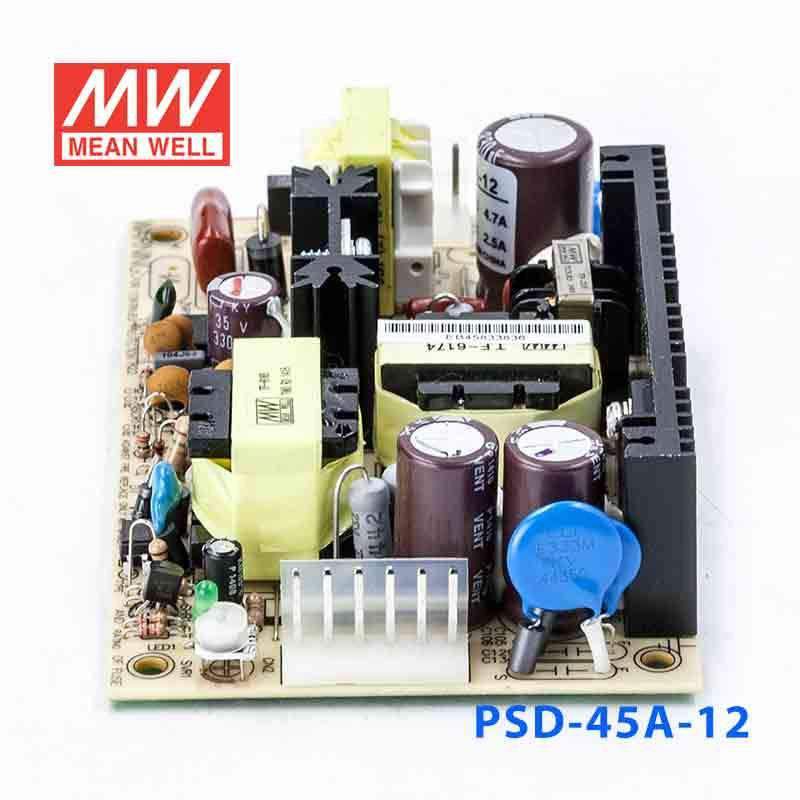

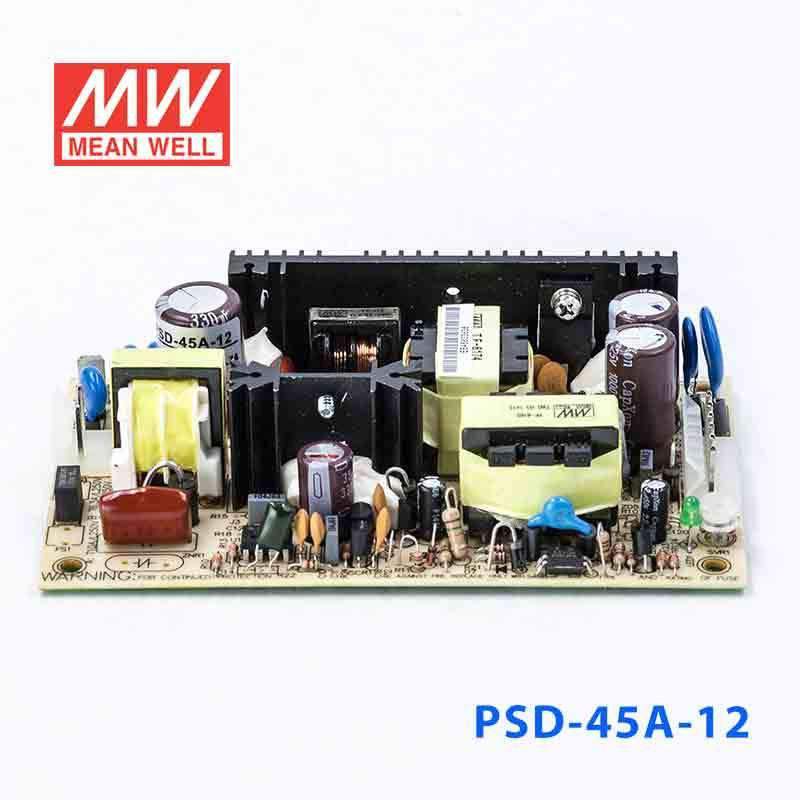

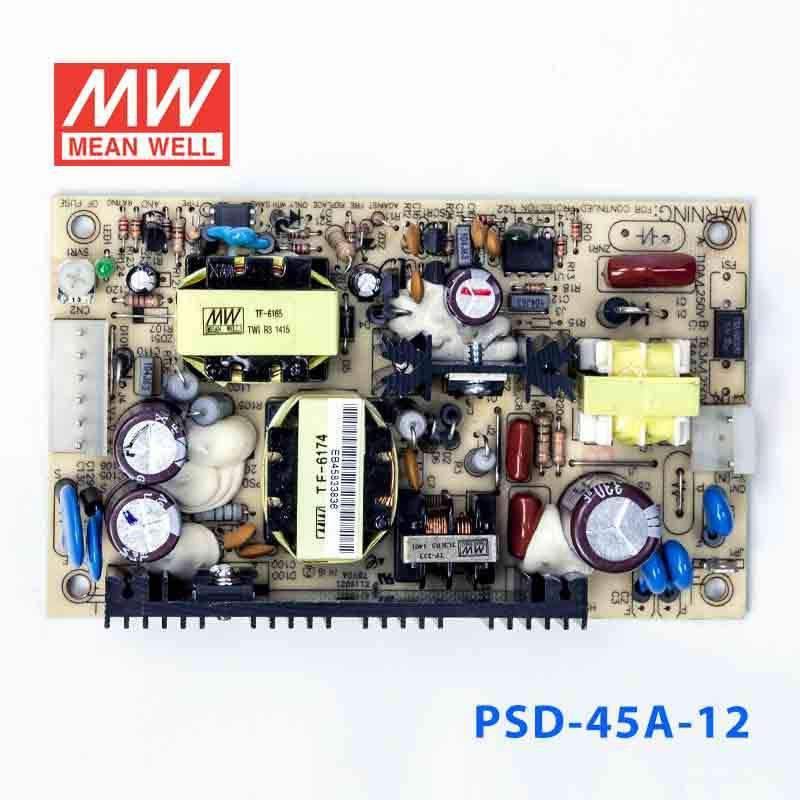

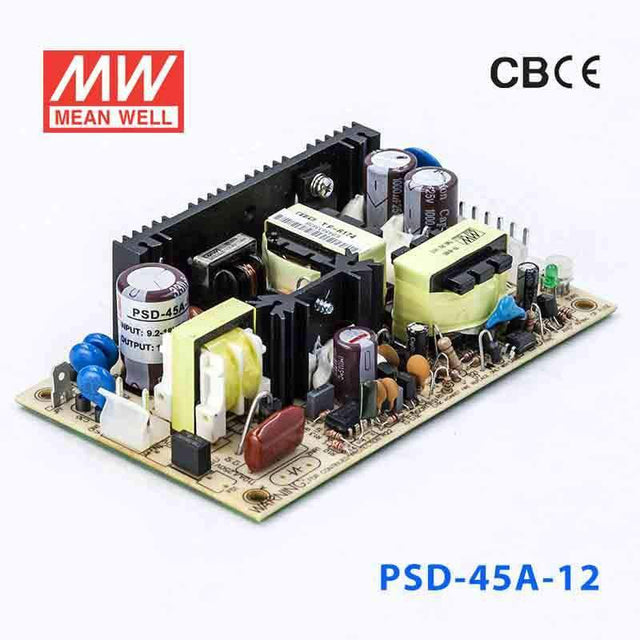

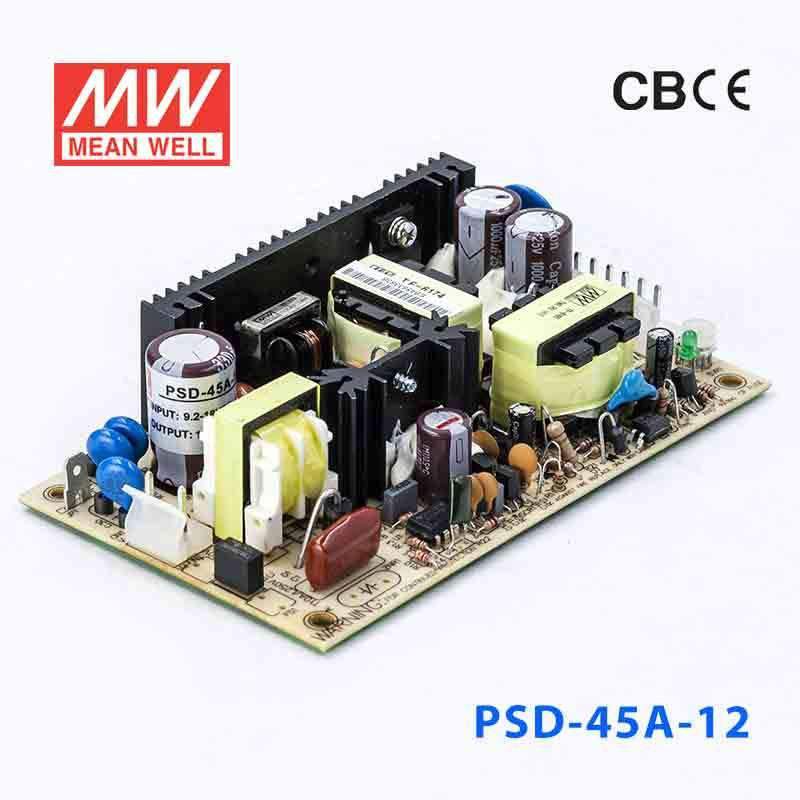

Mean Well PSD-45A-12 DC-DC Converter - 30W - 9~18V in 12V out
The PSD-45A is a 45W Mean Well power converter (input range: 9.2~18VDC).
Key Features
- ✓ Input voltage range: 9.2~18VDC
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5 in
-
Width2.99 in
-
Height1.18 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the PSD-45A-12 to run a 12V PLC accessory or control circuit from a 9-18VAC source?
Yes, this model is a constant-voltage DC-DC converter with a 12V output and a 9-18VAC input range. It is suited to 12V industrial control loads that stay within its 30W and 2.5A output limits.
Is the PSD-45A-12 a fit for 12V embedded systems or industrial interface boards?
It can fit 12V embedded or interface hardware when the system needs a regulated 12V output and the total draw does not exceed 2.5A or 30W. The 2:1 wide input range also helps when the available source falls within 9-18VAC.
Can this converter power a small 12V relay, sensor, or alarm subsystem in automation equipment?
Yes, it is intended for constant-voltage 12V loads and provides up to 2.5A. That makes it appropriate for smaller 12V automation subcircuits as long as the combined load remains within 30W.
Would the PSD-45A-12 work for 12V mobile or battery-backed electronics inside a control enclosure?
It is often a practical fit where the source is within 9-18VAC and the downstream electronics require 12V constant-voltage power. The available output is capped at 30W and 2.5A, so the enclosure load has to stay inside those limits.
Is the PSD-45A-12 suitable for outdoor or harsh-environment use?
The listed operating temperature is -10°C to +60°C, so that is the defined thermal range. No IP rating is provided in the specs, so the product data does not confirm outdoor, wet, or dust-exposed use.
