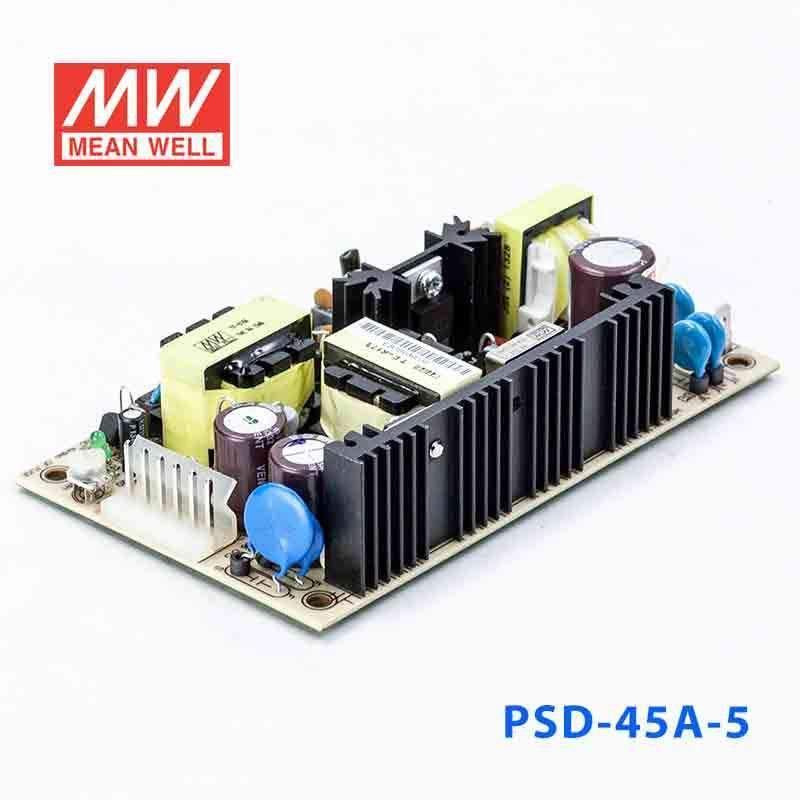

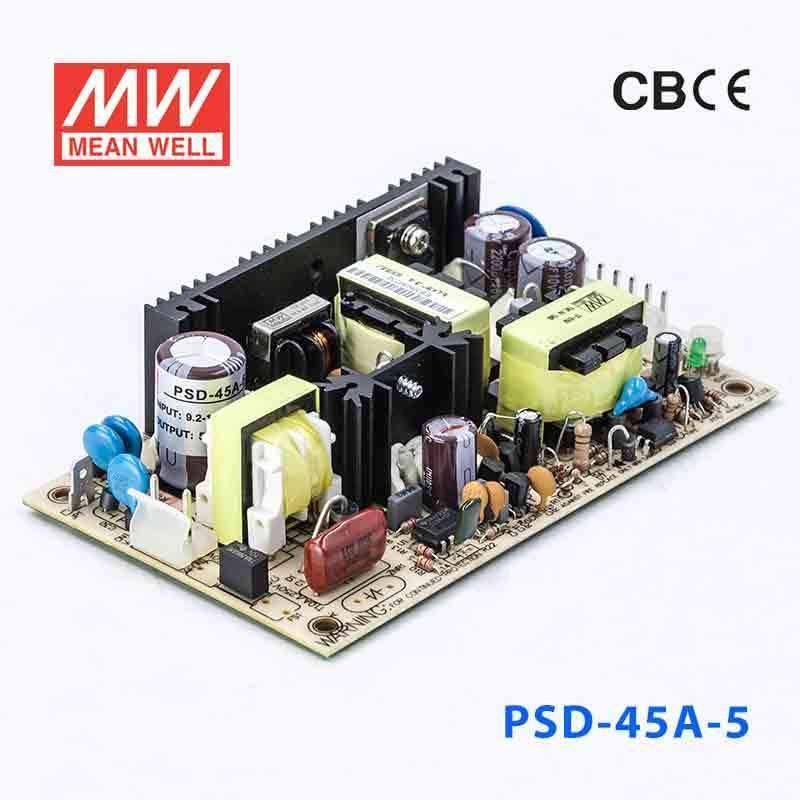

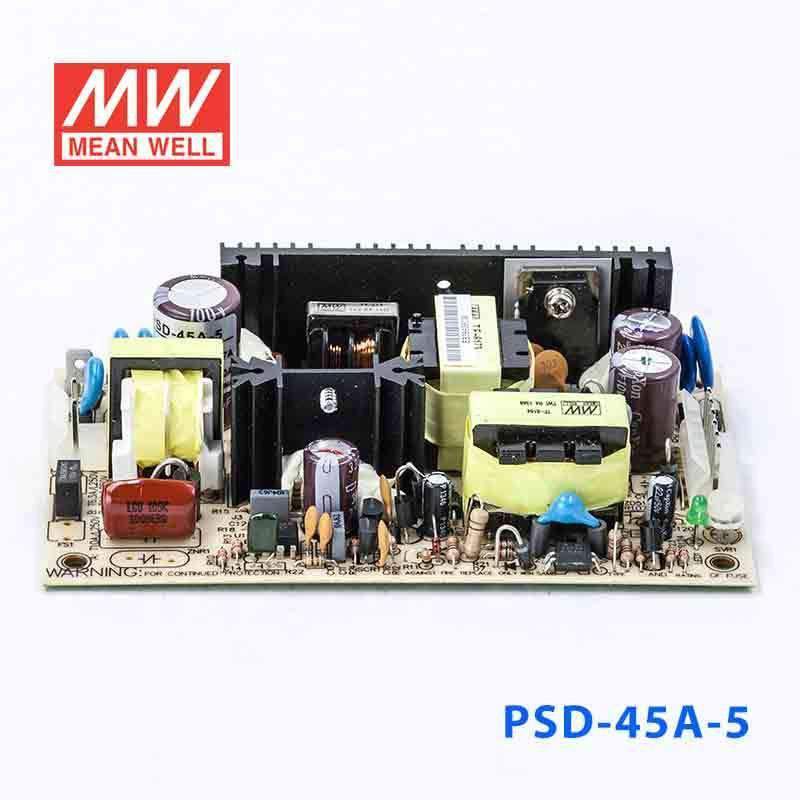

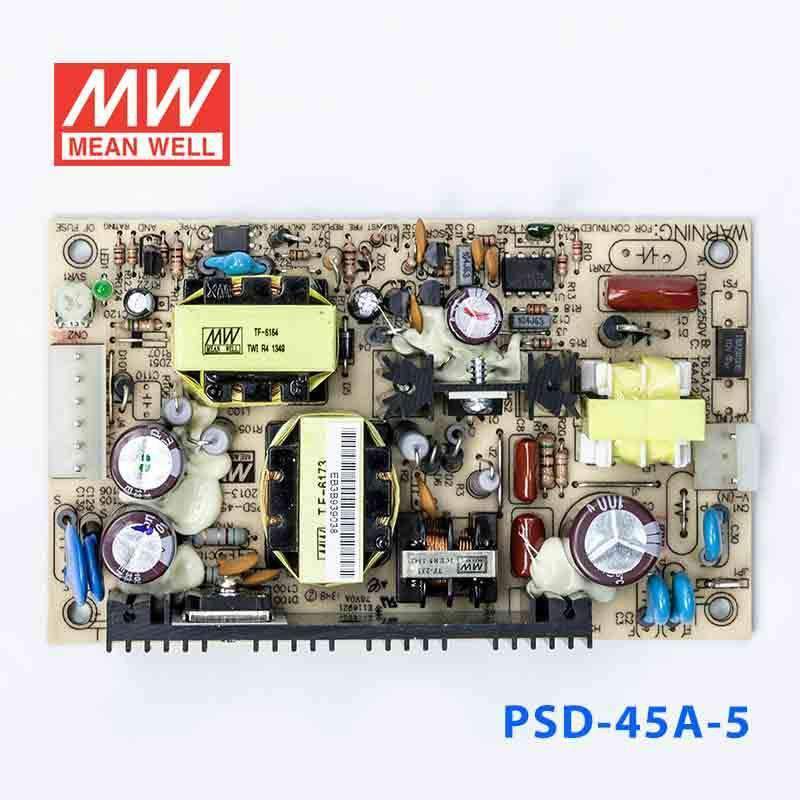

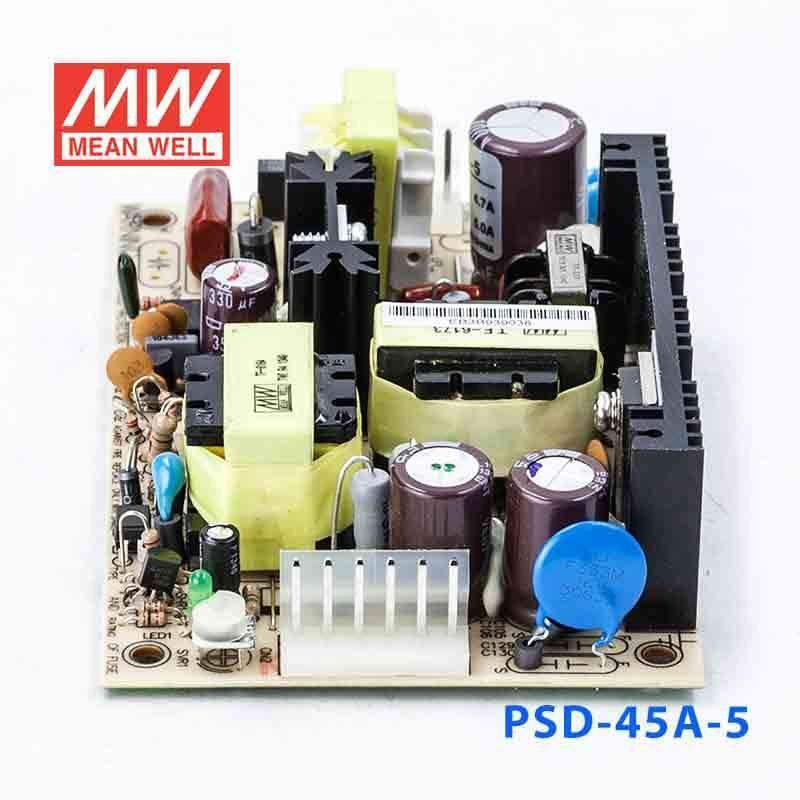

Mean Well PSD-45A-5 DC-DC Converter - 30W - 9~18V in 5V out 6A
Overview
PSD-45A-5 is the 5V output model of this series: rated current 6A, rated power 30W, typical efficiency 74%.
Features
- 2:1 wide input range
- Protections:Short circuit/Over load /Over voltage/ Polarity
- Cooling by free air convection
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Fixed switching frequency at 96KHZ
- Low cost
- High reliability
- 2 year warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 6A
- CURRENT RANGE
- 0 ~ 6A
- RATED POWER
- 30W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ RANGE
- 4.5 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ± 2.0%
- LINE REGULATION
- ± 1.0%
- LOAD REGULATION
- ± 1.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 50ms, ----/12VDC/24VDC at full load; 1500ms,50ms,----48VDC at full load
INPUT
- VOLTAGE RANGE
- 9.2 ~18VDC (12VDC)
- EFFICIENCY(Typ.)
- 74%
- DC CURRENT(Typ.)
- 3.5A/12VDC 2.5A/24VDC 1.2A/48VDC
PROTECTION
- OVER LOAD
- 105% -160% rated output power Protection type :shut down, Re-power on after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V/10%load Protection type : Hiccup mode, recovery automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to output load derating curve),20~90%RH non-condensing
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
- EMI CONDUCTION&RADIATION
- Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035,BS EN/EN61000-6-1 Light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3067.4K hrs min. Telcordia SR-332 (Bellcore) ; 463.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 127*76*30mm (L*W*H)
- PACKING
- 0.19Kg;72pcs/15.6Kg/1.28CUFT
Test conditions and notes5
- 1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
- 2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1uf & 47uf capacitor.
- 3.Tolerance:includes set up tolerance,line regulation and load regulation.
- 4.The interval of turning ON and OFF the power supply continuously is 2 seconds.
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PSD-45A-5 for 5V embedded controllers or industrial logic boards?
Yes, this model provides a constant 5V output and can supply up to 6A. It is suited to 5V embedded or logic loads when the total requirement stays within its 30W rating.
Is the PSD-45A-5 appropriate for powering multiple 5V sensors or interface modules in one system?
It can be a practical choice for grouped 5V electronics because it offers more current headroom than lower-current 5V versions, up to 6A. The total connected load still needs to remain at or below 30W.
Would this converter work for a compact industrial computer or SBC that needs 5V power?
It can fit 5V computing or embedded hardware when the source is within 9.2-18VDC and the load stays inside 5V, 6A, and 30W. That makes it more suitable for higher-current 5V electronics than small 5W or 15W converters.
Can the PSD-45A-5 power 5V communications or automation accessories in an enclosure?
Yes, for enclosed 5V accessories that need constant-voltage output, this unit provides up to 6A. The main selection check is whether the full accessory load stays within the 30W output capacity.
Is the PSD-45A-5 suitable for outdoor cabinets or harsh plant areas?
Its specified operating temperature is -10°C to +60°C. No IP rating is shown, so the provided specs support temperature evaluation only and do not confirm exposed outdoor or water-ingress environments.
