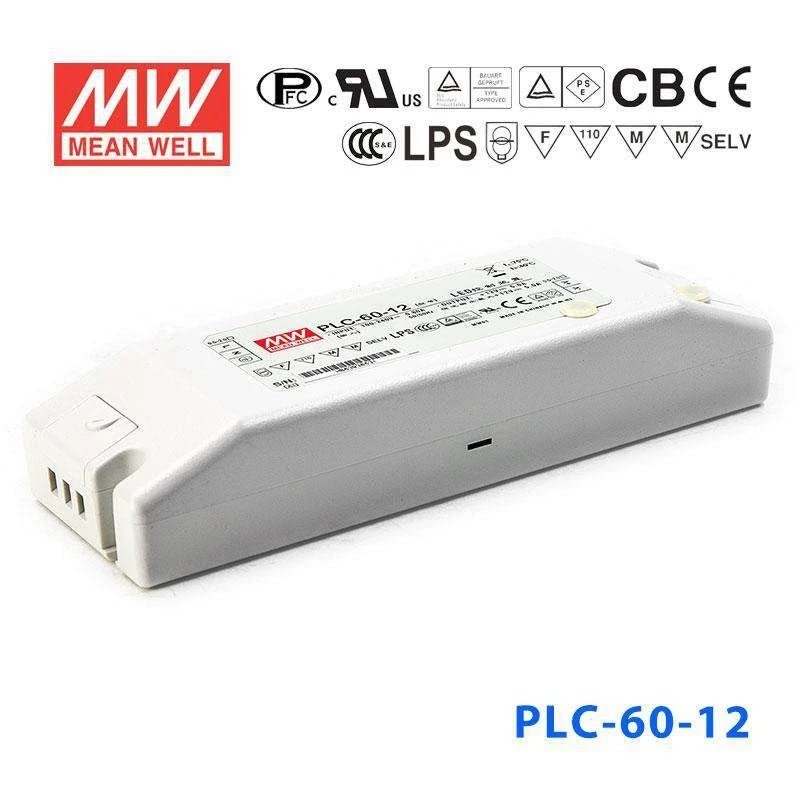

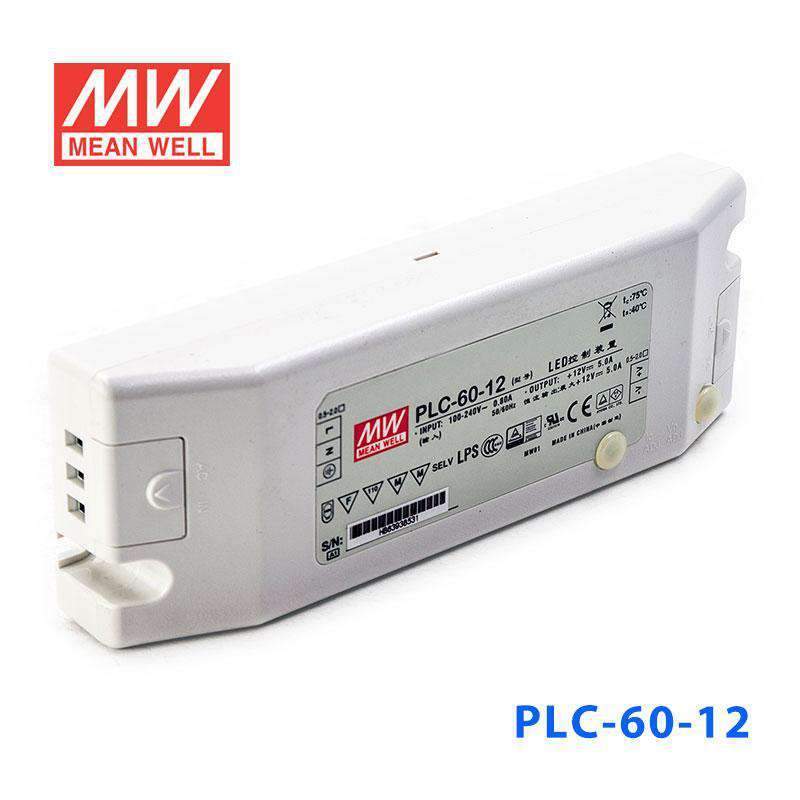

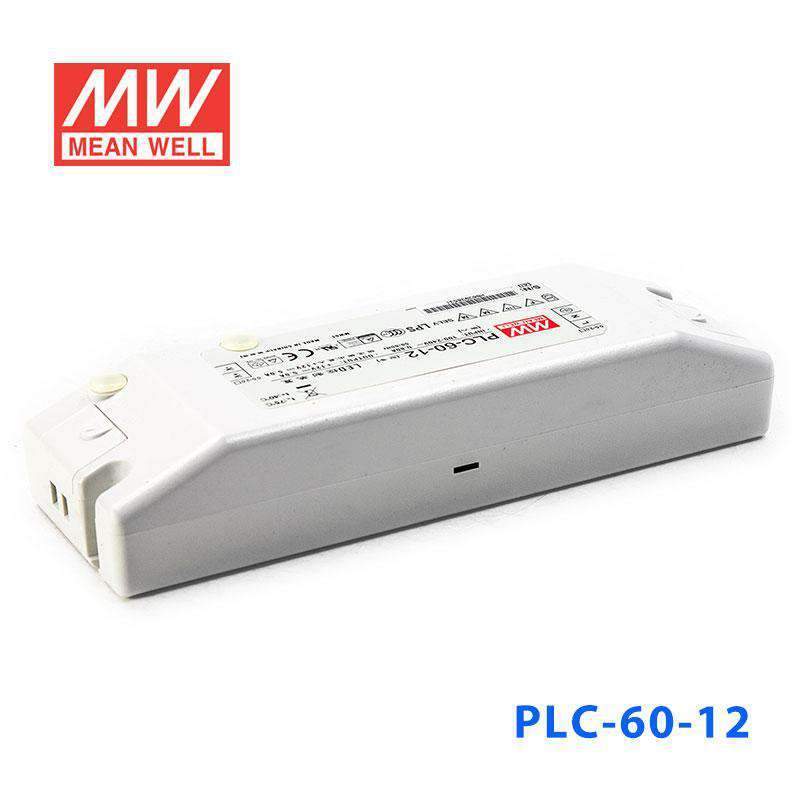

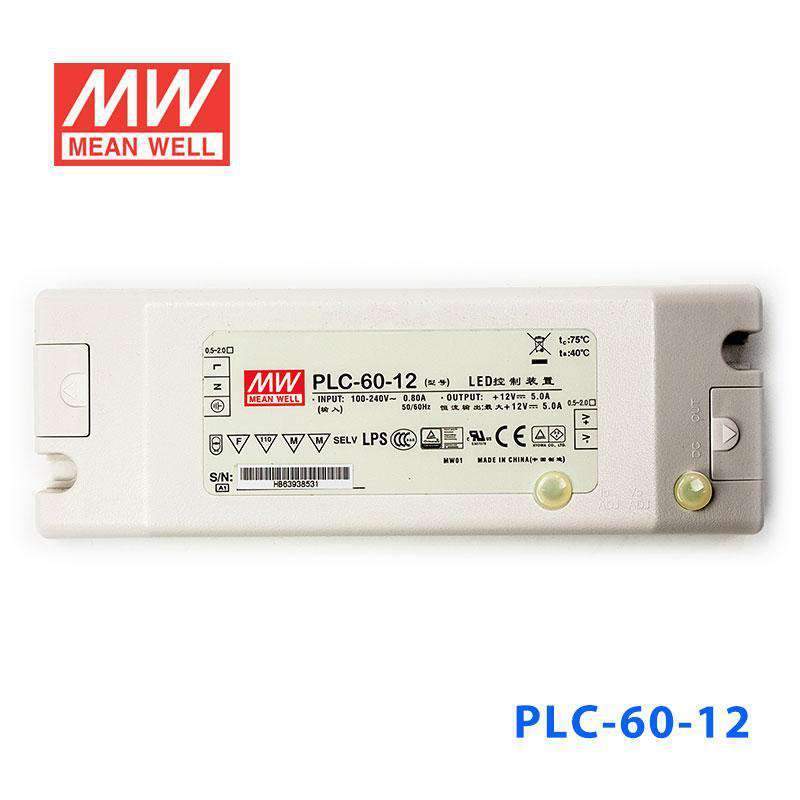

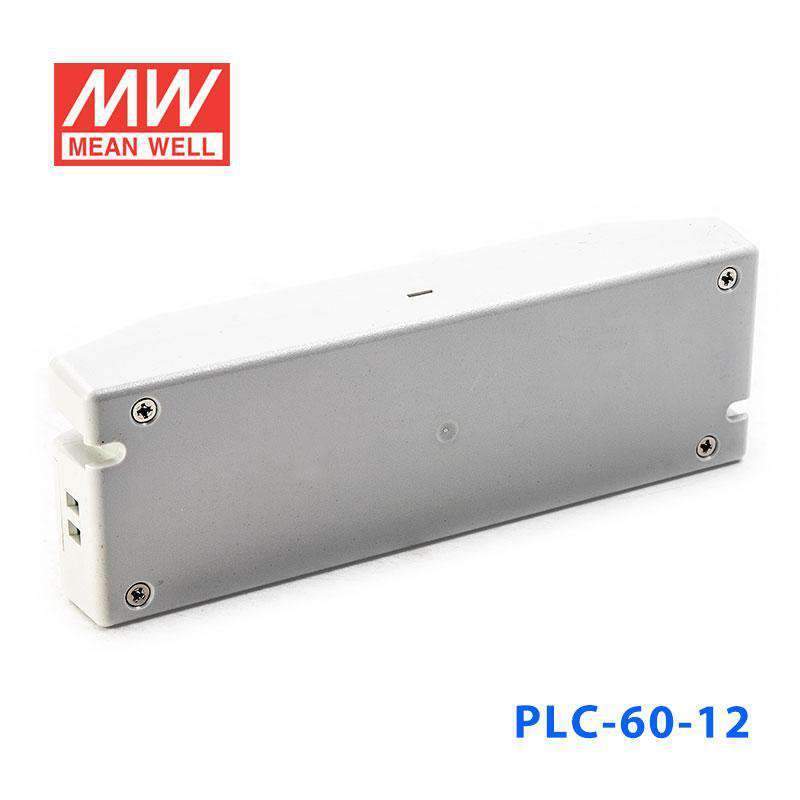

Mean Well PLC-60-12 Power Supply 60W 12V - PFC
The PLC-60 is a 60W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLC-60-12 used for?
The PLC-60-12 is a 60W 12V power supply designed for LED lighting and moving sign applications. It is intended for buyers who need a regulated 12V DC output from a universal AC input in a compact plastic-case unit.
What are the key electrical ratings of the PLC-60-12?
This model is rated for 60W output power with a 12V DC output and 5A rated current. It also includes active power factor correction and operates with high efficiency up to 89%.
Does the PLC-60-12 support dimming control?
No, this model does not include a dimming control function. It is better suited to applications that need a fixed 12V output rather than integrated dimming capability.
Is the PLC-60-12 suitable for environments with temperature variation?
The PLC-60-12 is specified for operation from -30°C to 50°C. That makes it appropriate for indoor or protected applications where those ambient temperature limits are maintained.
What protections are built into the PLC-60-12?
This model includes protection against short circuit, over current, over voltage, and over temperature. Those built-in safeguards help protect the power supply during abnormal operating conditions.
How does the PLC-60-12 differ from a basic 12V power supply?
The PLC-60-12 adds features such as active PFC, adjustable output voltage and current level, and a built-in constant current limiting circuit in C.V.+C.C. mode. It is positioned for LED-related applications where those characteristics can matter more than with a basic fixed-output supply.
