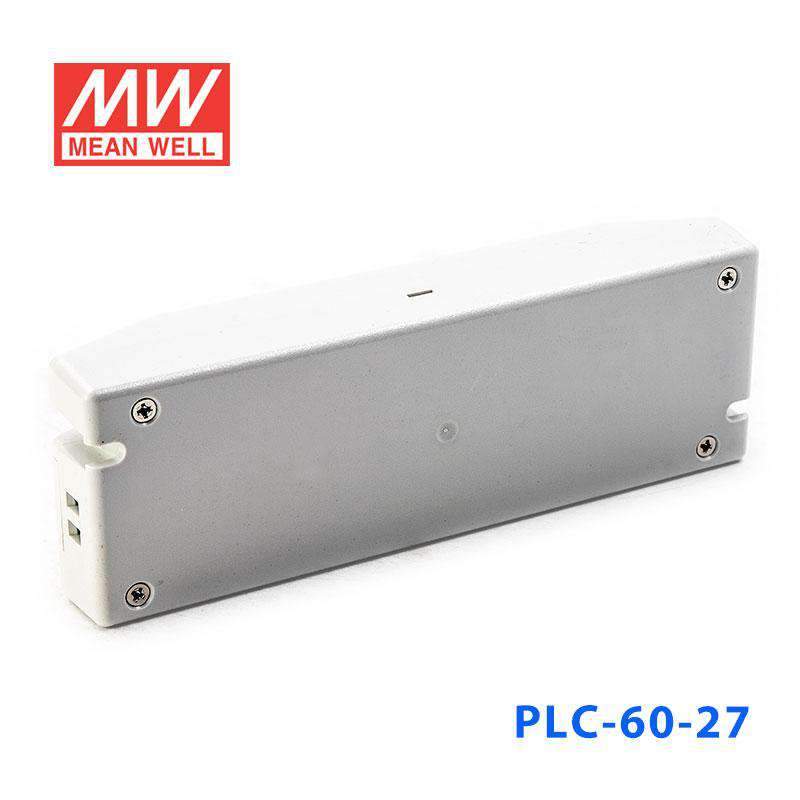

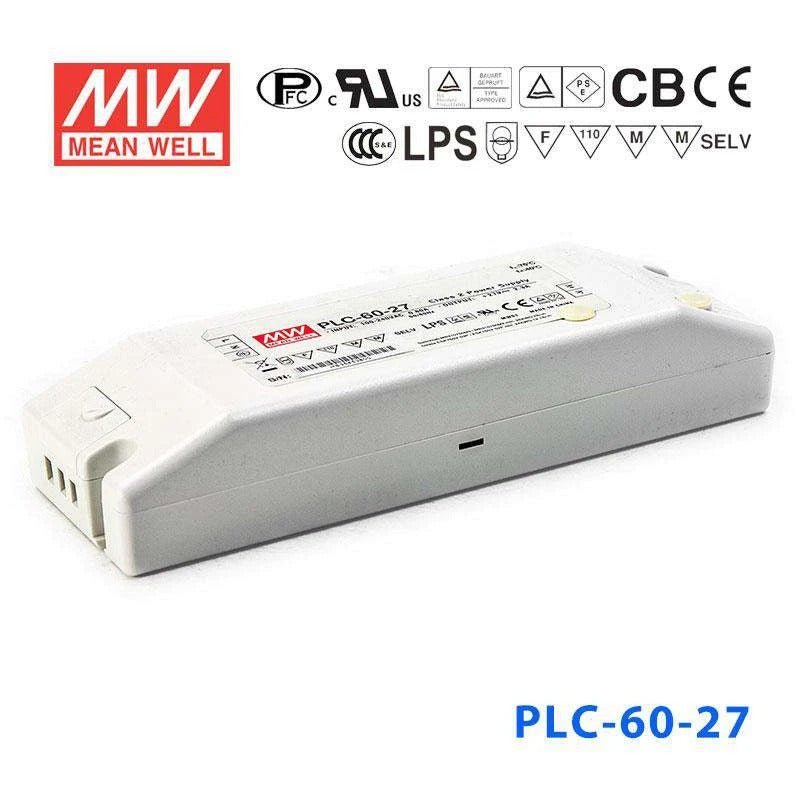

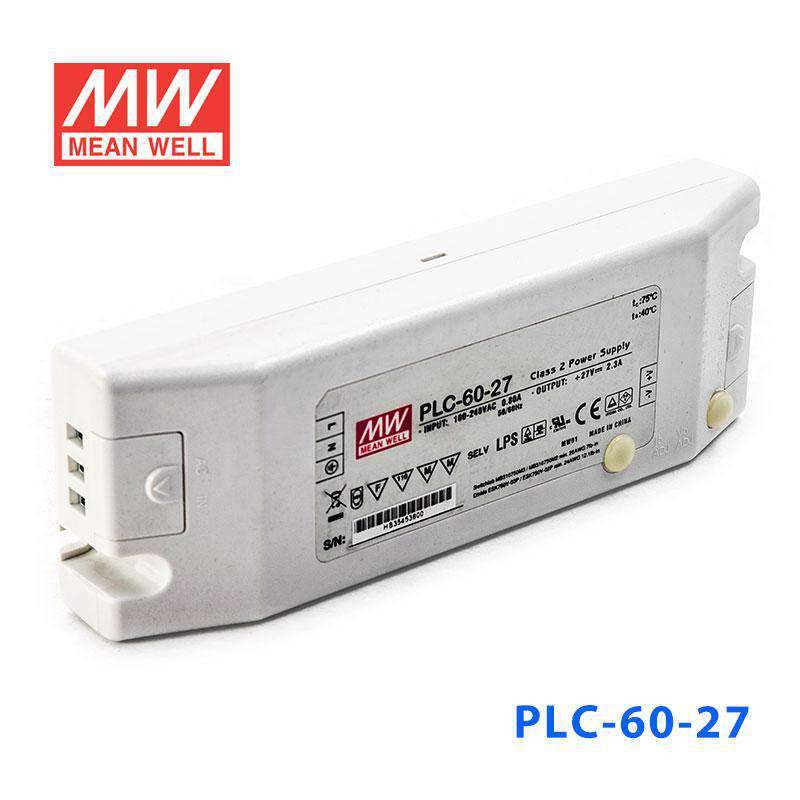

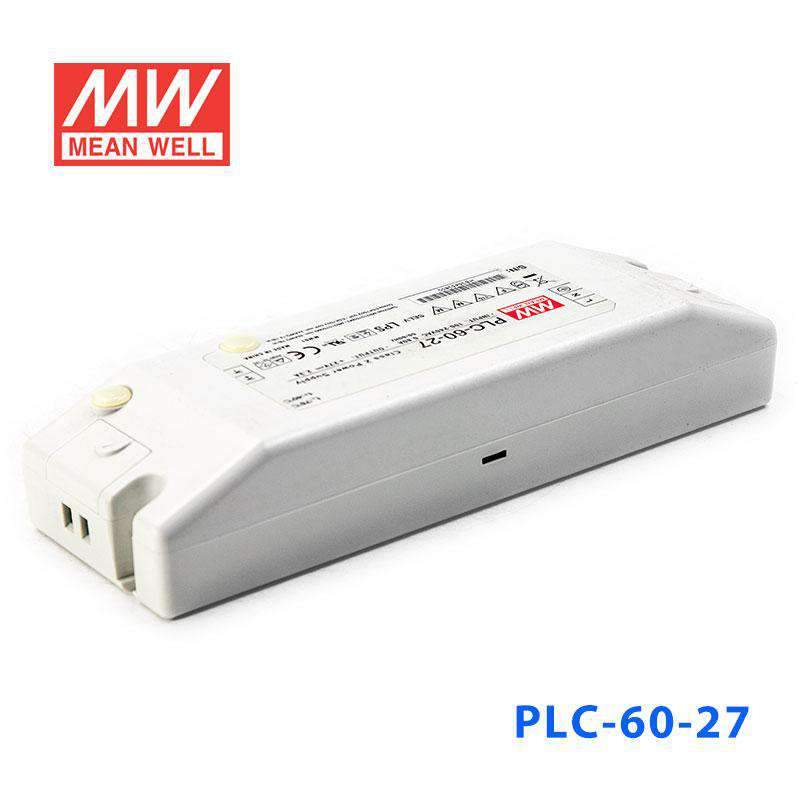

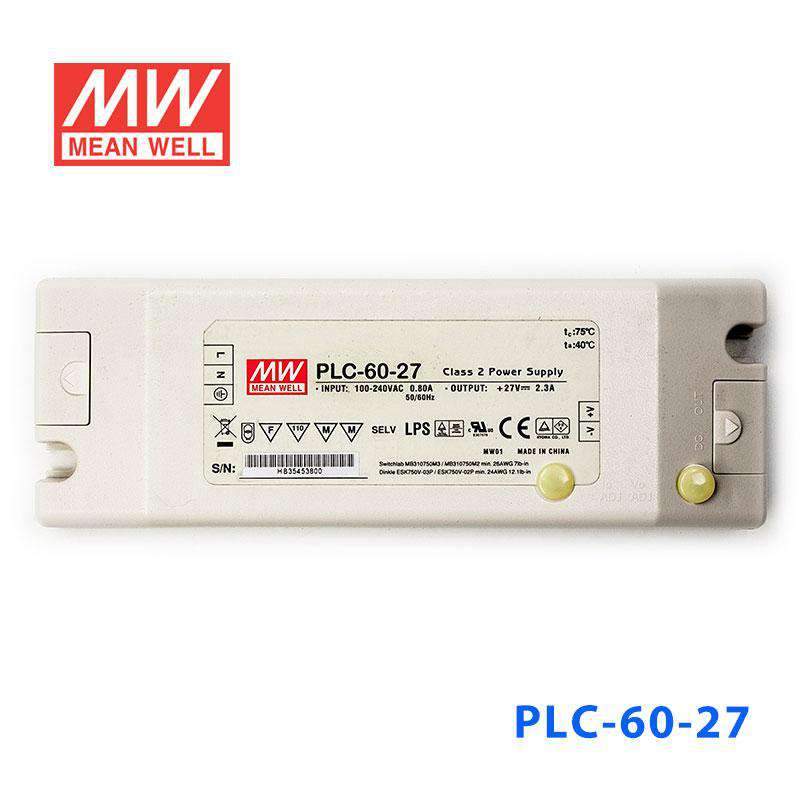

Mean Well PLC-60-27 Power Supply 60W 27V - PFC

screw terminal, fully isolated plastic case, suitable for signage applications

SKU:

PLC-60-27

$38.90 USD ~~$132.75~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Fully isolated plastic case with screw terminal style of I/O

Built-in constant current limiting circuit (C.V.+C.C. mode)

Adjustable output voltage and current level

Built-in active PFC function, PF>0.9 for 75% of load or higher

High efficiency up to 89%

Class 2 power unit / Pass LPS

Protections: Short circuit / Over current / Over voltage / Over temperature

100% full load burn-in test

Suitable for LED lighting and moving sign applications

Cooling by free air convection

2 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	90%~110% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup time	1500ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-30~+50°C (refer to output derating curve)
Safety standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards	EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output)	3+2P screw terminal block
Dimension (LxWxH)(mm)	181.5x 62x 35
Packing	0.41kg ; 30pcs / 13.3kg

Specifications

Brand

Mean Well
Series

PLC Series
Power Rating

62.1 Watt
Output Voltage

27 Volt
Rated Current

2.3 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.15 in
Width

2.44 in
Height

1.38 in
Weight

0.9 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the main output rating of the Mean Well PLC-60-27?

The PLC-60-27 is rated for 27V output and 2.3A rated current. Its listed power rating is 62.1W, and the product name identifies it as a 60W class power supply. This makes it suitable for applications that need a regulated 27V DC supply within that output range.

What types of applications is the PLC-60-27 designed for?

This model is described as suitable for LED lighting and moving sign applications. It also includes a built-in constant current limiting circuit operating in C.V.+C.C. mode, which is commonly useful in LED power applications. Buyers looking for a dedicated LED power supply in a compact plastic case often choose this style of unit.

Does the Mean Well PLC-60-27 support dimming control?

No, this model is listed with no dimming control. If your project requires integrated dimming, this unit may not be the right fit. It is better suited to applications that need stable output without built-in dimming functionality.

What protection features are included in the PLC-60-27?

The PLC-60-27 includes protection for short circuit, over current, over voltage, and over temperature. These built-in safeguards help protect the power supply during abnormal operating conditions. The description also notes that the unit undergoes a 100% full load burn-in test.

Can the PLC-60-27 be used in demanding power quality applications?

This model includes active power factor correction and is specified with PF greater than 0.9 at 75% load or higher. That can make it a better fit than non-PFC models where improved power factor is important. It is specifically marketed as a PFC version in the product name.

What operating temperature range is specified for the PLC-60-27?

The specified operating temperature range is -30°C to 50°C. That gives it a fairly broad working range for many indoor and protected commercial environments. Buyers should still confirm the surrounding enclosure and system conditions are appropriate for that temperature window.
