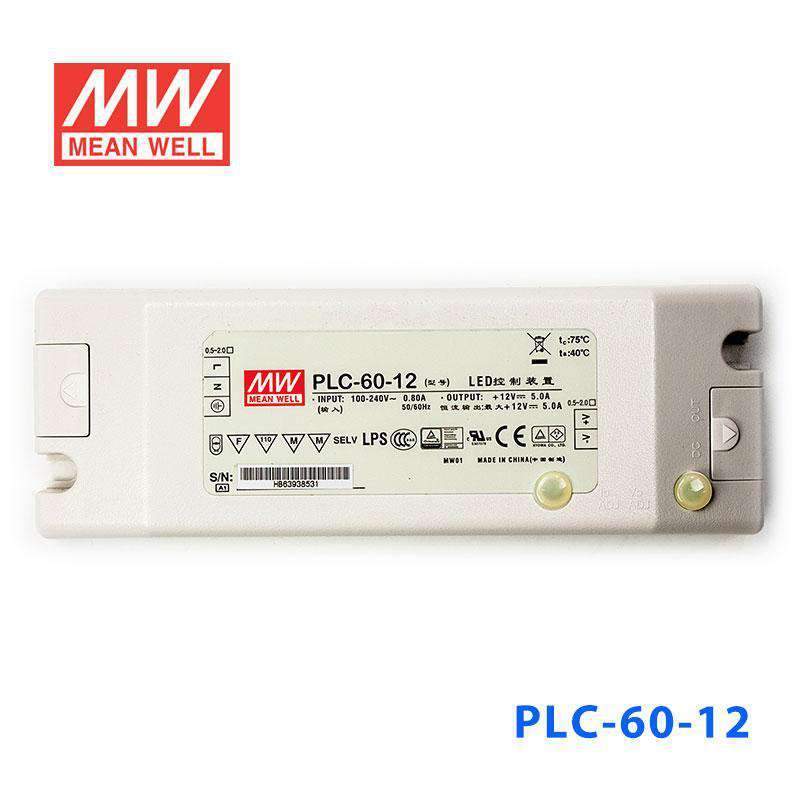

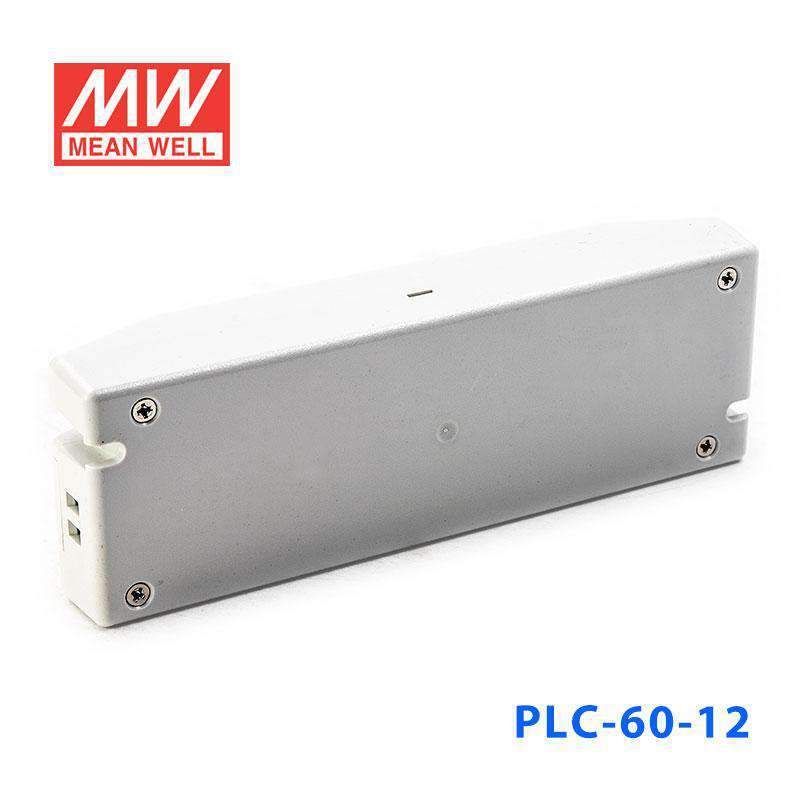

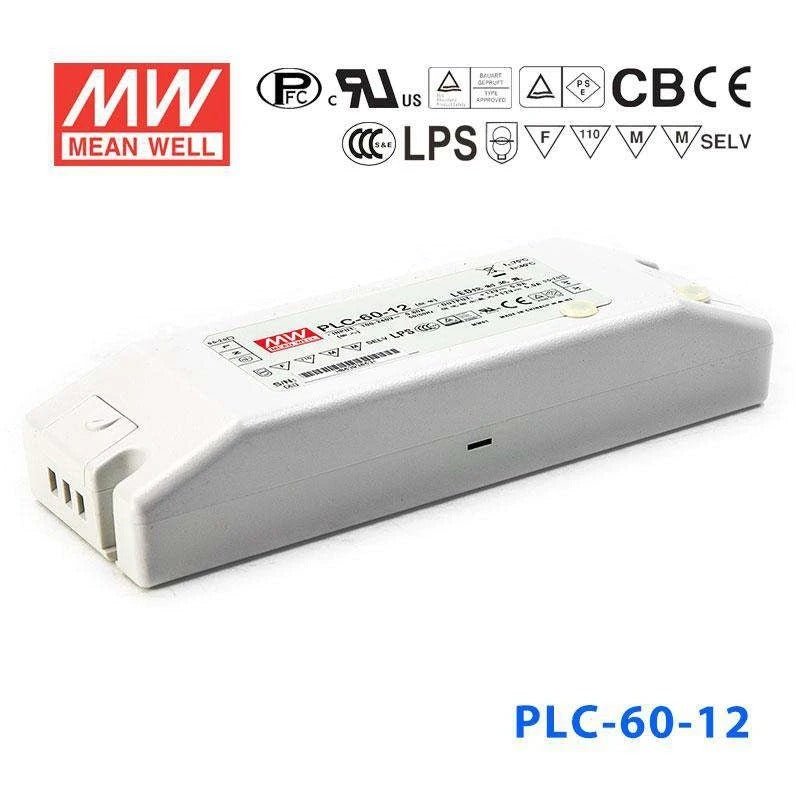

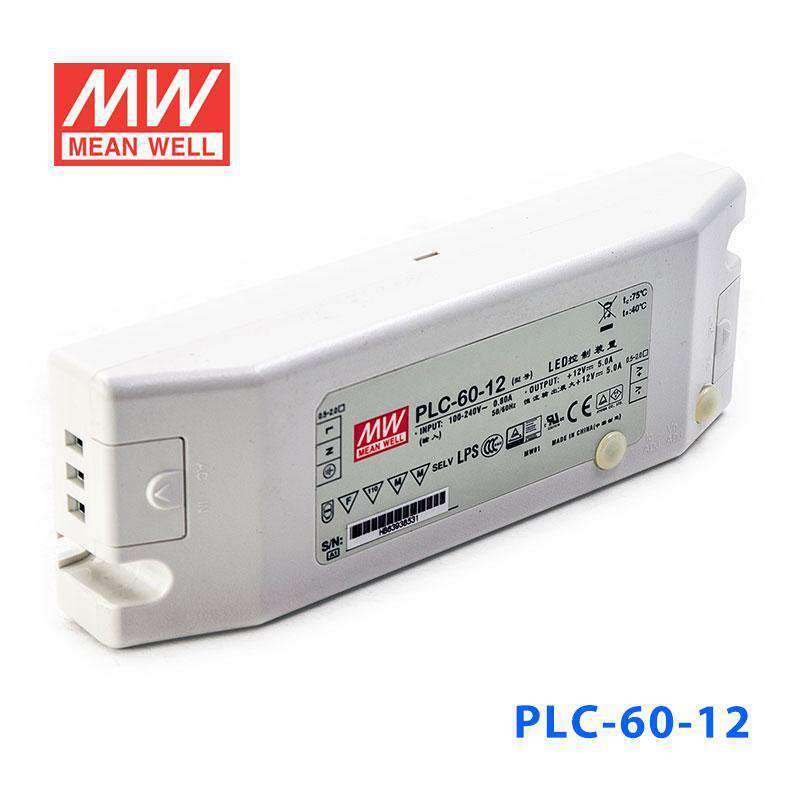

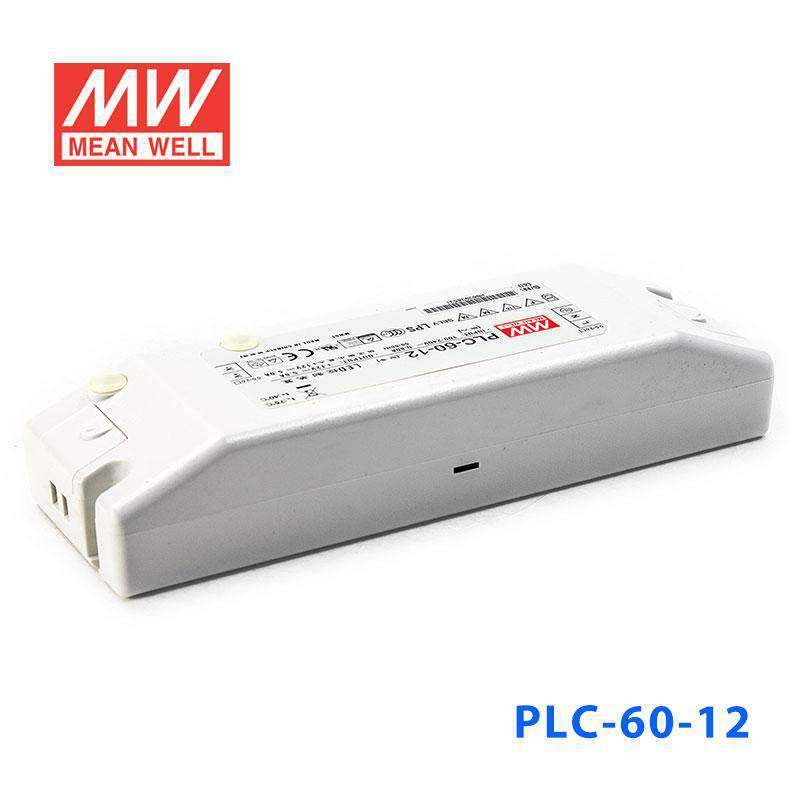

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLC-60-12 Power Supply 60W 12V - PFC

screw terminal, fully isolated plastic case, suitable for signage applications

SKU:

PLC-60-12

$35.98 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Fully isolated plastic case with screw terminal style of I/O

Built-in constant current limiting circuit (C.V.+C.C. mode)

Adjustable output voltage and current level

Built-in active PFC function, PF>0.9 for 75% of load or higher

High efficiency up to 89%

Class 2 power unit / Pass LPS

Protections: Short circuit / Over current / Over voltage / Over temperature

100% full load burn-in test

Suitable for LED lighting and moving sign applications

Cooling by free air convection

2 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	90%~110% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup time	1500ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature	-30~+50°C (refer to output derating curve)
Safety standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only
EMC standards	EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection (Input / Output)	3+2P screw terminal block
Dimension (LxWxH)(mm)	181.5x 62x 35
Packing	0.41kg ; 30pcs / 13.3kg

Specifications

Brand

Mean Well
Series

PLC Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.15 in
Width

2.44 in
Height

1.38 in
Weight

0.9 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well PLC-60-12 used for?

The PLC-60-12 is a 60W 12V power supply designed for LED lighting and moving sign applications. It is intended for buyers who need a regulated 12V DC output from a universal AC input in a compact plastic-case unit.

What are the key electrical ratings of the PLC-60-12?

This model is rated for 60W output power with a 12V DC output and 5A rated current. It also includes active power factor correction and operates with high efficiency up to 89%.

Does the PLC-60-12 support dimming control?

No, this model does not include a dimming control function. It is better suited to applications that need a fixed 12V output rather than integrated dimming capability.

Is the PLC-60-12 suitable for environments with temperature variation?

The PLC-60-12 is specified for operation from -30°C to 50°C. That makes it appropriate for indoor or protected applications where those ambient temperature limits are maintained.

What protections are built into the PLC-60-12?

This model includes protection against short circuit, over current, over voltage, and over temperature. Those built-in safeguards help protect the power supply during abnormal operating conditions.

How does the PLC-60-12 differ from a basic 12V power supply?

The PLC-60-12 adds features such as active PFC, adjustable output voltage and current level, and a built-in constant current limiting circuit in C.V.+C.C. mode. It is positioned for LED-related applications where those characteristics can matter more than with a basic fixed-output supply.
