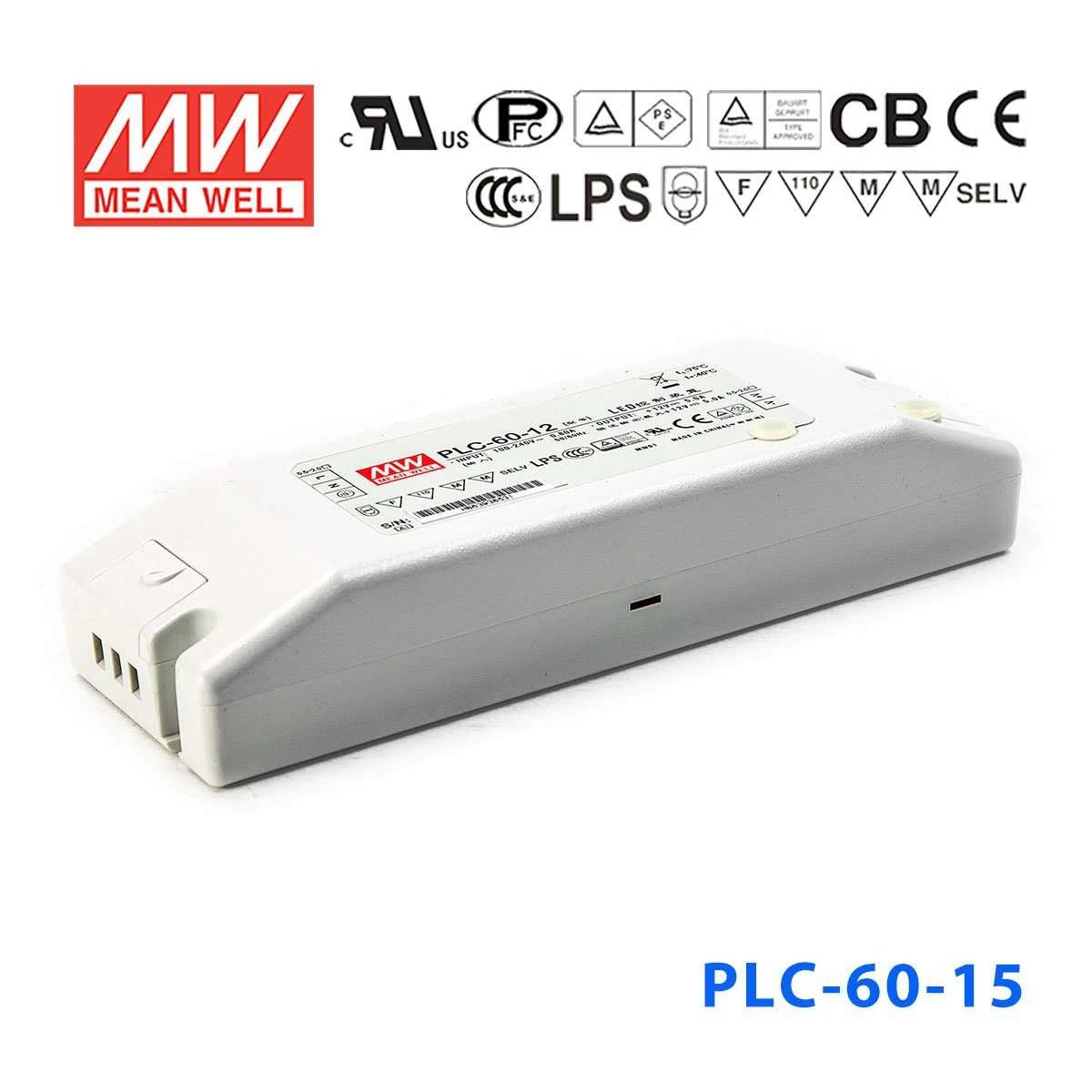

Mean Well PLC-60-15 Power Supply 60W 15V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-60-15 Power Supply 60W 15V - PFC
The PLC-60 is a 60W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What applications is the Mean Well PLC-60-15 best suited for?
The PLC-60-15 is designed for LED lighting and moving sign applications that need a 15V DC power source. Its 60W output and built-in constant current limiting circuit make it a practical choice for systems that benefit from C.V.+C.C. operation.
What are the main electrical ratings of the PLC-60-15?
This model is rated for 60W output power with a 15V DC output and 4A rated current. It also supports universal AC input and includes active power factor correction for improved input performance at higher load levels.
Does the PLC-60-15 support dimming control?
No, the PLC-60-15 does not include a dimming control function. If your project requires dimming, you would need to compare it with a different LED driver model that specifically lists dimming support.
What makes the PLC-60-15 different from a basic fixed-output power supply?
This model combines constant voltage output with built-in constant current limiting, which is useful in LED-related applications. It also includes active PFC, Class 2 / Pass LPS design features, and a full set of protections including short circuit, over current, over voltage, and over temperature.
Can the output of the PLC-60-15 be adjusted?
Yes, the PLC-60-15 includes adjustable output voltage and current level capability. That gives buyers some flexibility when selecting this model for applications that need a 15V nominal output with tunable operating limits.
Is the PLC-60-15 suitable for demanding operating environments?
It is rated for operation from -30°C to 50°C, which supports use across a fairly wide temperature range. The unit also uses a fully isolated plastic case and is backed by a 2-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLC-60 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLC-60-48 Power Supply 60W 48V - PFC | 62.4W | 48V | 1.3A | Indoor | $38.90 | View |
| Mean Well PLC-60-36 Power Supply 60W 36V - PFC | 61.2W | 36V | 1.7A | Indoor | $35.98 | View |
| Mean Well PLC-60-27 Power Supply 60W 27V - PFC | 62.1W | 27V | 2.3A | Indoor | $38.90 | View |
| Mean Well PLC-60-24 Power Supply 60W 24V - PFC | 60W | 24V | 2.5A | Indoor | $32.42 | View |
| Mean Well PLC-60-20 Power Supply 60W 20V - PFC | 60W | 20V | 3A | Indoor | $38.90 | View |
| Mean Well PLC-60-12 Power Supply 60W 12V - PFC | 60W | 12V | 5A | Indoor | $35.98 | View |
