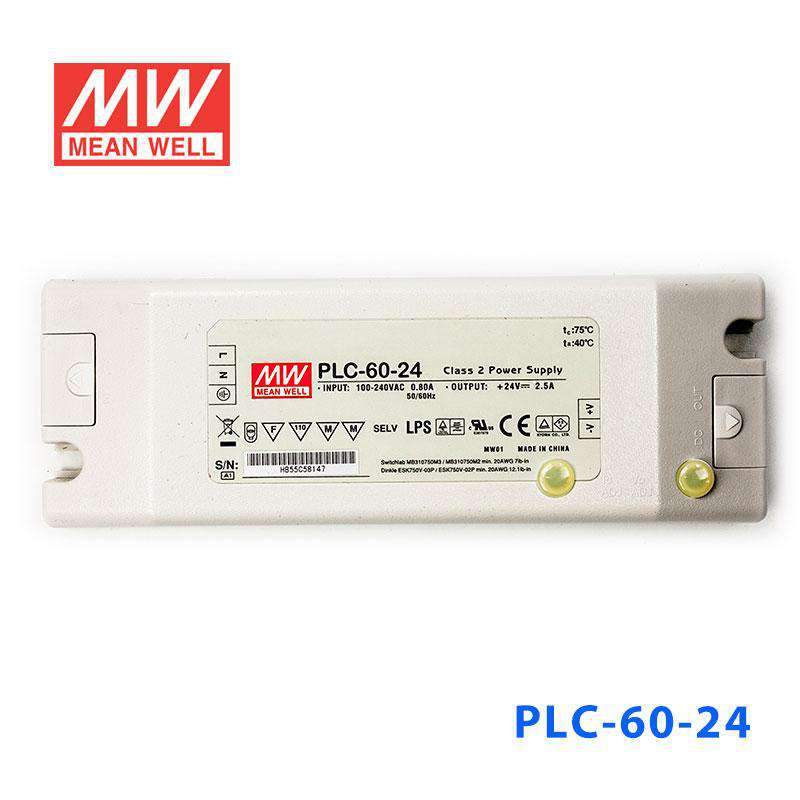

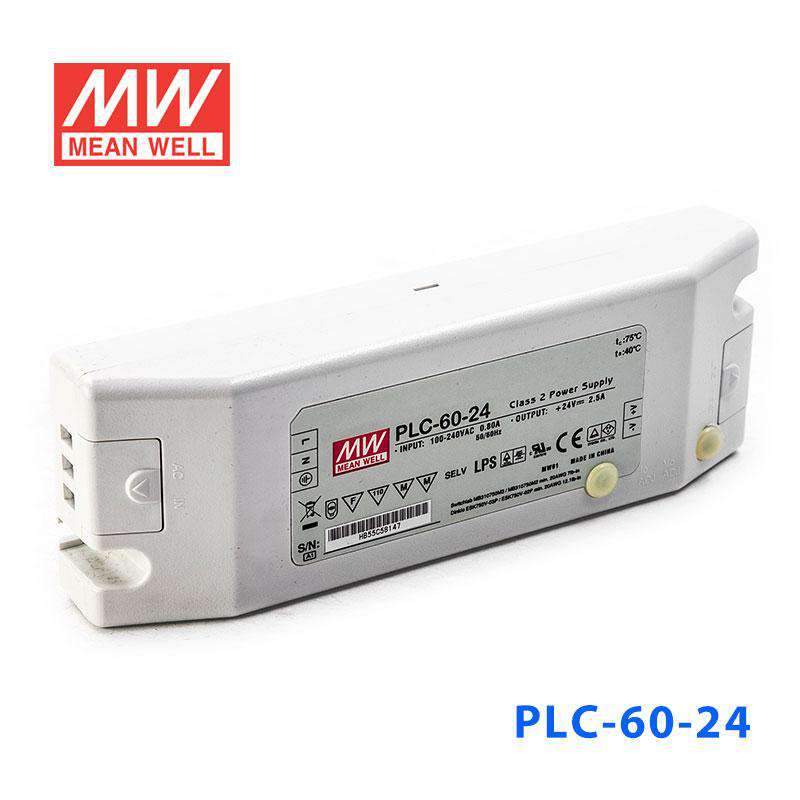

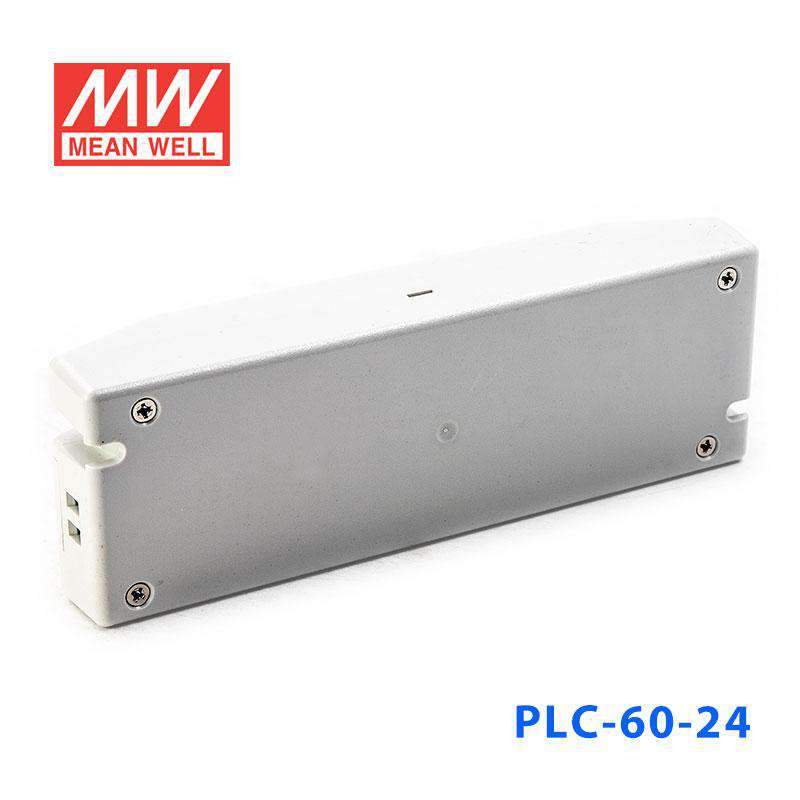

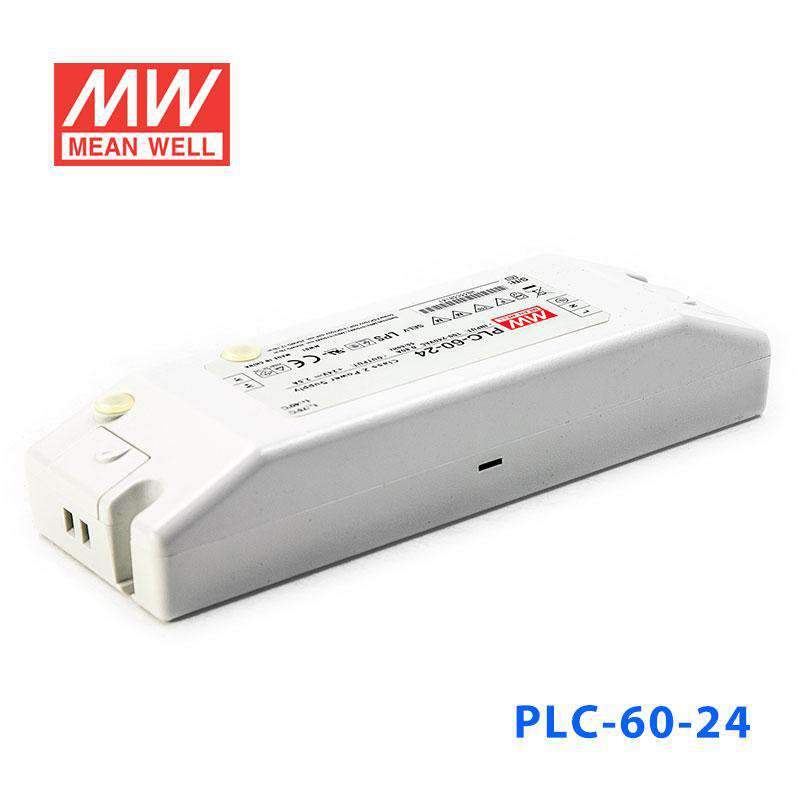

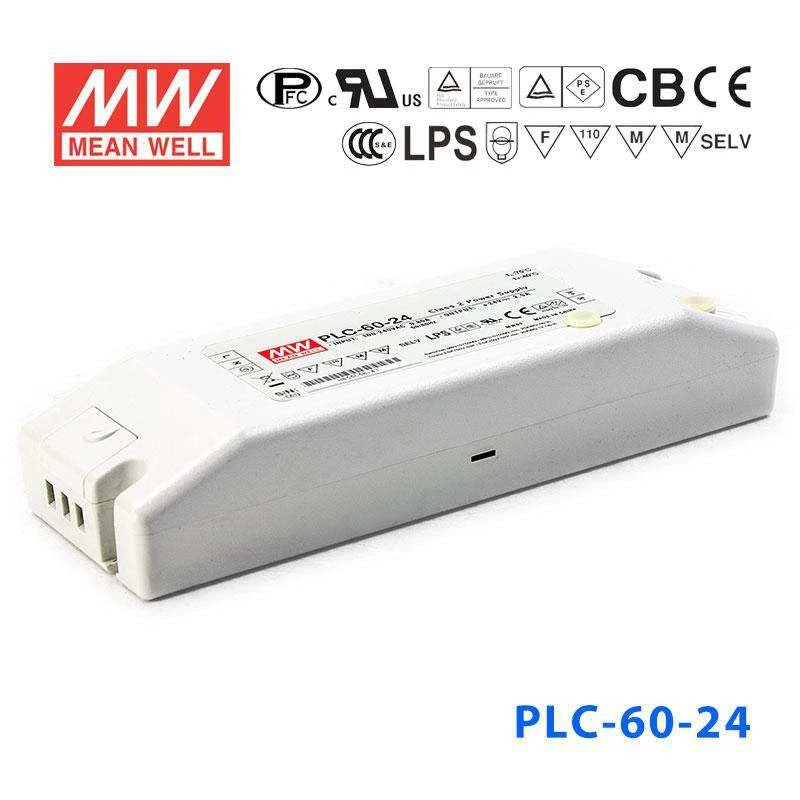

Mean Well PLC-60-24 Power Supply 60W 24V - PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLC-60-24 Power Supply 60W 24V - PFC
The PLC-60 is a 60W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.15 in
-
Width2.44 in
-
Height1.38 in
-
Weight0.9 lb
::specification::
Frequently Asked Questions
What is the Mean Well PLC-60-24 designed for?
The PLC-60-24 is a 60W 24V power supply intended for LED lighting and moving sign applications. It is a constant-voltage model with built-in constant current limiting circuitry, which helps it suit loads that need a stable 24V DC output.
What are the main electrical output ratings of the PLC-60-24?
This model is rated for 24V DC output, 2.5A rated current, and 60W total power. It is part of Mean Well's PLC series and includes adjustable output voltage and current level capability.
Does the PLC-60-24 support dimming control?
No. The product data for the PLC-60-24 lists dimming control as none, so it is not a dimming-version LED driver in this listing. Buyers who specifically need integrated dimming should compare it with models that explicitly include dimming functions.
What protection features are included in the PLC-60-24?
The PLC-60-24 includes protection for short circuit, over current, over voltage, and over temperature. It also has a built-in constant current limiting circuit operating in C.V.+C.C. mode, which adds protection-oriented behavior for compatible LED applications.
Is the PLC-60-24 suitable for applications where power factor matters?
Yes. This model includes active PFC and is specified with PF greater than 0.9 at 75% load or higher. That makes it a stronger fit for commercial and professional LED applications where power factor is a meaningful consideration.
What operating environment is the PLC-60-24 rated for?
The specified operating temperature range is -30°C to 50°C. The unit also uses a fully isolated plastic case, which is part of its product construction for enclosed power supply use.
Does the PLC-60-24 include any compliance-oriented power unit features?
Yes. The PLC-60-24 is described as a Class 2 power unit and Pass LPS model. These are useful differentiators for buyers who need a 24V LED power supply with defined safety-related product characteristics.
