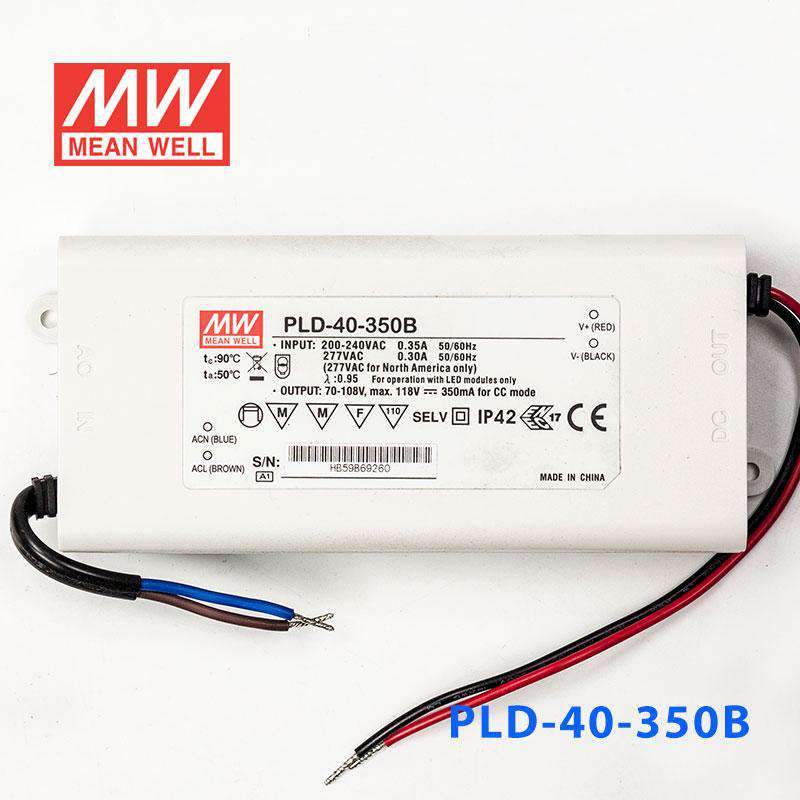

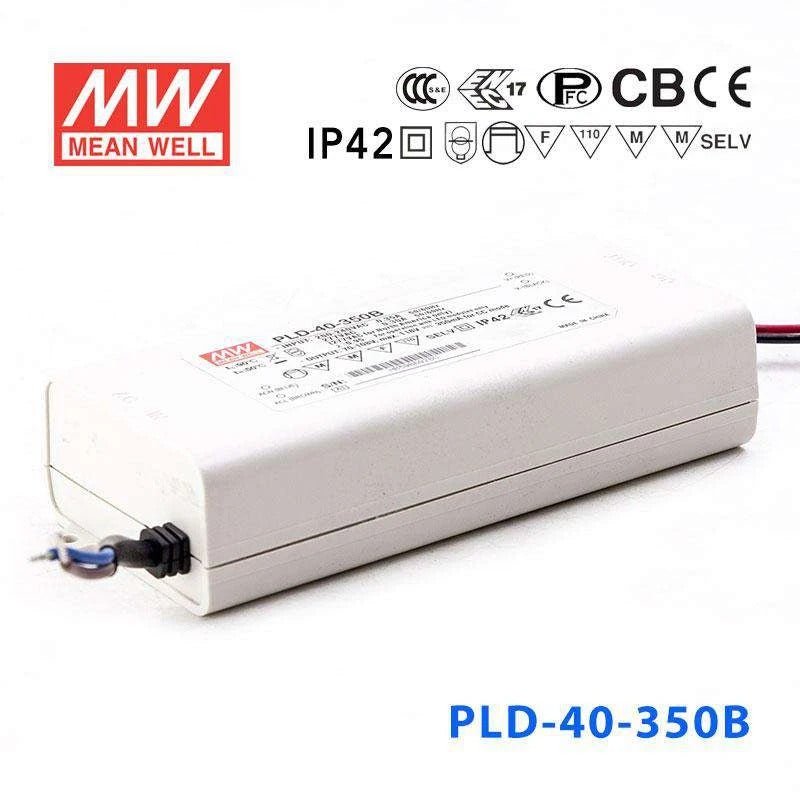

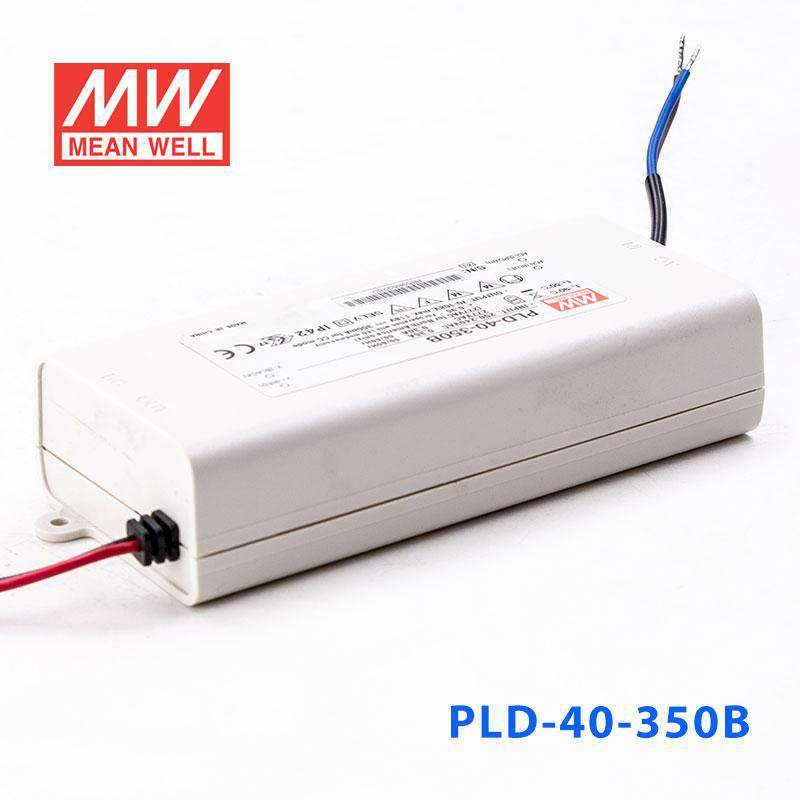

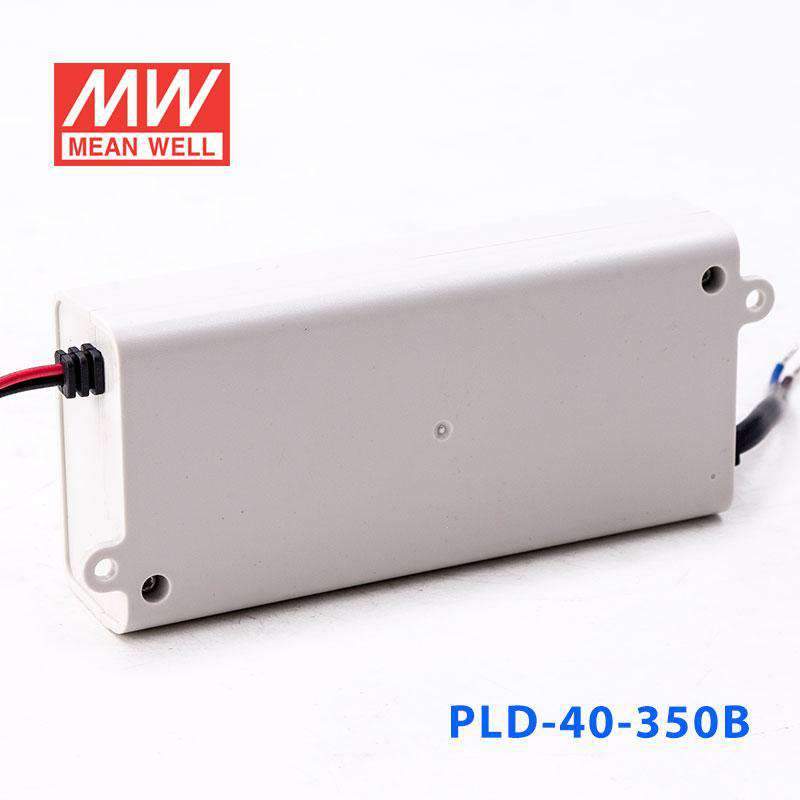

Mean Well PLD-40-350B Power Supply 40W 350mA
The PLD-40 is a 40W Mean Well power converter (input range: 70~108V).
Key Features
- ✓ Input voltage range: 70~108V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating37.8 Watt
-
Output Voltage108 Volt
-
Rated Current0.35 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length5 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the PLD-40-350B for LED downlights?
Yes, if the downlight is designed for constant current operation at 350mA and the LED load falls within the 70-108V constant current range. This driver delivers up to 37.8W, so it is better suited to higher-forward-voltage downlight arrays than low-voltage constant voltage products.
Is the PLD-40-350B suitable for LED signage modules?
It can work for signage modules that are built as a constant current 350mA load and stay within the 70-108V CC output range. It is not a constant voltage driver, so it should not be matched to signage products that expect a fixed voltage output.
Can this driver power a small LED array with a long series string?
Yes, this model is a fit for small LED arrays that need 350mA constant current and have a combined forward voltage within 70-108V. The 108V maximum output makes it more appropriate for longer series LED loads than lower-voltage constant current drivers in the same family.
Is the PLD-40-350B a good replacement for a 350mA constant current driver in an indoor fixture?
It is a reasonable replacement when the original driver was also constant current at 350mA and the fixture's LED load operates in the 70-108V range. You also need to stay within the 37.8W rating and the physical size of 127.0 x 60.0 x 31.5 mm.
How do I know if my LED load is compatible with the PLD-40-350B?
Compatibility depends on matching the output current and the driver's constant current voltage window. This unit supplies 350mA over 70-108V, and the number of LEDs depends on each LED's forward voltage, so it should be used with constant current loads rather than constant voltage strips or modules.
Is the PLD-40-350B suitable for damp or dusty locations?
It has an IP42 plastic case and an operating temperature range of -30°C to +50°C, which fits indoor environments with limited dust and light moisture exposure. It is not intended for fully exposed outdoor conditions where a higher IP rating would normally be required.
