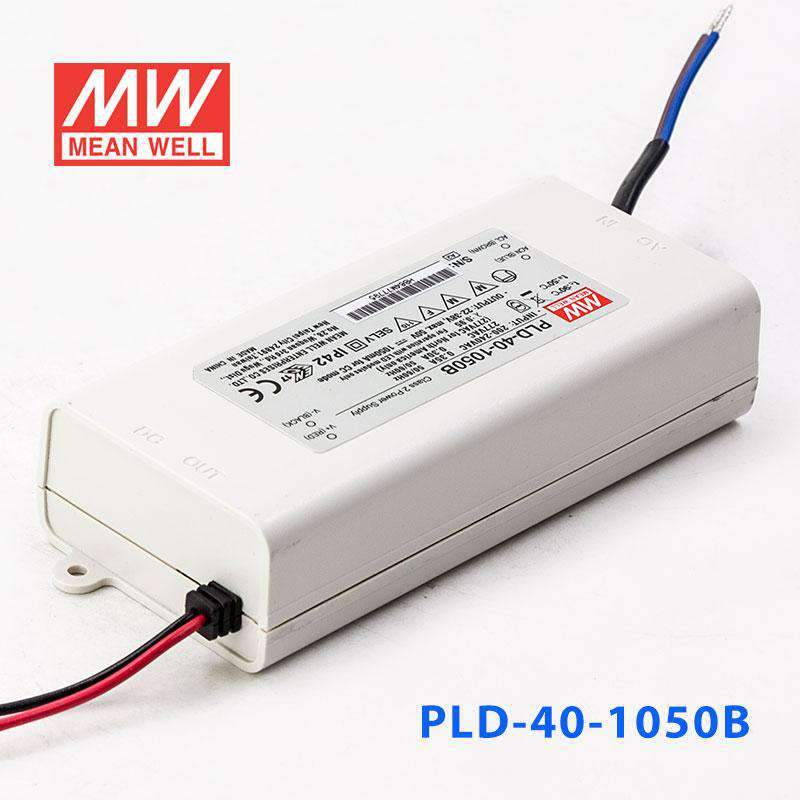

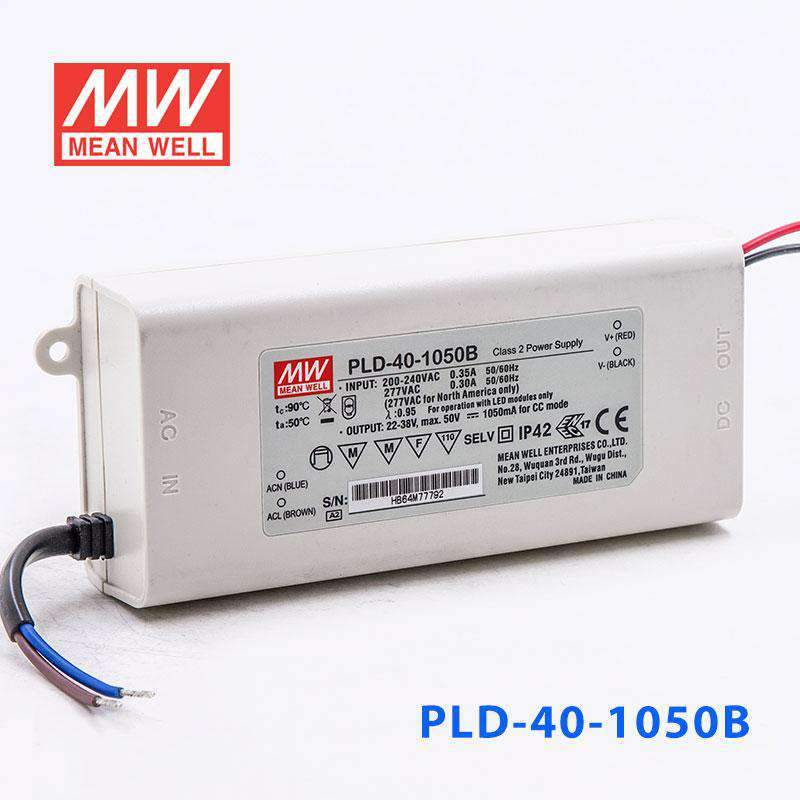

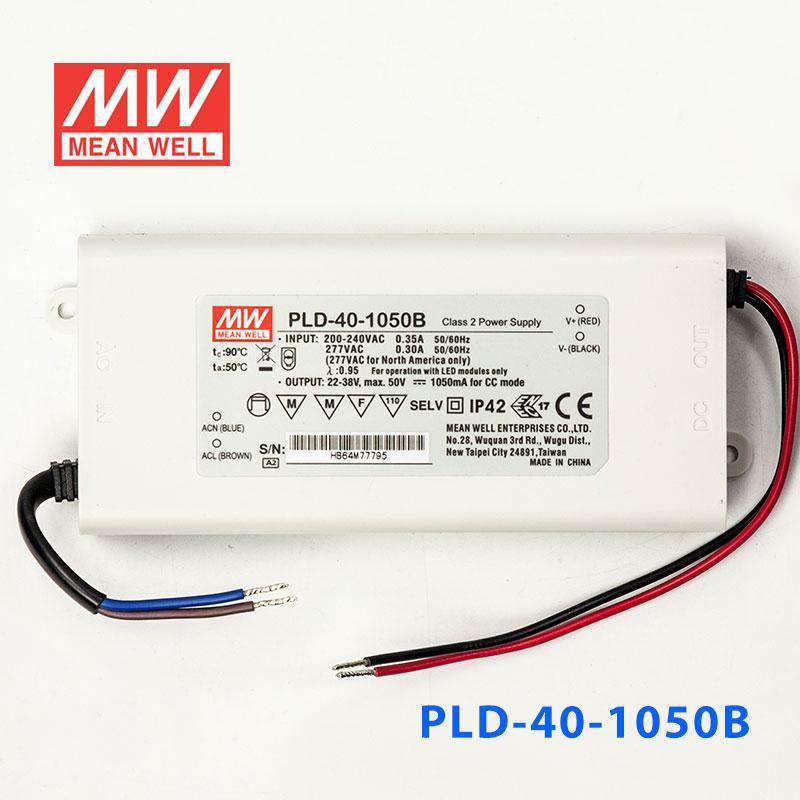

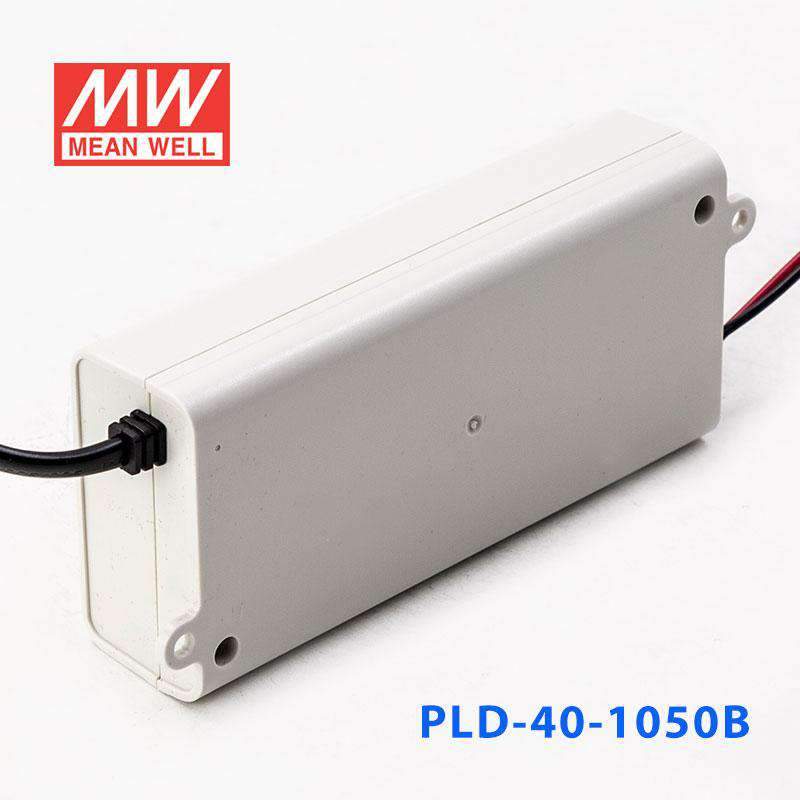

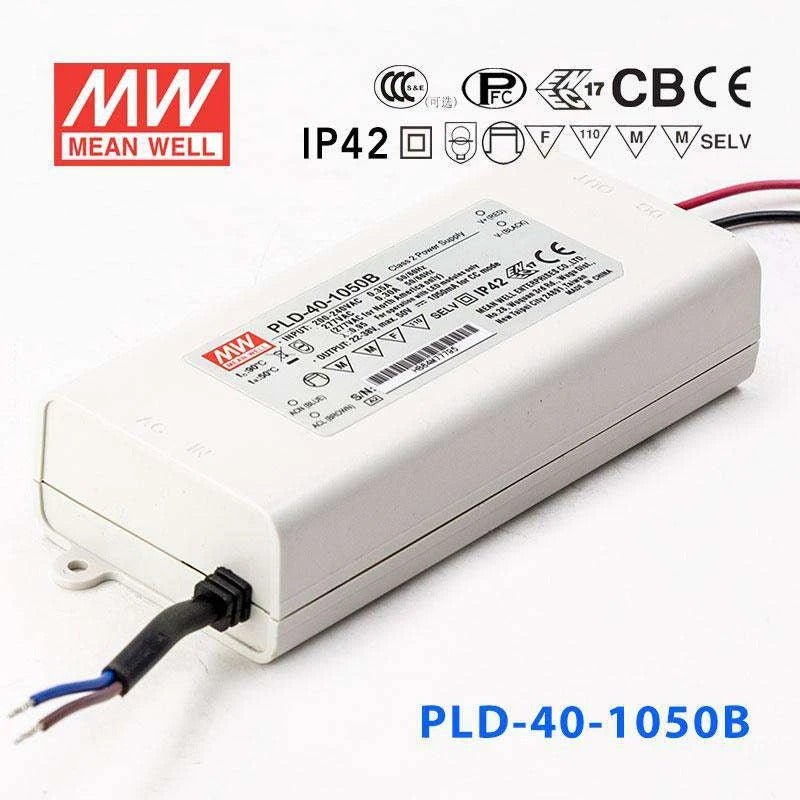

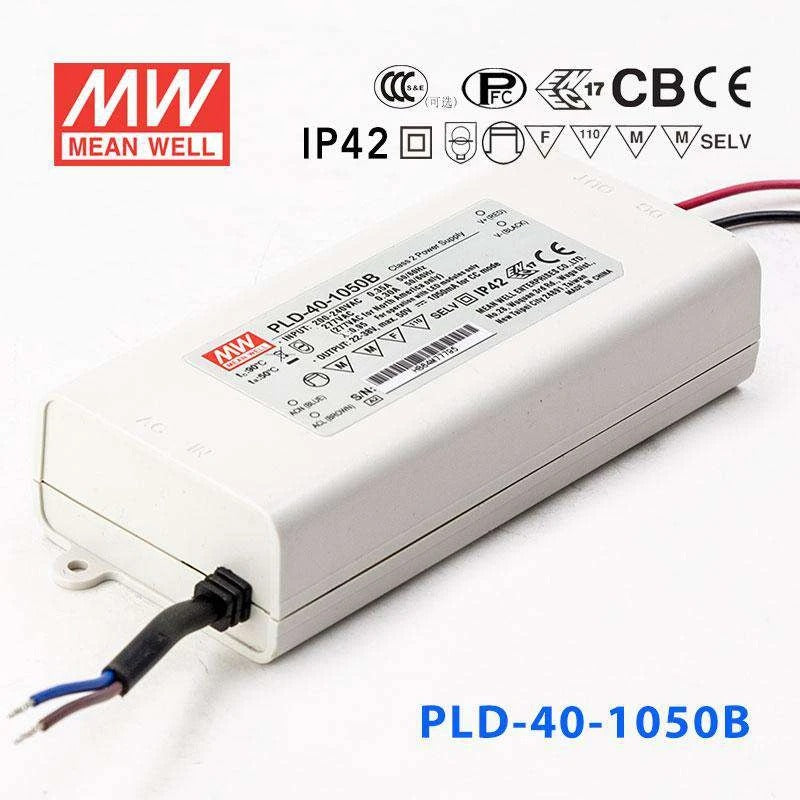

Mean Well PLD-40-1050B Power Supply 40W 1050mA

plastic case, IP42, Class II design without FG
$20.54 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

115VAC or 230VAC input
Built-in active PFC function
Fully isolated plastic case
Constant current design
IP42 design
Class II power unit, no FG
Low cost
Protections: Short circuit / Over temperature
Suitable for indoor LED lighting applications
Cooling by free air convection
3 years warranty

General Specification

AC input voltage range 230VAC (180 ~ 295VAC)
AC inrush current (max.) Cold start, 25A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Short circuit protection Hiccup mode, auto-recovery
Over Temp. Protection 95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature -30 ~ + 50ºC
Safety standards ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input H03VVH2-F 0.75mm² x2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 128x 60x 31.5

Specifications

  • Brand
    Mean Well
  • Series
    PLD Series
  • Power Rating
    39.9 Watt
  • Output Voltage
    38 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    180V~295V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,cUL,EAC,ENEC,FCC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    3 Year
  • Length
    5 in
  • Width
    2.36 in
  • Height
    1.24 in
  • Weight
    0.49 lb

File Downloads
