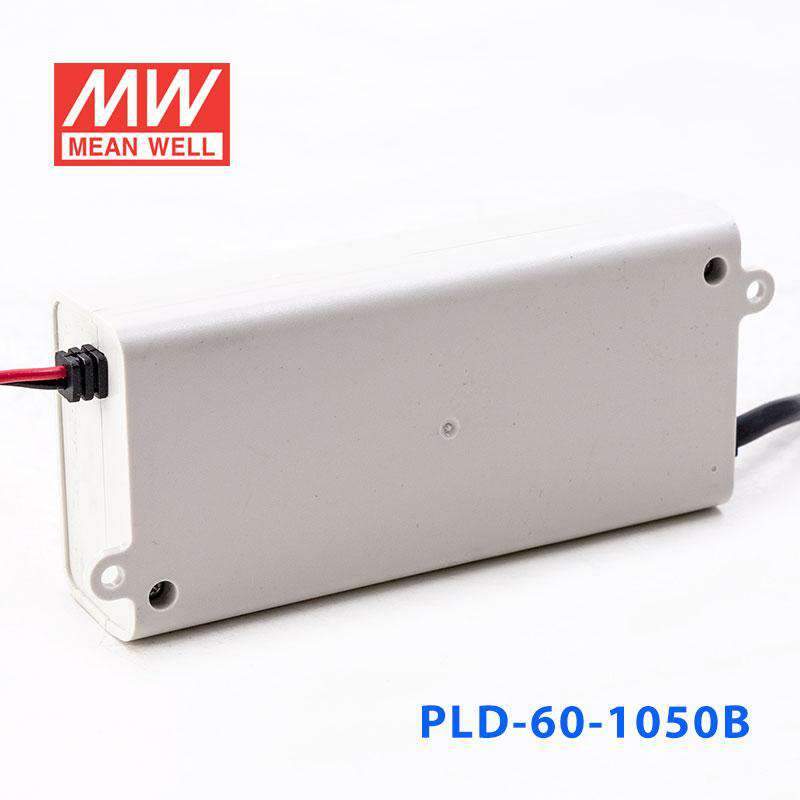

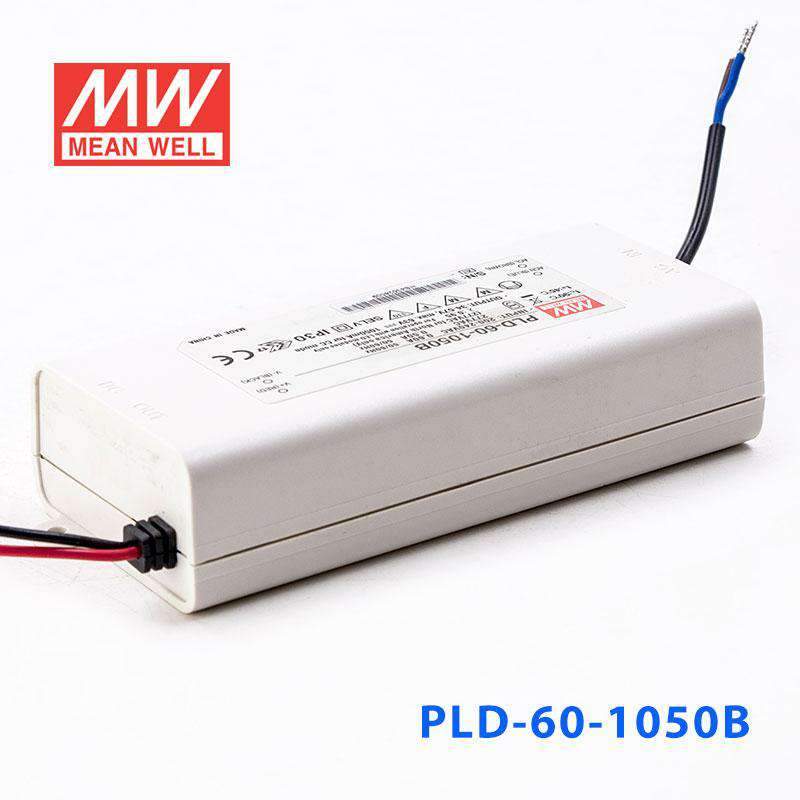

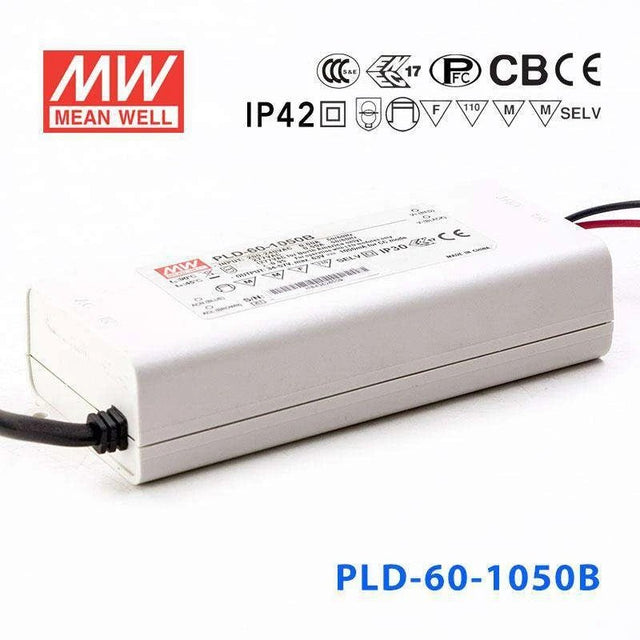

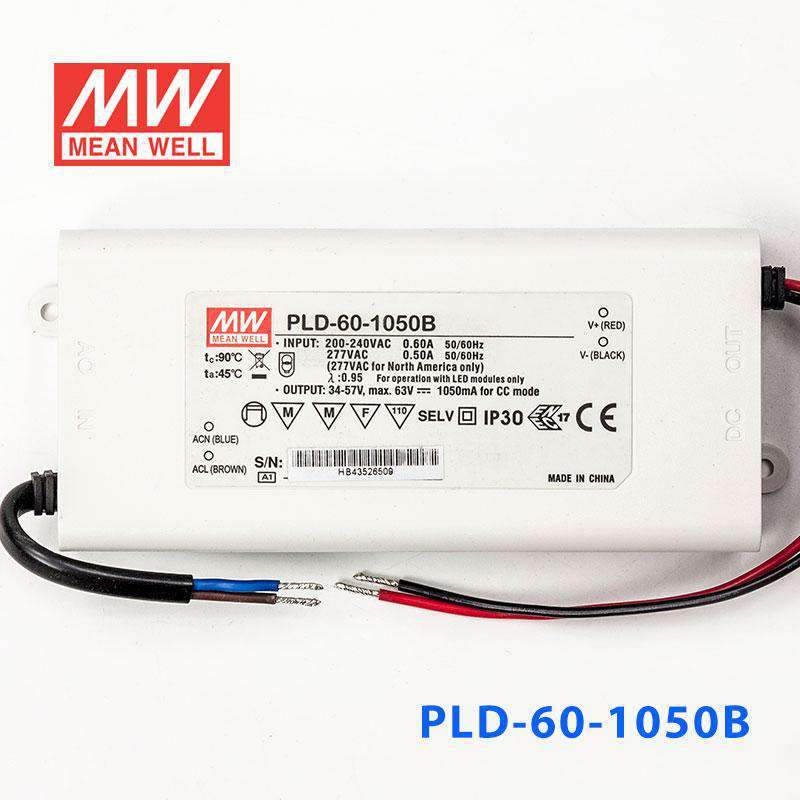

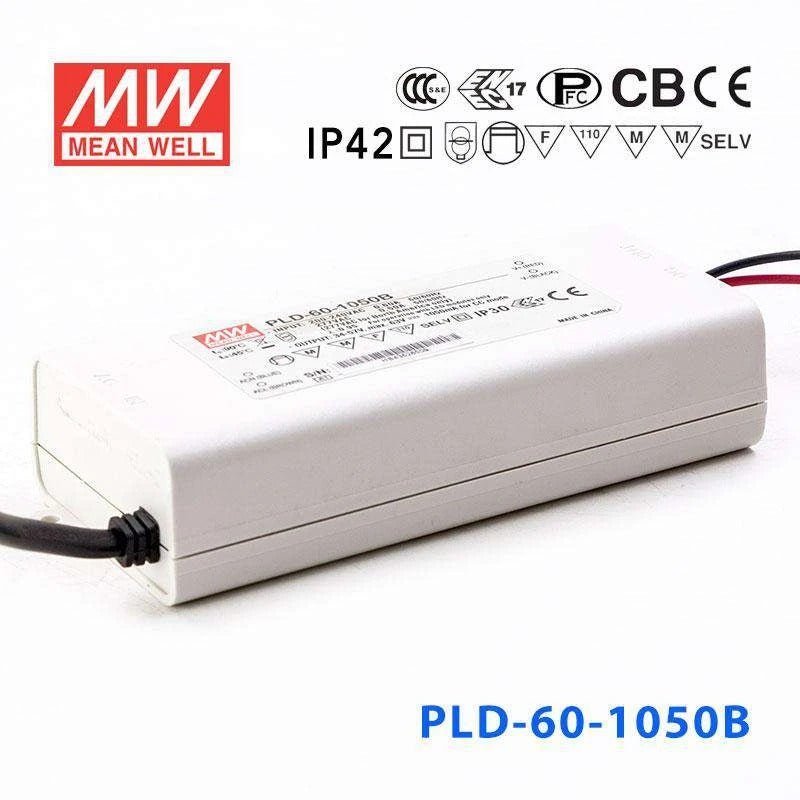

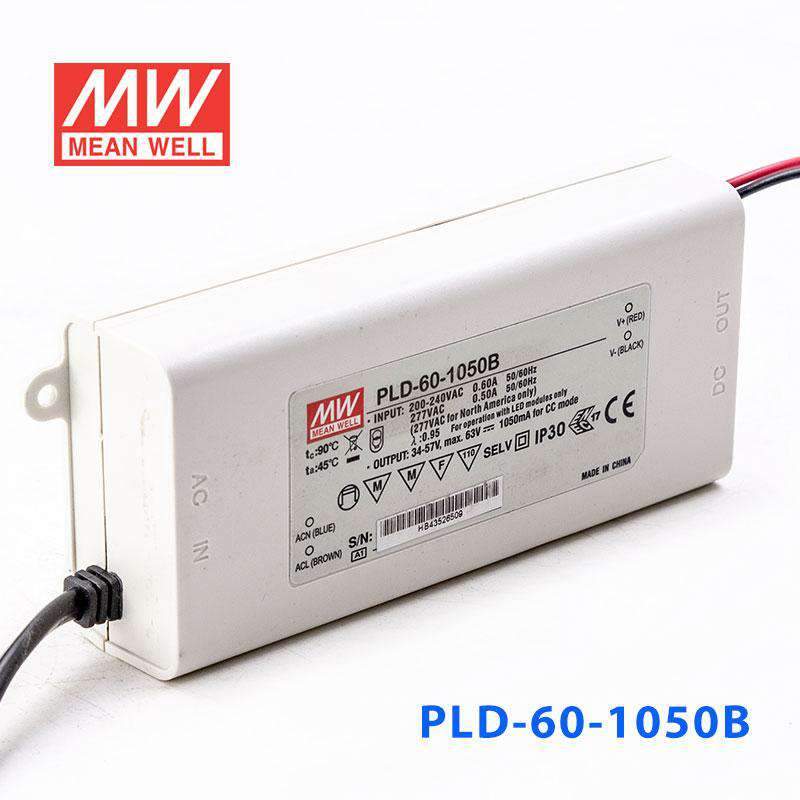

Mean Well PLD-60-1050B Power Supply 60W 1050mA
The PLD-60 is a 60W Mean Well power converter (input range: 70~108V, operating temperature: -30~+45℃).
Key Features
- ✓ Input voltage range: 70~108V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+45℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating59.85 Watt
-
Output Voltage57 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.75 lb
::specification::
Frequently Asked Questions
Can I use the PLD-60-1050B for a high-output LED downlight?
Yes, if the downlight requires 1050mA constant current and the LED load is within the 34-57V CC range. With a 59.85W rating, it is intended for higher-power downlight assemblies than the 40W models in the same family.
Is the PLD-60-1050B suitable for LED signage modules or light engines?
It can be used where the LED module is designed for 1050mA constant current and operates between 34V and 57V. It is not a constant voltage supply, so it should only be paired with constant current LED loads.
Will this driver work for a small LED array with more power demand?
Yes, for a small LED array that needs 1050mA and stays within the 34-57V operating window. The 59.85W rating provides more output capacity for arrays in this current class than the lower-power PLD units.
Can the PLD-60-1050B replace a 1050mA constant current driver in an indoor luminaire?
It can if the original driver also supplied 1050mA constant current and the fixture's LED forward voltage falls within 34-57V. You should also confirm the 128.0 x 60.0 x 31.5 mm dimensions and the 59.85W power level against the existing design.
How do I check LED compatibility with the PLD-60-1050B?
The LED load must be designed for 1050mA constant current and operate inside the 34-57V CC voltage range. The exact number of LEDs depends on each LED's forward voltage, so this driver is sized by current and voltage window rather than by a fixed LED count.
Is the PLD-60-1050B suitable for indoor environments with moderate moisture or dust?
It has an IP42 plastic case and an operating temperature range of -30°C to +45°C, so it fits indoor applications with limited environmental exposure. It is not intended for direct outdoor exposure or washdown conditions.
