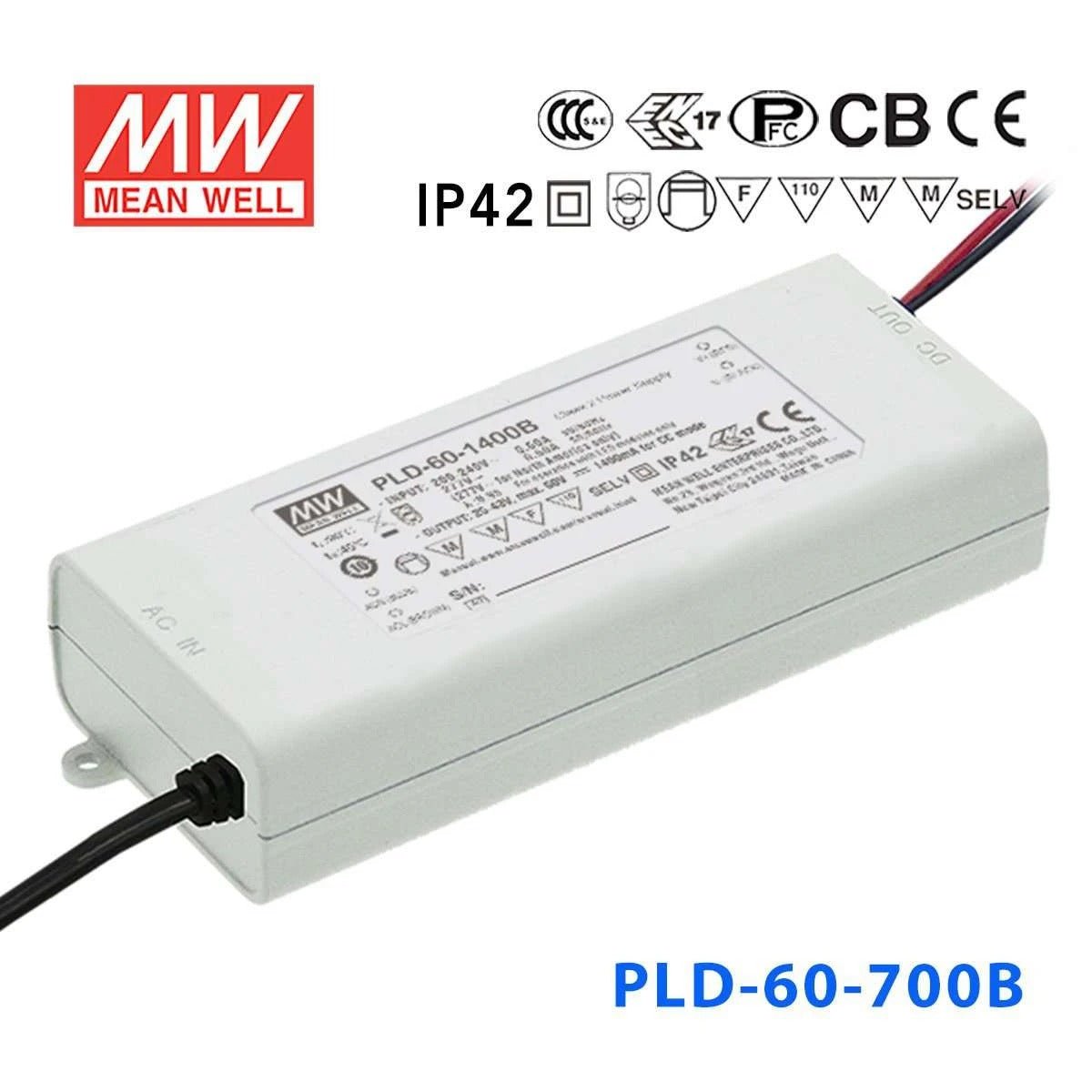

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PLD-60-700B Power Supply 60W 700mA

Name: Mean Well PLD-60-700B Power Supply 60W 700mA
Brand: Mean Well
SKU: PLD-60-700B
Price: 24.15 USD
Availability: InStock

plastic case, IP42, Class II design without FG

SKU:

PLD-60-700B

Datasheet:

PLD-60-700B Datasheet

$24.15 USD

Shipping calculated at checkout.

Quantity Prices

Quantity	Discount	Unit Price
10+	5%	$22.94
20+	7%	$22.46
50+	9%	$21.98
100+	10%	$21.74
200+	11%	$21.49
500+	13%	$21.01
1000+	15%	$20.53

This discount is applied to the total quantity of this product in your cart

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

230VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design

IP42 design

Class II power unit, no FG

Low cost

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 25A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	Shut down o / p voltage, auto-recover
Working temperature	-30 ~ + 45ºC
Safety standards	ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	H03VVH2-F 0.75mm² x2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

60.2 Watt
Output Voltage

86 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~45°C
Warranty

3 Year
Length

5.04 in
Width

2.36 in
Height

1.24 in
Weight

0.75 lb

File Downloads

Specification Sheet

Spec Sheet (PLD-60-700B)(EN)

Certificates

Test Reports

Test Report(PLD-60-700B)(EN)

Catalog

Mean Well LED Driver Catalog
