Mean Well

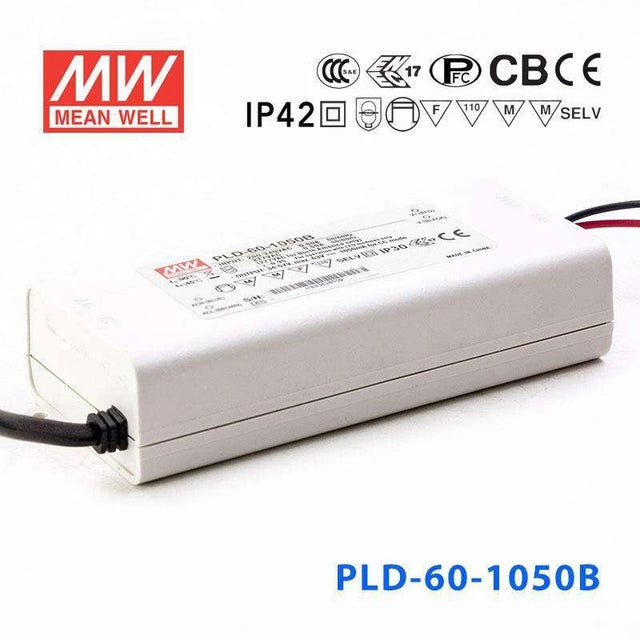

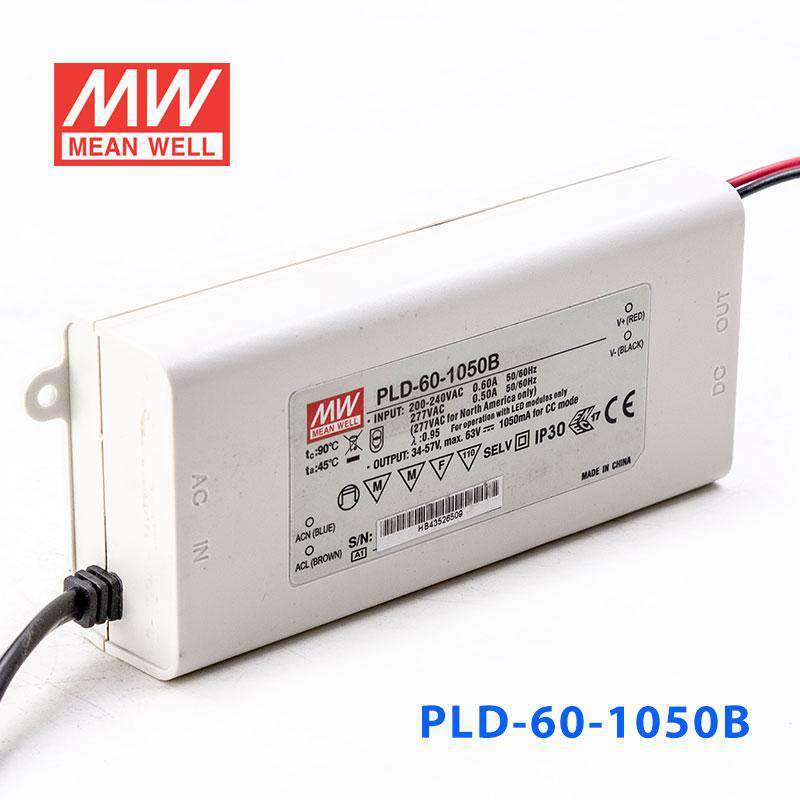

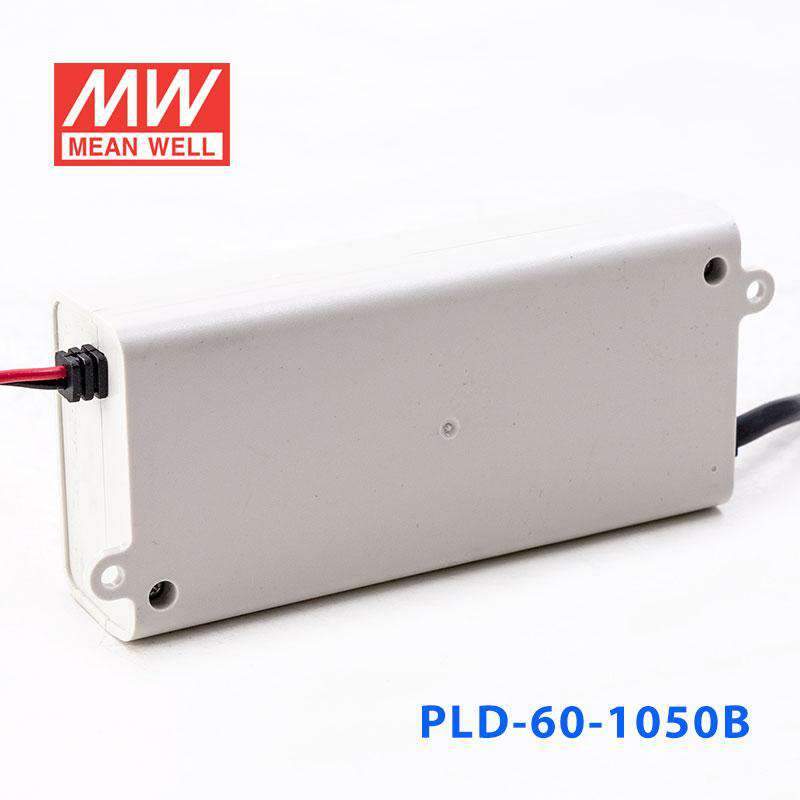

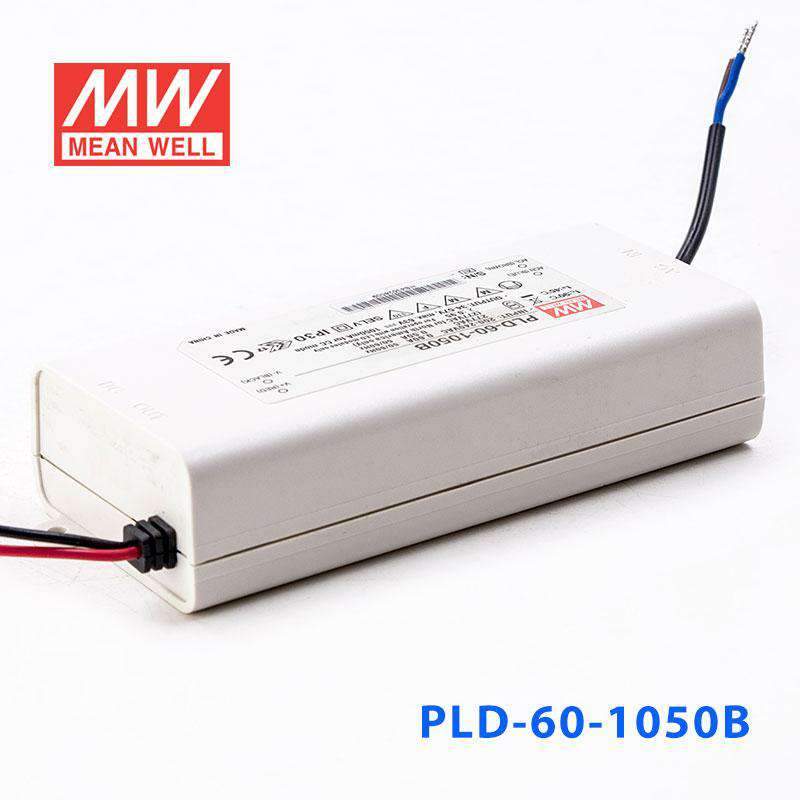

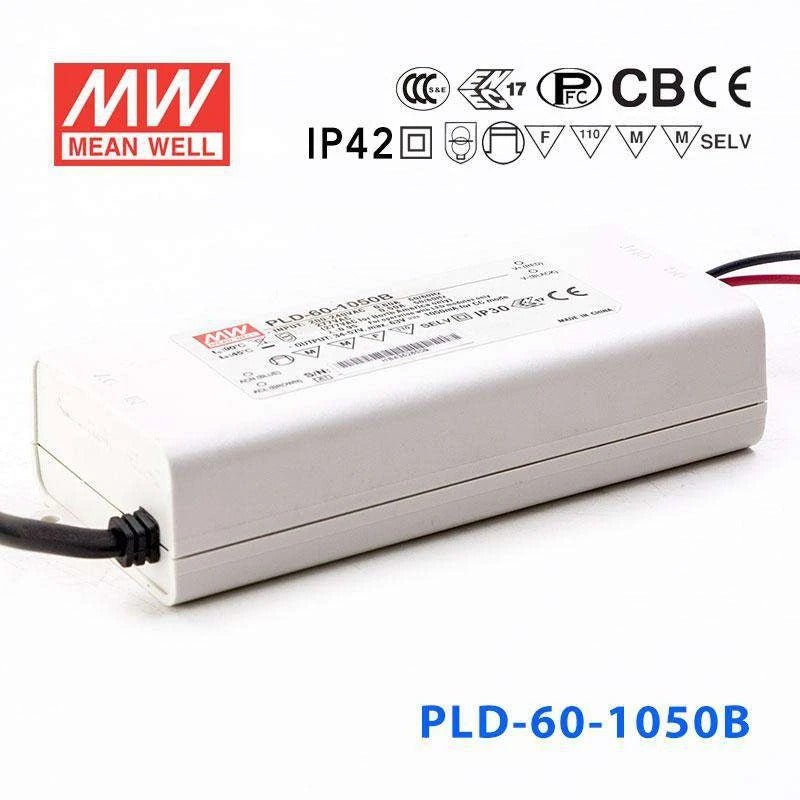

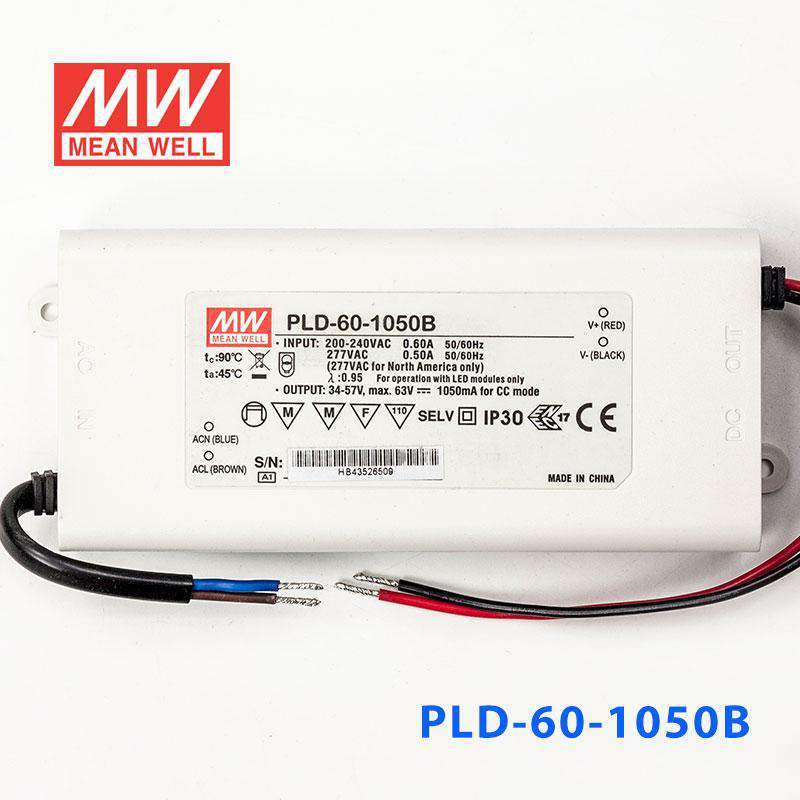

Mean Well PLD-60-1050B Power Supply 60W 1050mA

Name: Mean Well PLD-60-1050B Power Supply 60W 1050mA
Brand: Mean Well
SKU: PLD-60-1050B
Price: 25.42 USD
Availability: InStock

4 units in stock

$25.42 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 25A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	Shut down o / p voltage, auto-recover
Working temperature	-30 ~ + 45ºC
Safety standards	ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	H03VVH2-F 0.75mm² x2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5
