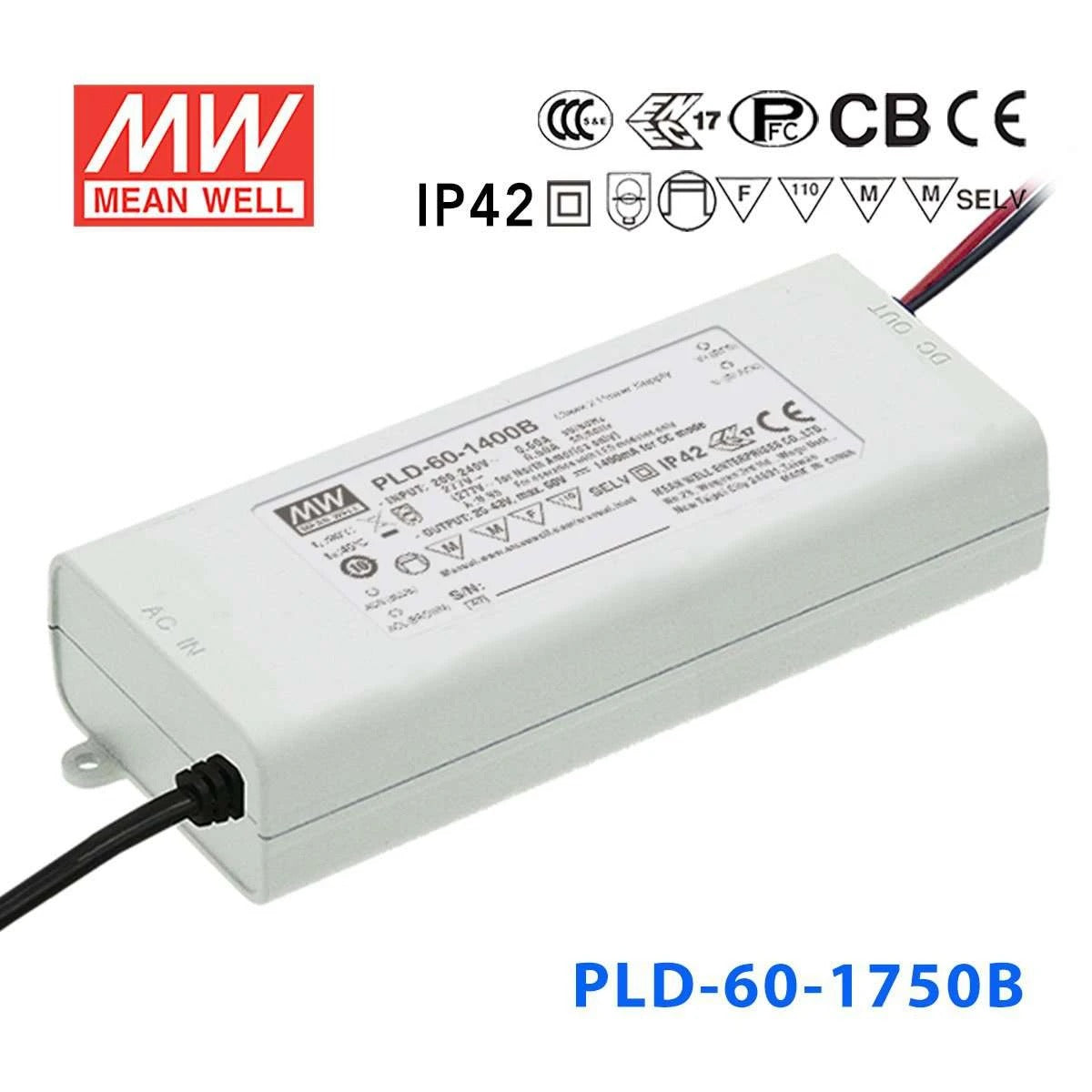

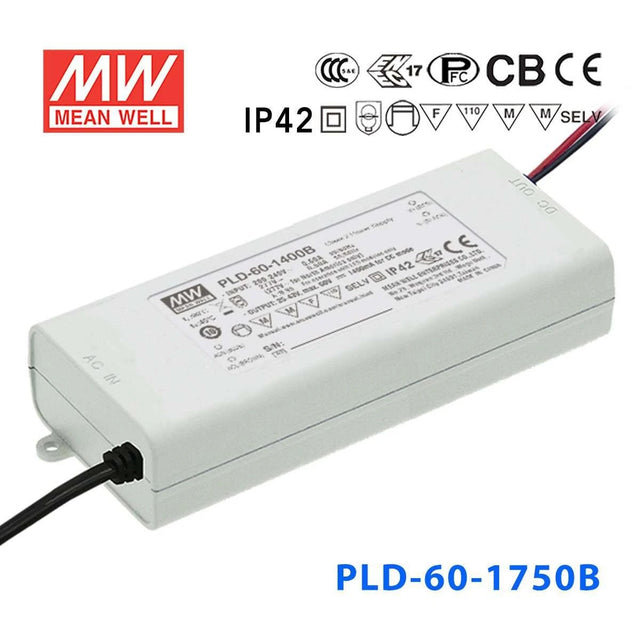

Mean Well PLD-60-1750B Power Supply 60W 1750mA
The PLD-60 is a 60W Mean Well power converter (input range: 70~108V, operating temperature: -30~+45℃).
Key Features
- ✓ Input voltage range: 70~108V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+45℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating59.5 Watt
-
Output Voltage34 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.75 lb
::specification::
Frequently Asked Questions
Can I use the PLD-60-1750B for a high-output LED downlight?
Yes, this model is suited to constant current LED downlights that require 1750mA and operate within a 20-34V constant current output range. Its 59.5W rating makes it a fit for higher-power downlight assemblies rather than low-power constant voltage lighting.
Is the PLD-60-1750B a good choice for LED signage modules?
It can be used for signage modules when the module string is designed for constant current operation at 1750mA and falls within 20-34V. It is not a constant voltage power supply, so it should be matched to constant current signage loads rather than 12V or 24V constant voltage modules.
Can this driver run a small LED array for architectural or display lighting?
Yes, if the LED array is a constant current load rated for 1750mA and its forward voltage stays within the 20-34V range. With 59.5W available, it is better suited to compact higher-power arrays than low-current indicator or decorative arrays.
How do I know if the PLD-60-1750B is compatible with my LEDs?
This is a constant current driver with a 1750mA output and a 20-34V constant current range. Compatibility depends on your LED load being designed for constant current operation, and the number of LEDs in series depends on each LED's forward voltage rather than a fixed LED count.
Is the PLD-60-1750B suitable for damp or enclosed locations?
It has an IP42 plastic case, so it has limited protection against ingress and is generally better suited to indoor applications where direct water exposure is not expected. Its operating temperature range is -30°C to +45°C, which helps for protected locations that still see cold or moderately warm conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PLD-60 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PLD-60-700B Power Supply 60W 700mA | 60.2W | 86V | 0.7A | Indoor | $24.15 | View |
| Mean Well PLD-60-500B Power Supply 60W 500mA | 54W | 108V | 0.5A | Indoor | $22.88 | View |
| Mean Well PLD-60-2400B Power Supply 60W 2400mA | 60W | 25V | 2.4A | Indoor | $24.15 | View |
| Mean Well PLD-60-2000B Power Supply 60W 2000mA | 60W | 30V | 2A | Indoor | $22.88 | View |
| Mean Well PLD-60-1400B Power Supply 60W 1400mA | 60.2W | 43V | 1.4A | Indoor | $22.88 | View |
| Mean Well PLD-60-1050B Power Supply 60W 1050mA | 59.85W | 57V | 1.05A | Indoor | $22.88 | View |
