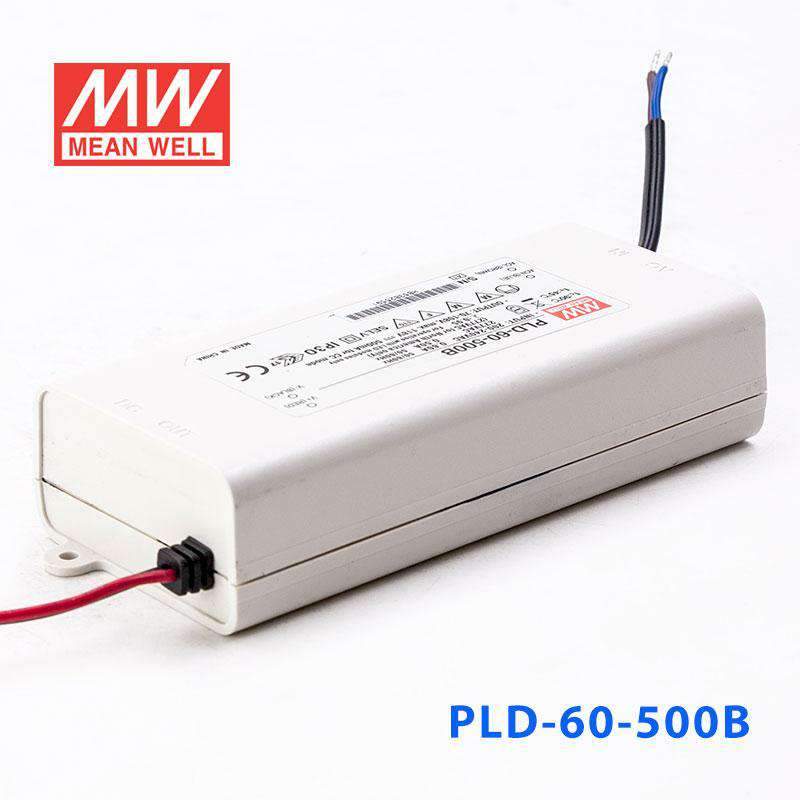

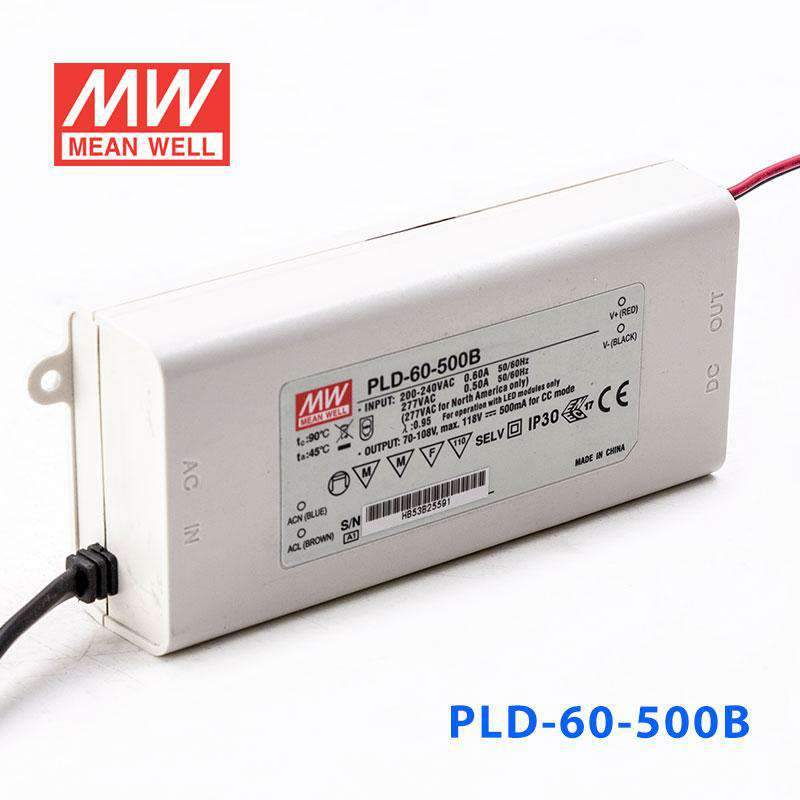

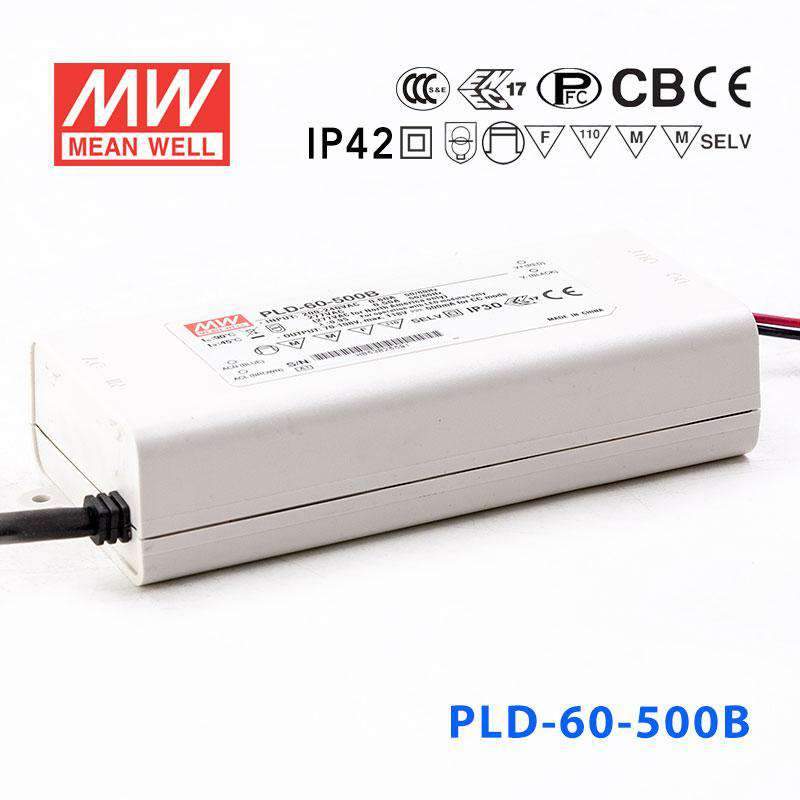

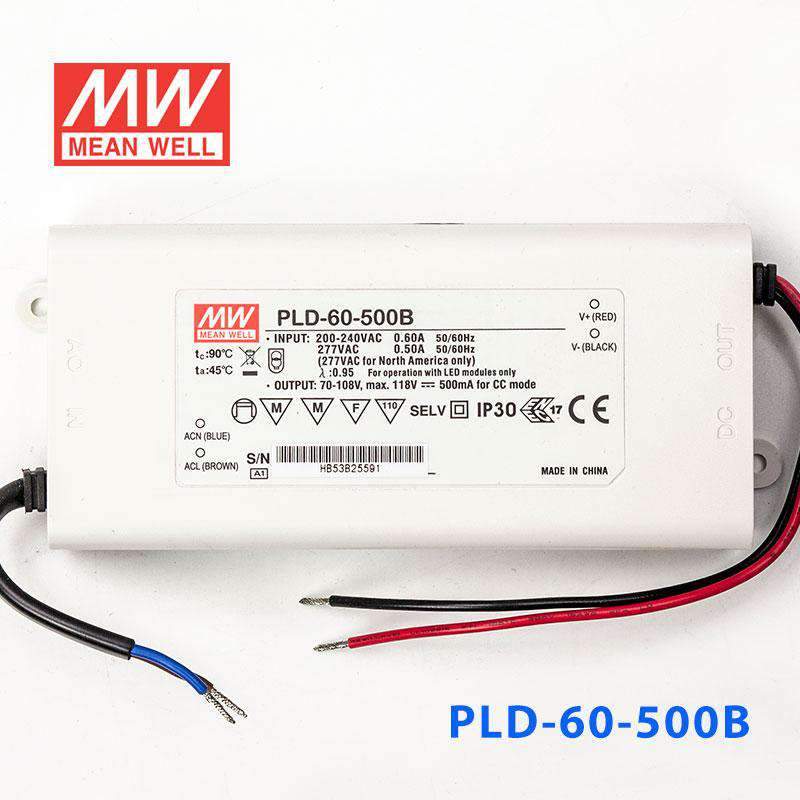

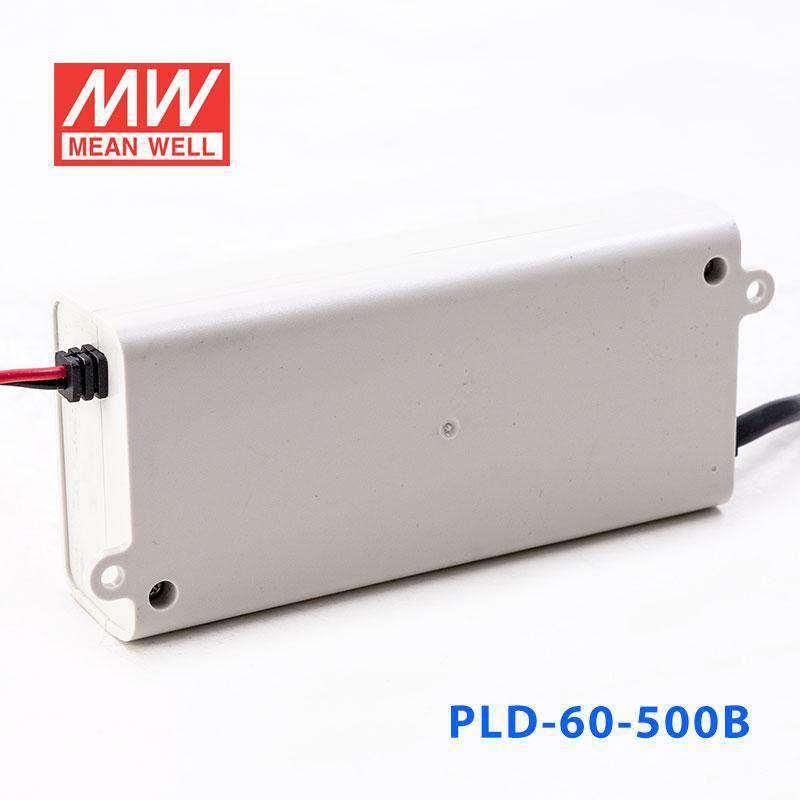

Mean Well PLD-60-500B Power Supply 60W 500mA
The PLD-60 is a 60W Mean Well power converter (input range: 70~108V, operating temperature: -30~+45℃).
Key Features
- ✓ Input voltage range: 70~108V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+45℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating54 Watt
-
Output Voltage108 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height1.24 in
-
Weight0.75 lb
::specification::
Frequently Asked Questions
Can I use the PLD-60-500B for LED downlights with a long series string?
Yes, this model fits constant current downlight assemblies that require 500mA and need a higher forward voltage, because its output range is 70-108V. That makes it more appropriate for longer series LED strings than low-voltage, high-current light engines.
Is the PLD-60-500B suitable for signage modules with higher total forward voltage?
It can be, if the signage modules are arranged as a constant current 500mA load and the full LED load falls within 70-108V. It is not a constant voltage driver, so it should not be used as a substitute for a fixed-voltage signage power supply.
Would this driver work for a small LED array built as a high-voltage series load?
Yes, when the array is designed for 500mA constant current operation and the total forward voltage sits within 70-108V. Its 54W rating supports higher-voltage constant current arrays rather than low-voltage constant current boards.
How can I tell if the PLD-60-500B matches my LED load?
The PLD-60-500B provides 500mA constant current with a 70-108V output range. The LED load must be designed for constant current use, and the number of LEDs in series depends on each LED's forward voltage instead of a fixed LED quantity.
Is the PLD-60-500B acceptable for enclosed indoor fixtures?
It is generally suited to protected indoor applications, with an operating temperature range of -30°C to +45°C and an IP42 plastic case. IP42 does not indicate full weatherproofing, so enclosed or sheltered locations are a better match than exposed outdoor use.
