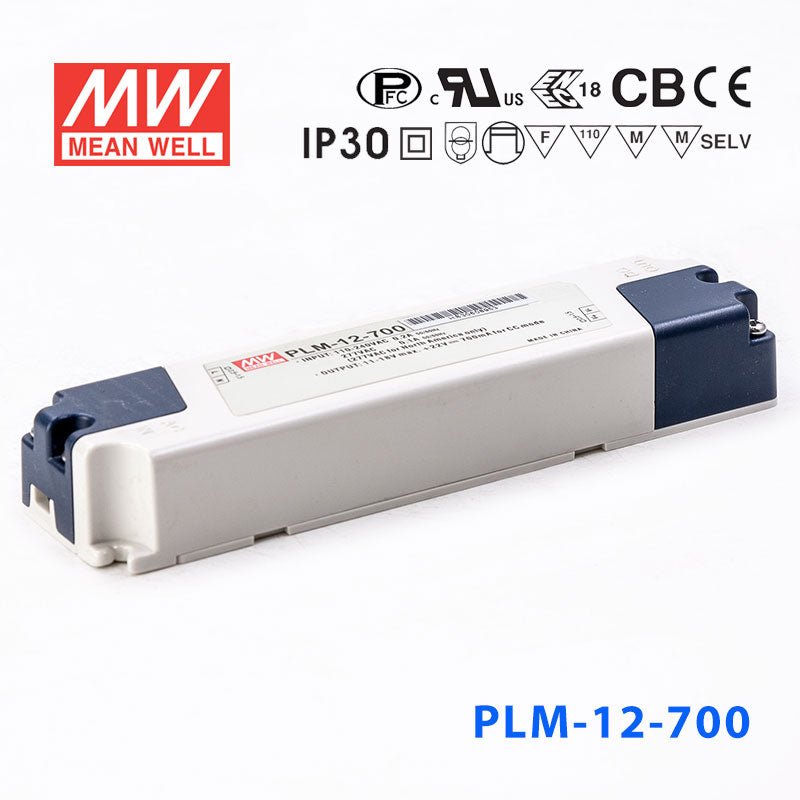

Mean Well PLM-12E-700, 700mA Constant Current with PFC - Terminal Block
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLM-12E-700, 700mA Constant Current with PFC - Terminal B...
The PLM-12E is a 12W Mean Well DIN rail power converter with a 145mm profile (input range: 110~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ 145mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 110~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1 (for E type only) ,EAC TP TC 004, IP30
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLM Series
-
Power Rating12.6 Watt
-
Output Voltage22 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.5 in
-
Height0.87 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Mean Well PLM-12E-700?
The PLM-12E-700 is a constant current LED driver rated for 700mA output. It is designed for LED applications that require a fixed current rather than a fixed voltage supply. This model is part of Mean Well's PLM series and includes built-in active PFC.
What output level does the PLM-12E-700 provide?
This model is rated at 12.6W with a nominal output voltage of 22V and a rated output current of 700mA. Those published ratings make it suitable for LED loads designed around a 700mA constant current driver. It is not a dimmable model.
Does the PLM-12E-700 support dimming control?
No, the PLM-12E-700 does not include a dimming control function. It is intended for applications where a non-dimming constant current driver is acceptable. Buyers needing adjustable light output should compare it with dimmable alternatives instead.
What input range is supported on the PLM-12E-700?
The product data identifies this as the E type, which uses an AC input range of 180 to 295VAC. That makes it appropriate for higher-voltage mains environments within that stated range. It also supports the corresponding DC input range shown in the product description.
Is the PLM-12E-700 suitable for enclosed or indoor lighting products?
The PLM-12E-700 uses a fully isolated plastic case with an IP30 design and cooling by free air convection. Those characteristics make it better aligned with protected indoor equipment rather than exposed wet-location use. Its compact 0.126 kg weight can also help in space-conscious fixture designs.
What operating temperature range does the PLM-12E-700 support?
This model is rated for operation from -30°C to 50°C. That range supports use across many indoor commercial and industrial lighting environments, provided the surrounding conditions stay within specification. Thermal conditions still matter because the unit relies on free air convection for cooling.
What protection and warranty information is listed for the PLM-12E-700?
The published product information lists short circuit protection for this model. Mean Well also specifies a 2-year warranty period. These details support its positioning as a cost-effective, reliable constant current LED driver.
