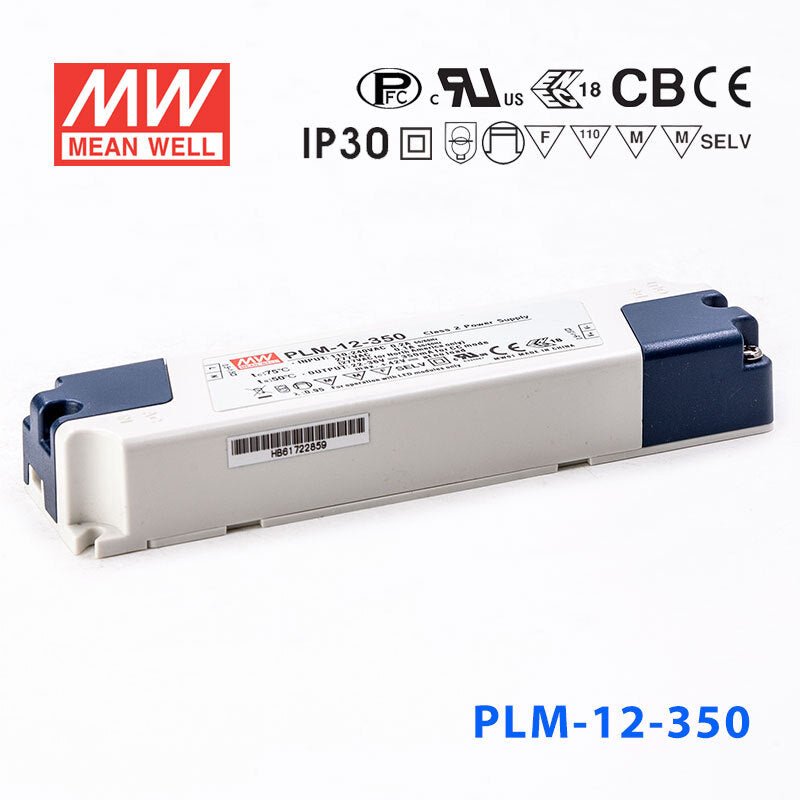

Mean Well PLM-12E-350, 350mA Constant Current with PFC - Terminal Block

Q: What type of LED driver is the Mean Well PLM-12E-350?

The PLM-12E-350 is a constant current LED driver rated at 350mA. It delivers up to 42V output with a 12.6W power rating. This model is intended for loads that are specified for constant current operation rather than fixed-voltage output.

Q: What kinds of applications is the PLM-12E-350 suited for?

This model is suited to LED lighting applications that require a 350mA constant current driver. Its compact plastic case, Class II design, and free-air convection cooling make it a practical choice for enclosed lighting products and general indoor commercial use. It is best matched to applications that stay within its 12.6W and 42V limits.

Q: Is the PLM-12E-350 a dimmable LED driver?

No. The listed dimming control for this model is none, so it is a non-dimming driver. If your project requires brightness control, you would need a different driver designed with a supported dimming interface.

Q: What input range does the PLM-12E-350 support?

This E-version model is specified for an AC input range of 180 to 295VAC, with a DC input range of 254 to 417VDC. That makes it appropriate for higher-voltage mains environments within that range. It also includes built-in active PFC as part of its design.

Q: Can I use the PLM-12E-350 with any LED product?

Not with every LED product. It should be used with LED loads that require 350mA constant current and operate within the driver's available output range up to 42V. It is not the right choice for products that call for a constant voltage power supply.

Q: What environmental conditions is the PLM-12E-350 designed for?

The PLM-12E-350 is rated for operation from -30°C to 50°C. It uses free-air convection cooling and has an IP30 plastic enclosure, so it is generally intended for protected indoor environments rather than exposed outdoor conditions. The isolated plastic case also supports Class II use.

fully isolated plastic case, Class II design without FG, push terminal I/O

SKU:

PLM-12E-350

$14.01 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

230VAC only or Full range(up to 295VAC) models available

Built-in active PFC function

Constant current design

Protections: Short circuit

Cooling by free air convection

Fully isolated plastic case

IP30 design

Class II power unit, no FG

Class 2 power unit (Blank type only)

No load power consumption < 0.5W

High reliability, low cost

2 years warranty

General Specification

AC input voltage range	Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
AC inrush current (max.)	COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
DC adjustment range
Current adjustment range
Short circuit protection	Hiccup mode, auto-recovery
Over temperature protection	Hiccup mode, auto-recovery
Setup time	Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+50ºC
Safety standards	UL8750, ENEC EN61347-1,2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection	DG235-7.2-2P
Dimension (LxWxH) (mm)	1453822mm
Packing	60pcs/8.6Kg

Specifications

Brand

Mean Well
Series

PLM Series
Power Rating

12.6 Watt
Output Voltage

42 Volt
Rated Current

0.35 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

5.71 in
Width

1.5 in
Height

0.87 in
Weight

0.28 lb
