Mean Well PLM-12E-1050, 1050mA Constant Current with PFC - Terminal Block

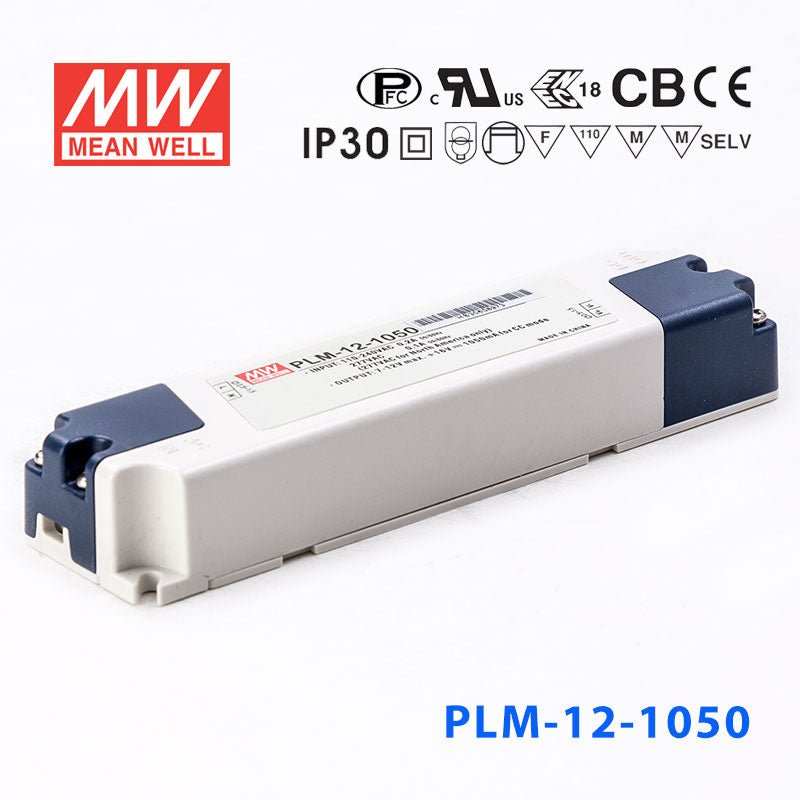

The PLM-12E-1050 is a constant current LED driver intended for LED lighting applications that require a fixed 1050mA output. It is a 12.6W model in Mean Well's PLM series and is aimed at compact power supply use cases where active PFC and an isolated plastic case are desirable.

This model is rated for 12.6W output power with a rated output current of 1050mA. The listed output voltage is 16V, and the product description identifies it as a constant current design with built-in active PFC.

No. The specified dimming control for this model is "none," so it is not presented as a dimmable LED driver in the provided product data. Buyers needing dimming should compare it with a version that explicitly lists a dimming interface.

The product description states that the E type supports an AC input voltage range of 180 to 295VAC, or 254 to 417VDC. It is also described as a 230VAC-only or full-range family depending on model variant, so the E version is suited to that higher AC input range.

It is specified for operation from -30°C to 50°C, which makes it appropriate for a range of indoor or protected equipment environments within that temperature window. The housing is an isolated plastic case with IP30 design, so it should be evaluated accordingly for the intended environment.

The PLM-12E-1050 is described as having short circuit protection and cooling by free air convection. The product description also highlights high reliability, low no-load power consumption below 0.5W, and a 2-year warranty.
