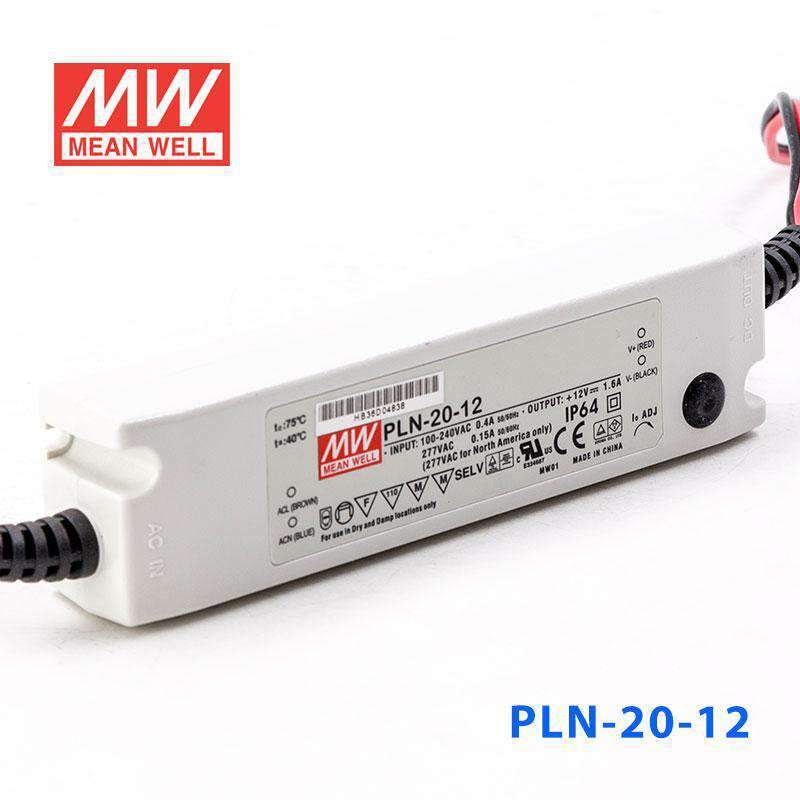

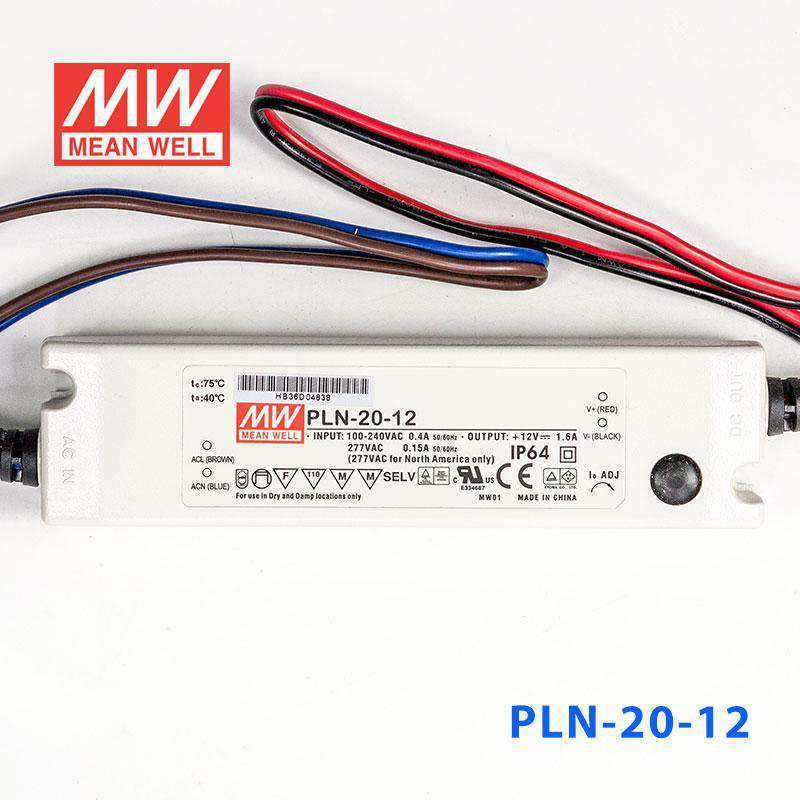

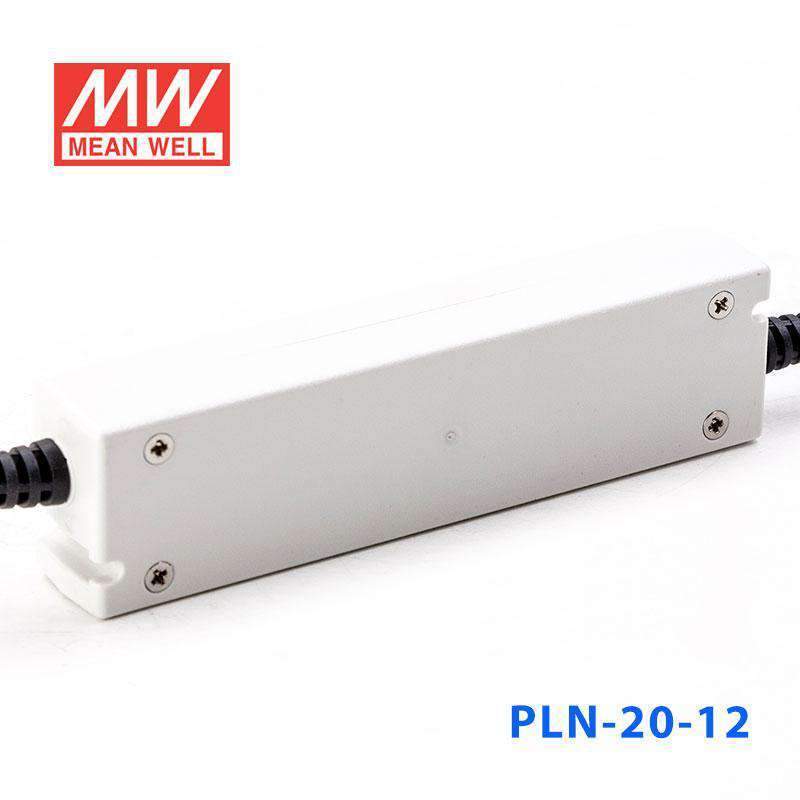

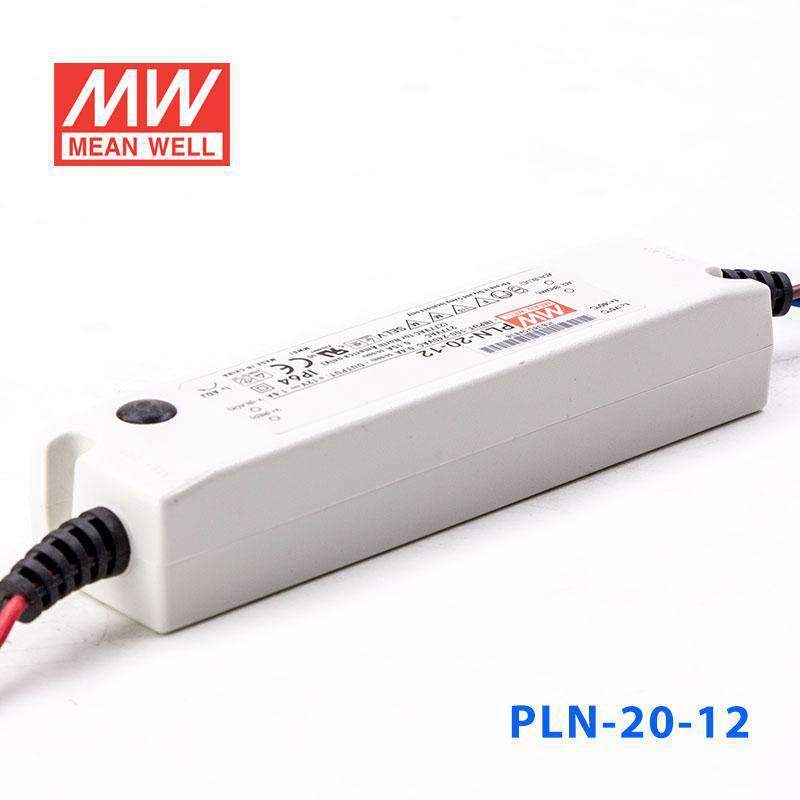

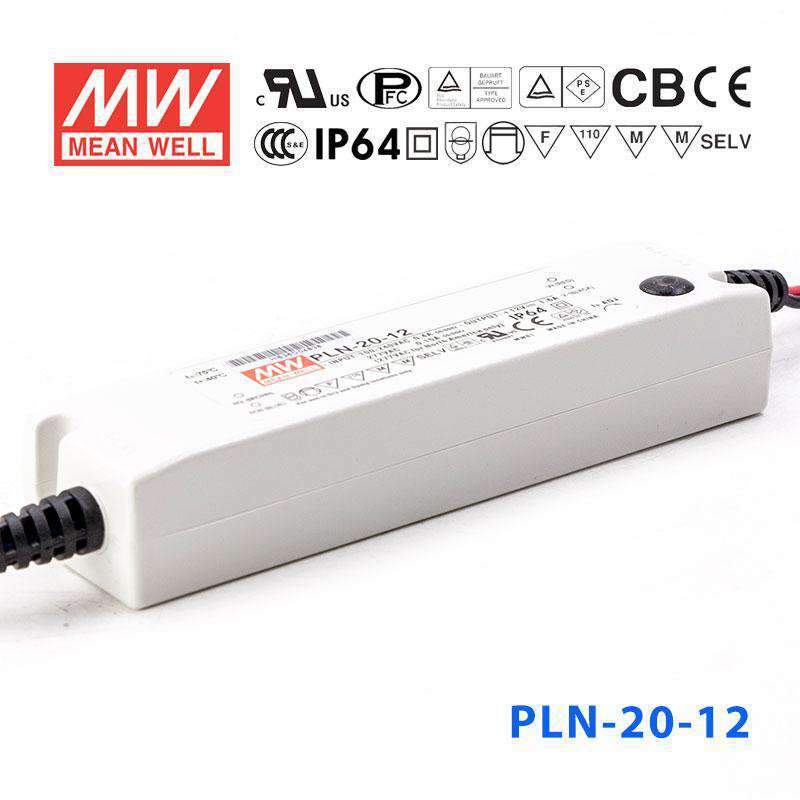

Mean Well PLN-20-12 Power Supply 20W 12V - IP64
The PLN-20 is a 20W Mean Well power converter (input range: 90~277VAC, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 90~277VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC61347-1, IEC61347-2-13, TUV EN61347-1, EN61347-2-13, UL8750,CSA C22.2 No. 250.0-08,J61347-1, J61347-2-13, IP64
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating19.2 Watt
-
Output Voltage12 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~277V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length5.85 in
-
Width1.52 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the PLN-20-12 for a short 12V LED strip run in a sign or display?
It is intended for 12V lighting loads up to 19.2W and 1.6A, with a 9-12V constant-current range. For a short sign or display run, check that the 12V LED product is compatible with constant-current operation and does not exceed the driver's output limits.
Is the PLN-20-12 a fit for small illuminated channel letters or compact signage?
Yes, the product features specifically state it is suitable for signage applications. Its 12V output and 19.2W capacity make it better suited to smaller compatible sign lighting loads than larger multi-section jobs.
Can this power supply be used for low-power 12V accent lighting?
It can be used for low-power 12V lighting loads as long as the load stays within 19.2W and 1.6A. The IP64 housing also makes it more appropriate for locations where dust or splashing water may be present than an open indoor-only unit.
How many meters of 12V LED strip can the PLN-20-12 run?
Maximum strip length is calculated as 19.2W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is a 12V load that is compatible with this driver's operating mode.
Is the PLN-20-12 suitable for wet or outdoor conditions?
The IP64 rating indicates protection against dust and splashing water, so it is suited to harsher environments than a non-enclosed driver. It should still be used within its -30°C to +60°C operating temperature range and not in submerged conditions.
