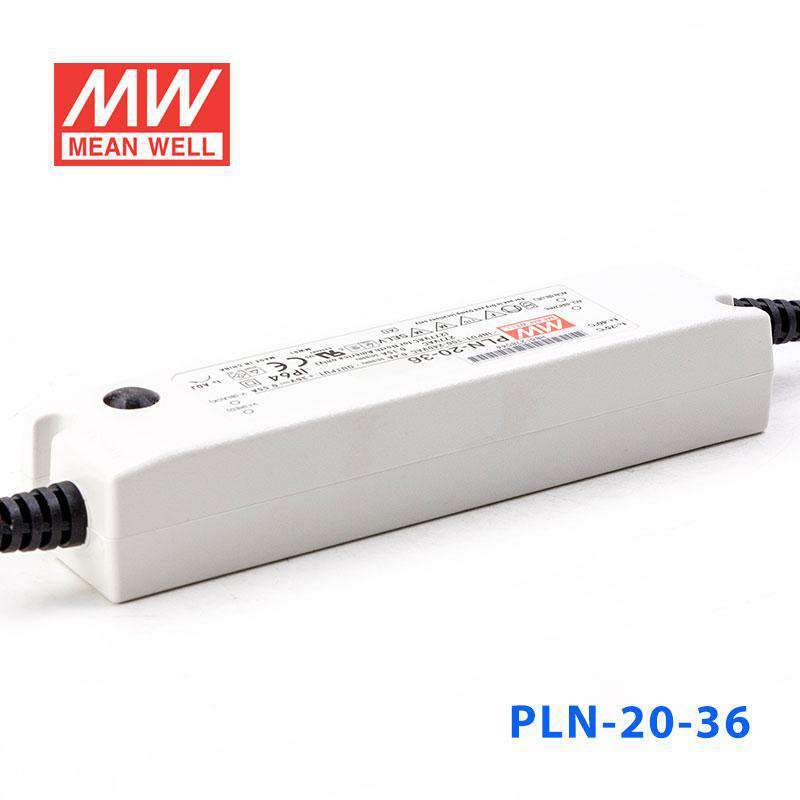

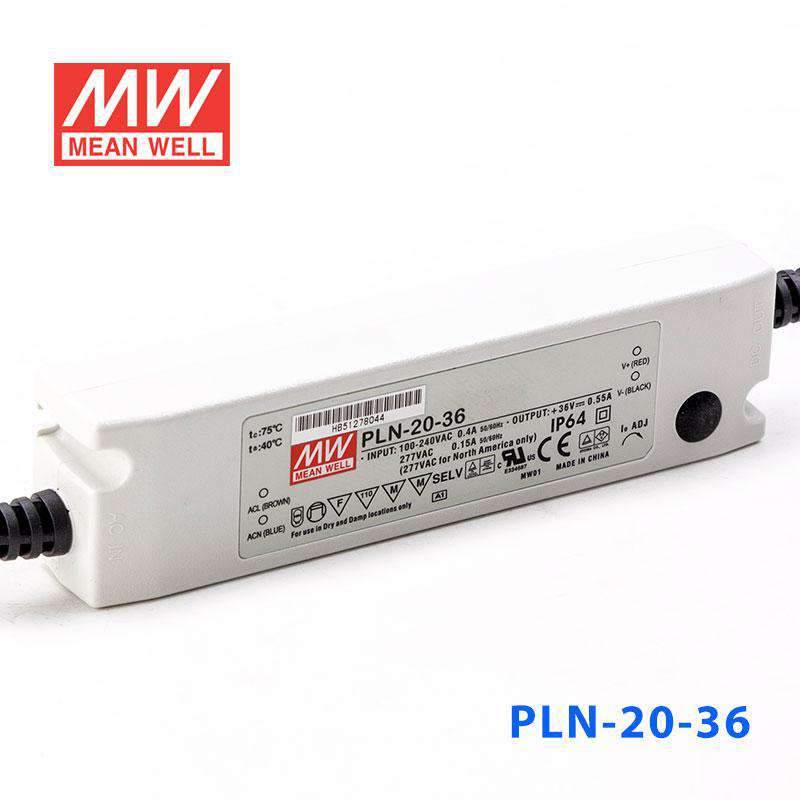

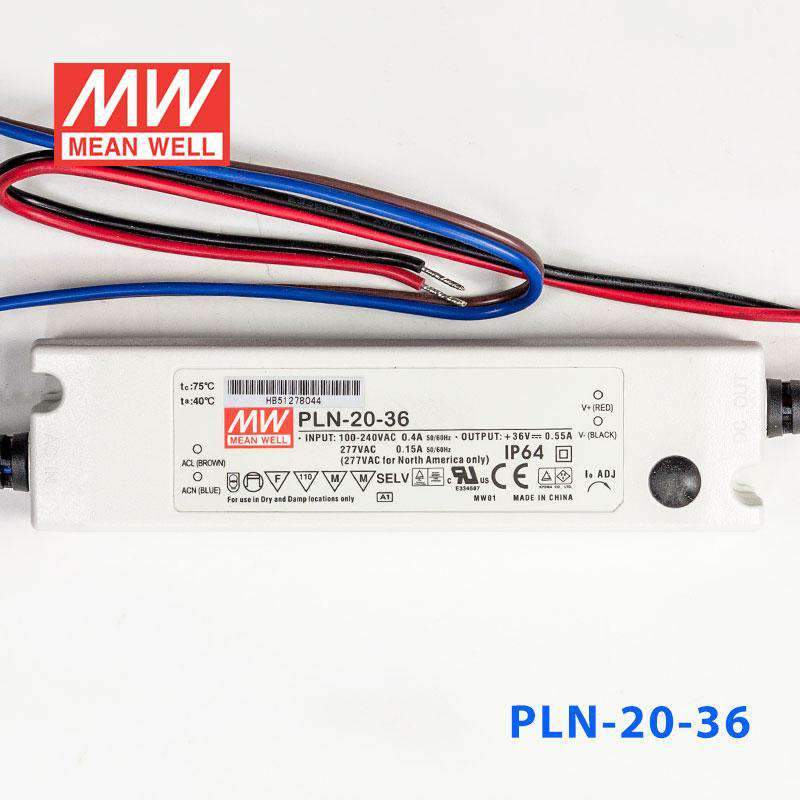

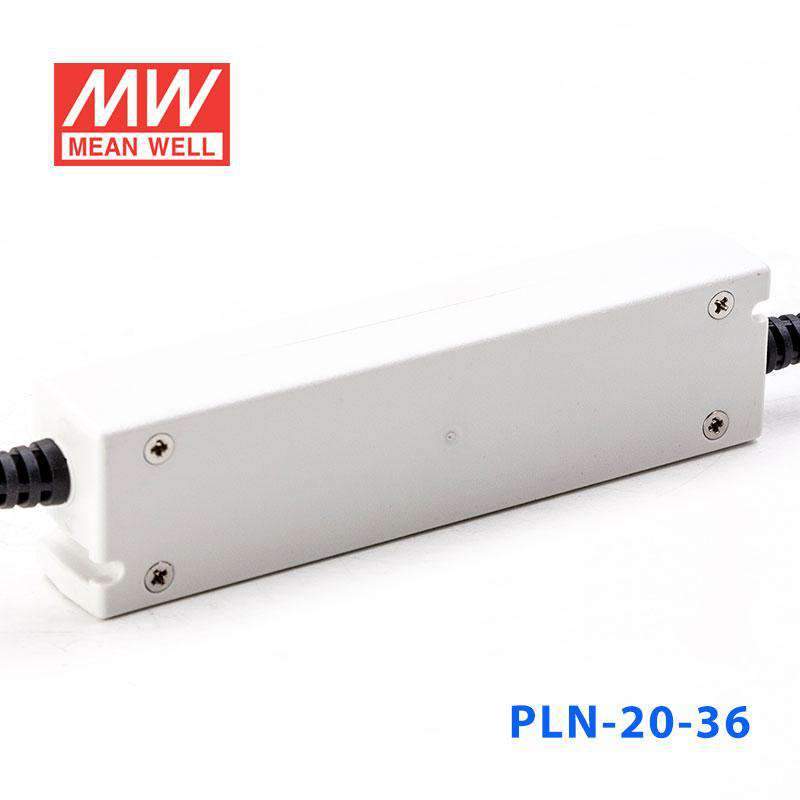

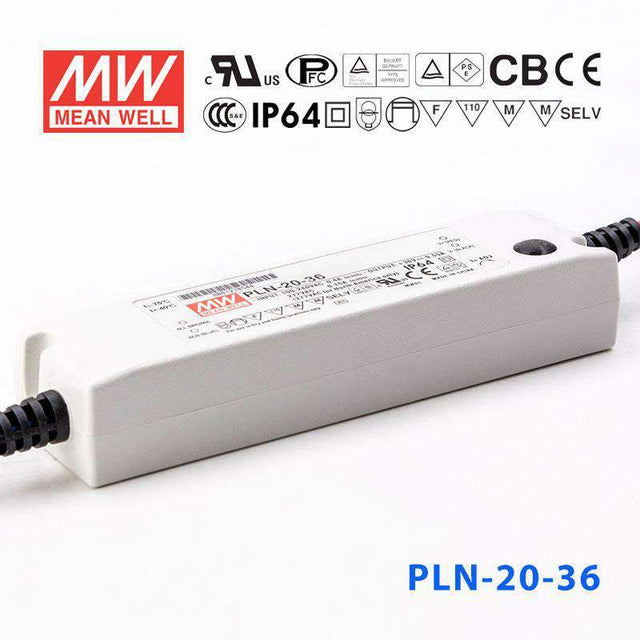

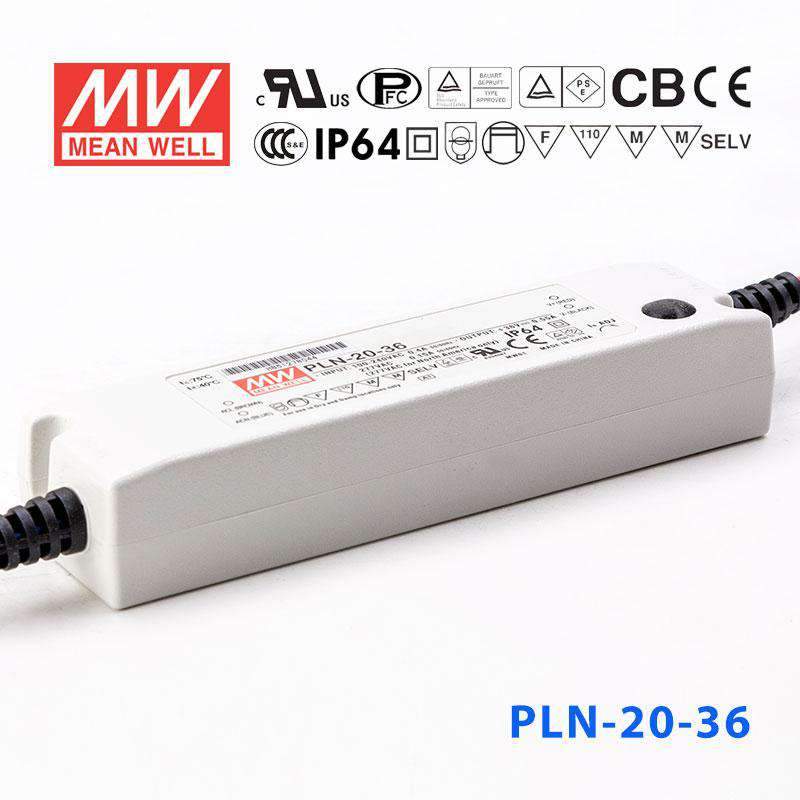

Mean Well PLN-20-36 Power Supply 20W 36V - IP64
The PLN-20 is a 20W Mean Well power converter (input range: 90~277VAC, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 90~277VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC61347-1, IEC61347-2-13, TUV EN61347-1, EN61347-2-13, UL8750,CSA C22.2 No. 250.0-08,J61347-1, J61347-2-13, IP64
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating19.8 Watt
-
Output Voltage36 Volt
-
Rated Current0.55 Ampere
-
Input Voltage90V~277V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty2 Year
-
Length5.85 in
-
Width1.52 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the PLN-20-36 for 36V LED strip or linear lighting?
It can be used with 36V lighting loads up to 19.8W and 0.55A, provided the load fits the 27-36V constant-current range. For strip or linear lighting, verify the product is designed to work with constant-current output before choosing this driver.
Is the PLN-20-36 suitable for narrow signage or slim lightbox lighting?
Yes, the features list it as suitable for signage applications. Its 36V output and 19.8W rating make it a fit for smaller compatible sign or lightbox lighting loads.
Can this driver be used for compact 36V architectural accent lighting?
It can support compact 36V lighting loads that stay within 19.8W and 0.55A. The IP64 enclosure also helps where dust and splashing water are part of the operating environment.
How do I calculate the maximum 36V LED strip length for the PLN-20-36?
Use the formula 19.8W divided by your strip's rated watts per meter. Check your strip rated power per meter, and confirm the strip is a 36V load compatible with this driver's constant-current operation.
Can the PLN-20-36 handle outdoor conditions?
Its IP64 rating indicates protection against dust and splashing water, so it is suited to tougher environments than a non-enclosed driver. The ambient temperature still needs to remain within the specified -30°C to +60°C range.
