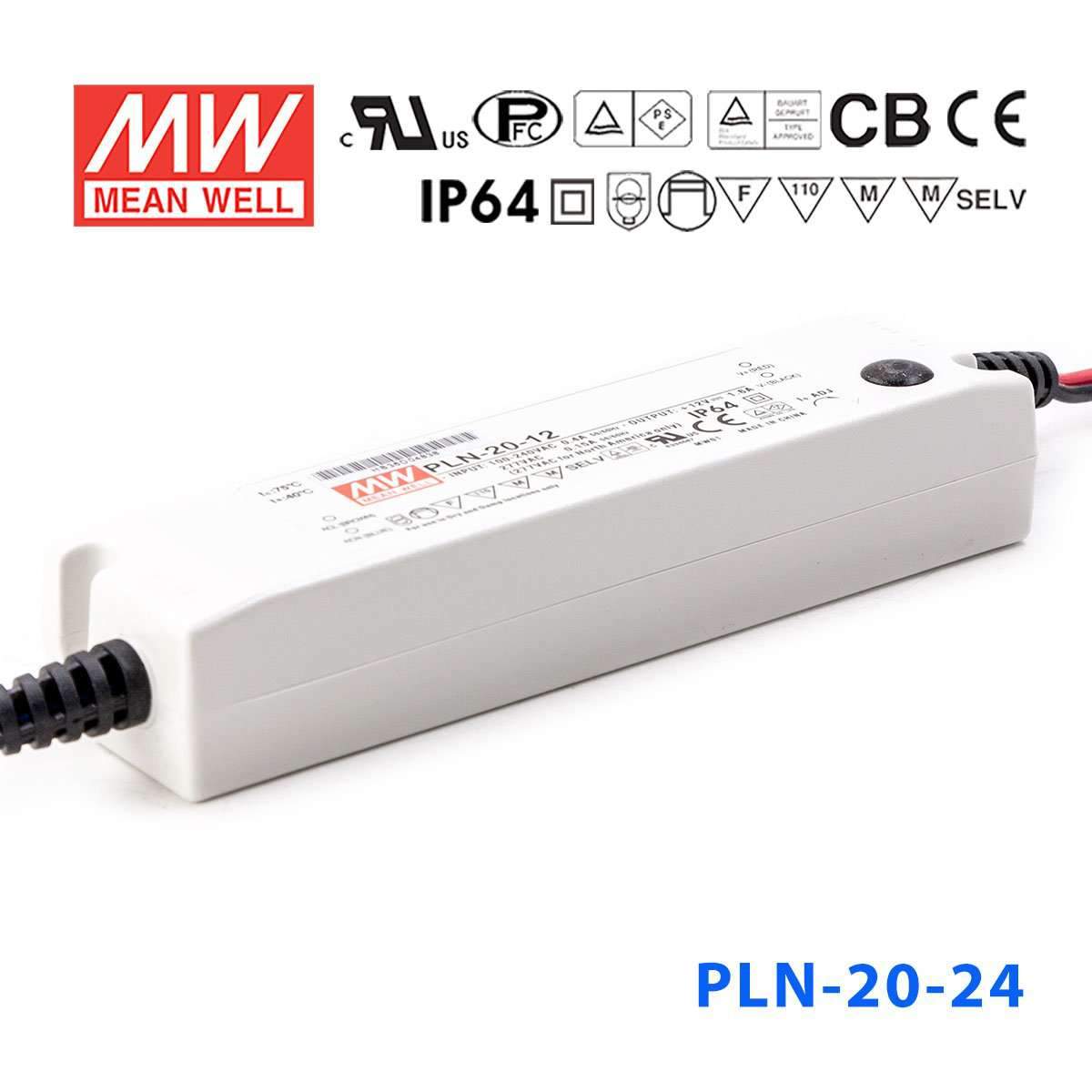

Mean Well PLN-20-24 Power Supply 20W 24V - IP64

fully isolated plastic case, IP64, suitable for signage applications
SKU:
PLN-20-24

$21.03 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range
Fully isolated plastic case with IP64 level
Built-in active PFC function, PF>0.9 for 75% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
Built-in constant current limiting circuit (C.V.+C.C. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Current protection level
Cooling by free air convection
Suitable for LED lighting and moving sign applications
2 years warranty

General Specification

AC input voltage range 90~277VAC; 127~392VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range None
Current adjustment range 75%~100%
Over current protection 95%~110% constant current limiting, auto-recovery
Over voltage protection 105%~142% rated output voltage
Setup, rise, hold up time 2300ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+60ºC
Safety standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
EMC standards EN55015, EN55022 class B (PLN-60/100 only), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, UL1015 18AWGx2C (32cm)
Connection Output UL rated, UL1015 18AWGx2C (32cm)
Dimension (LxWxH) (mm) 148.5x 38.5x 28

Specifications

  • Brand
    Mean Well
  • Series
    PLN Series
  • Power Rating
    19.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.8 Ampere
  • Input Voltage
    90V~277V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CCC,CE,EAC,PSE,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -30°C~60°C
  • Warranty
    2 Year
  • Length
    5.85 in
  • Width
    1.52 in
  • Height
    1.1 in
  • Weight
    0.4 lb

File Downloads

::specification::
