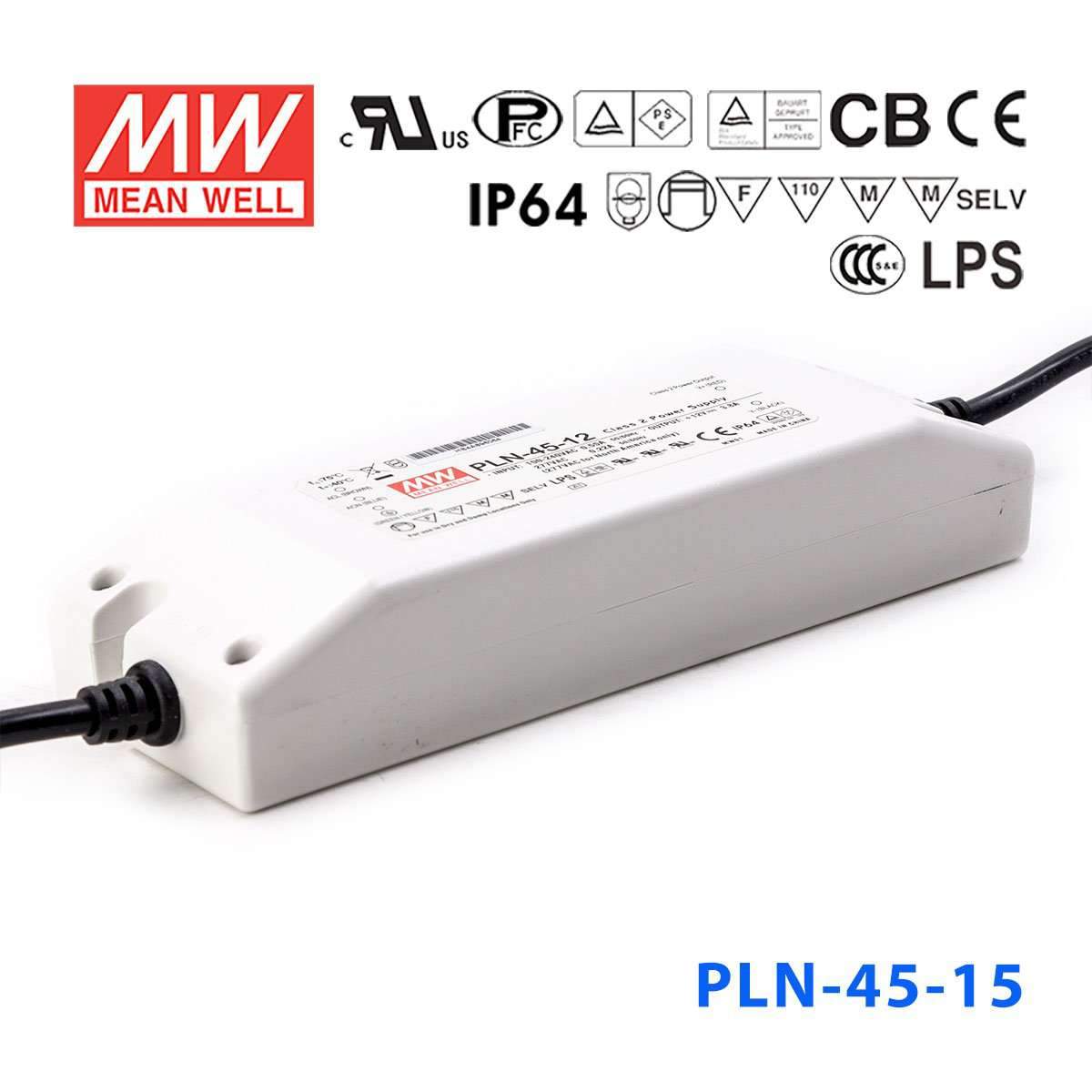

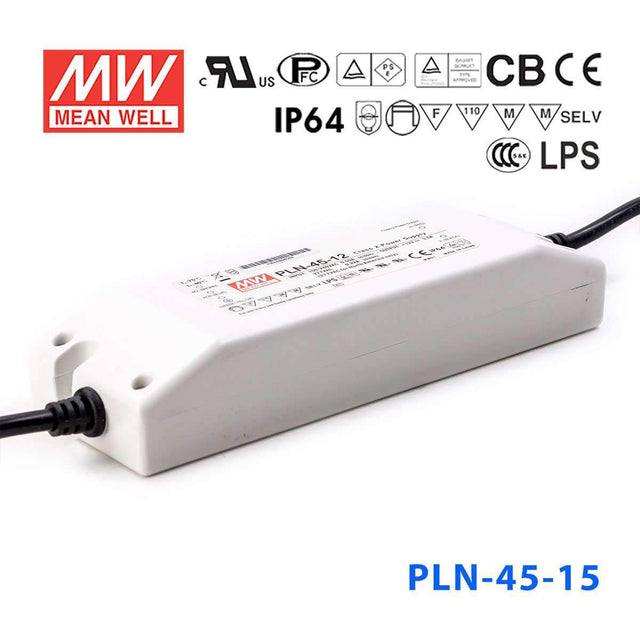

Mean Well PLN-45-15 Power Supply 45W 15V - IP64
The PLN-45 is a 45W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-45-15 for a 15V LED strip lighting project?
Yes, if the LED strip system is rated for 15V and its total load stays within 45W and 3A. This model provides 15V output, with a constant current range of 11-15V, so you should also confirm the strip's electrical requirements match the driver.
Is the PLN-45-15 suitable for 15V illuminated signage or sign box lighting?
It can be a fit for 15V signage loads that stay within 45W maximum output and 3A output current. The product is specifically noted as suitable for signage applications, and the IP64 enclosure helps where dust or splashing water may be present.
Can this driver be used for 15V accent or display lighting in semi-exposed locations?
Yes, for 15V lighting loads that do not exceed 45W and 3A. Its IP64 rating and operating temperature range of -30°C to +50°C make it better suited to damp or dusty locations than an open-frame indoor-only supply.
How much 15V LED strip can the PLN-45-15 run?
The maximum available power is 45W. To estimate strip length, divide 45W by your strip's rated power per meter, then verify the strip is a 15V product and that its current draw does not exceed 3A; check your strip rated power per meter.
Is the PLN-45-15 okay for outdoor or wet-area use?
It is rated IP64, so it is suitable for environments with dust exposure and splashing water. It is not described as submersible, and the specified operating temperature range is -30°C to +50°C.
