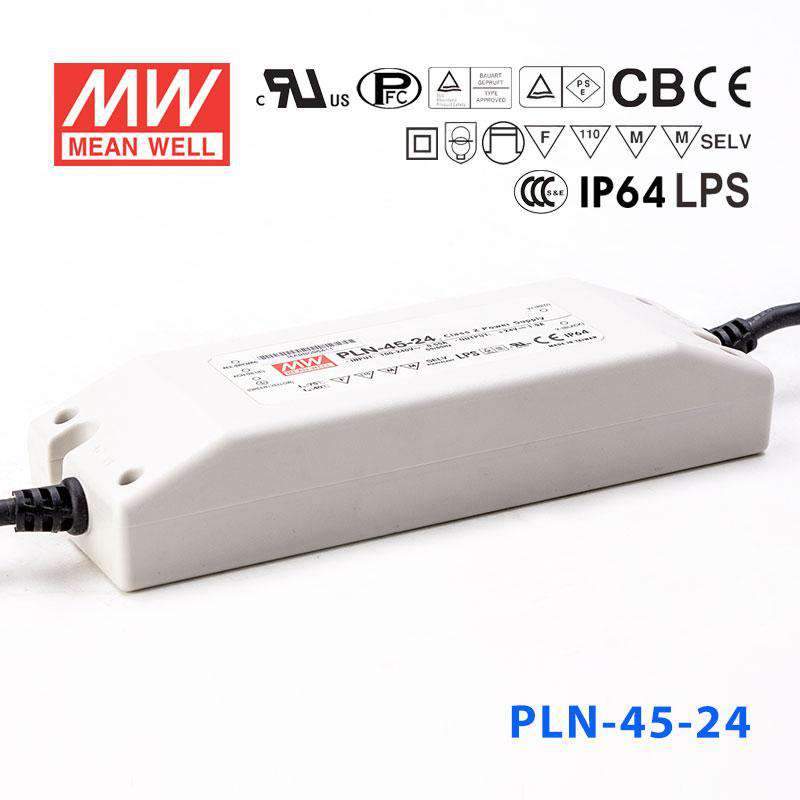

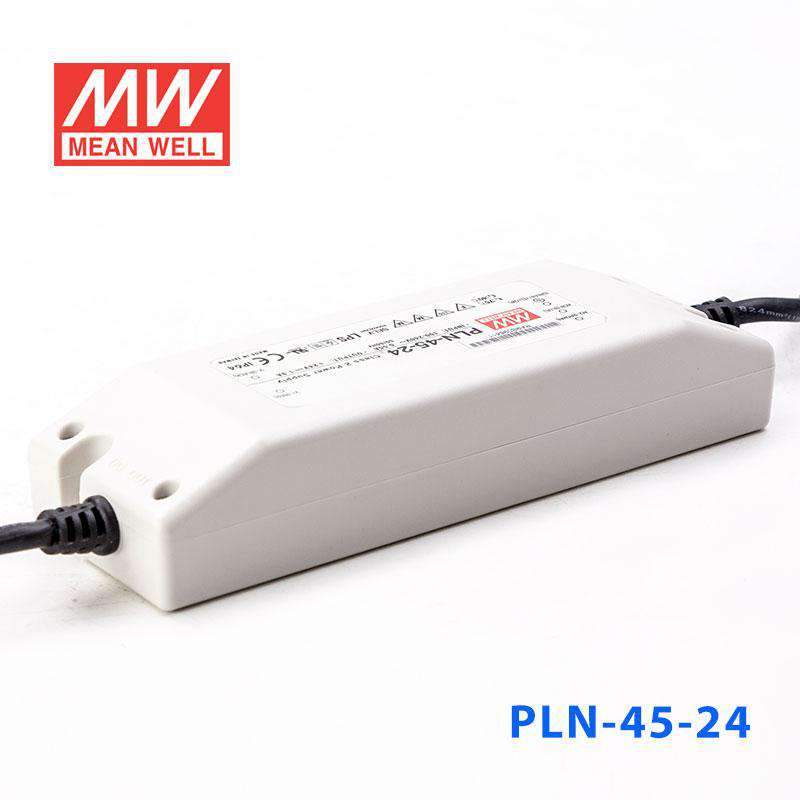

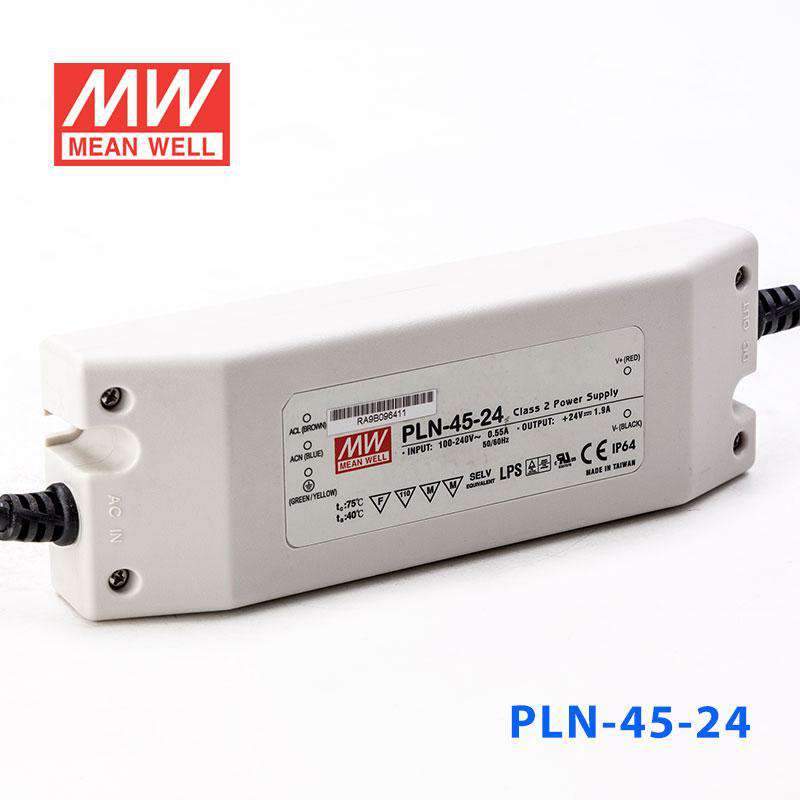

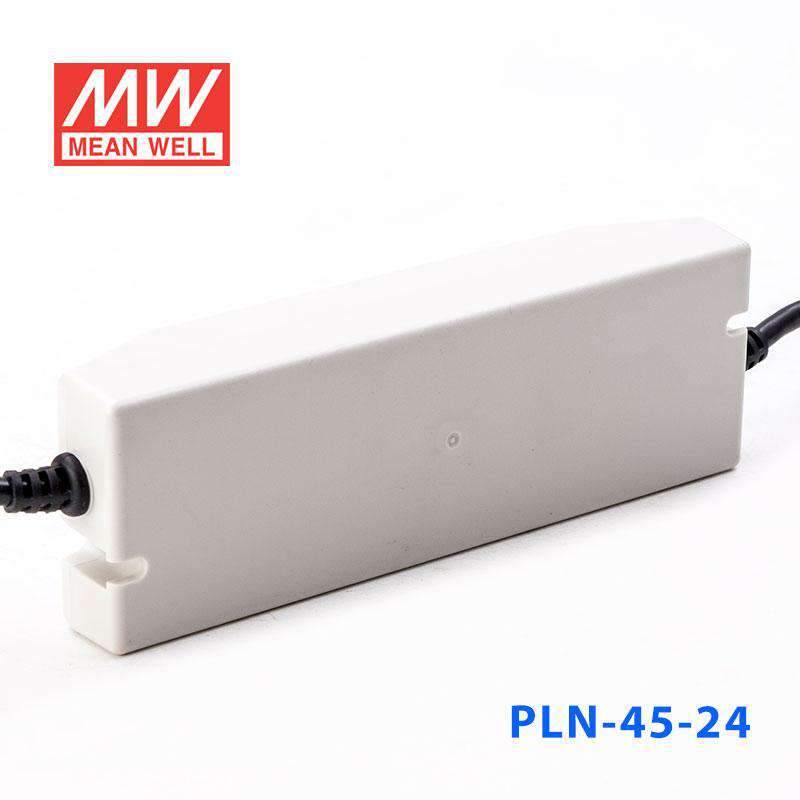

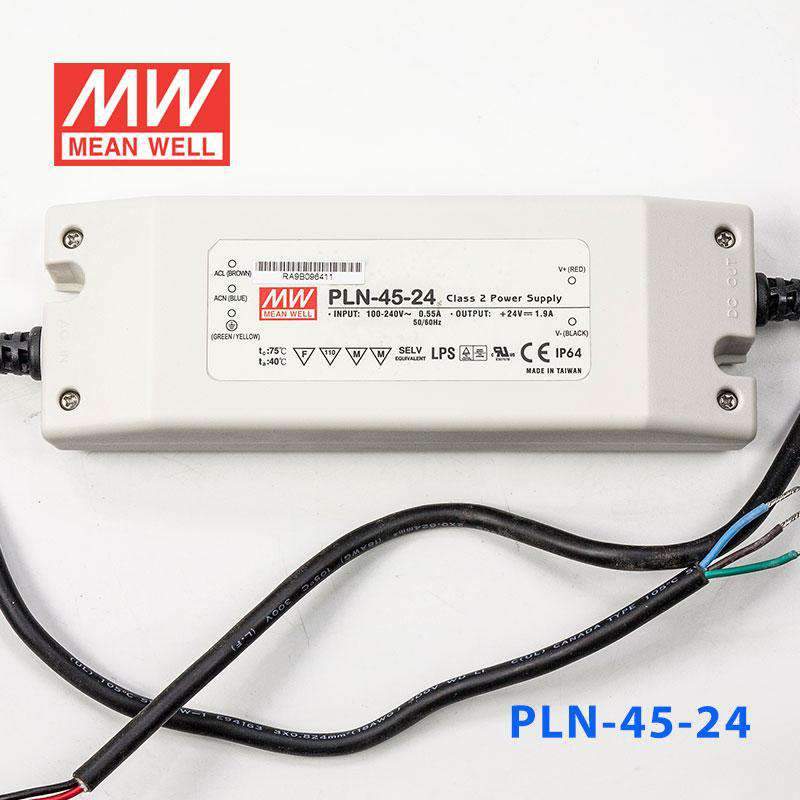

Mean Well PLN-45-24 Power Supply 45W 24V - IP64
The PLN-45 is a 45W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-45-24 for 24V LED strip lighting?
Yes, this is the most straightforward voltage match in the group for 24V LED strip systems, provided the total load stays within 45.6W and 1.9A. The constant current voltage range is 18-24V, so the strip or lighting system should be compatible with that output behavior.
Is the PLN-45-24 suitable for 24V sign lighting or illuminated letters?
It can be used for 24V signage loads that require no more than 45.6W total and 1.9A. The product is listed as suitable for signage applications, and the IP64 enclosure is useful where dust or rain splash may be present.
Can this driver power 24V architectural accent or cove lighting?
Yes, for 24V lighting runs that stay inside the 45.6W output limit. The fully isolated plastic case and IP64 protection make it better suited to enclosed or semi-exposed lighting locations than an unprotected indoor supply.
How much 24V LED strip can the PLN-45-24 support?
The total available output power is 45.6W. To estimate a maximum strip run, divide 45.6W by your strip's rated watts per meter, then make sure the strip is a 24V product and its current draw stays at or below 1.9A; check your strip rated power per meter.
Can the PLN-45-24 be used outdoors?
It is IP64 rated, so it is suitable for outdoor locations where the unit may see dust and splashing water. The rated operating temperature is -30°C to +50°C, but IP64 does not indicate submersion or heavy water-jet protection.
