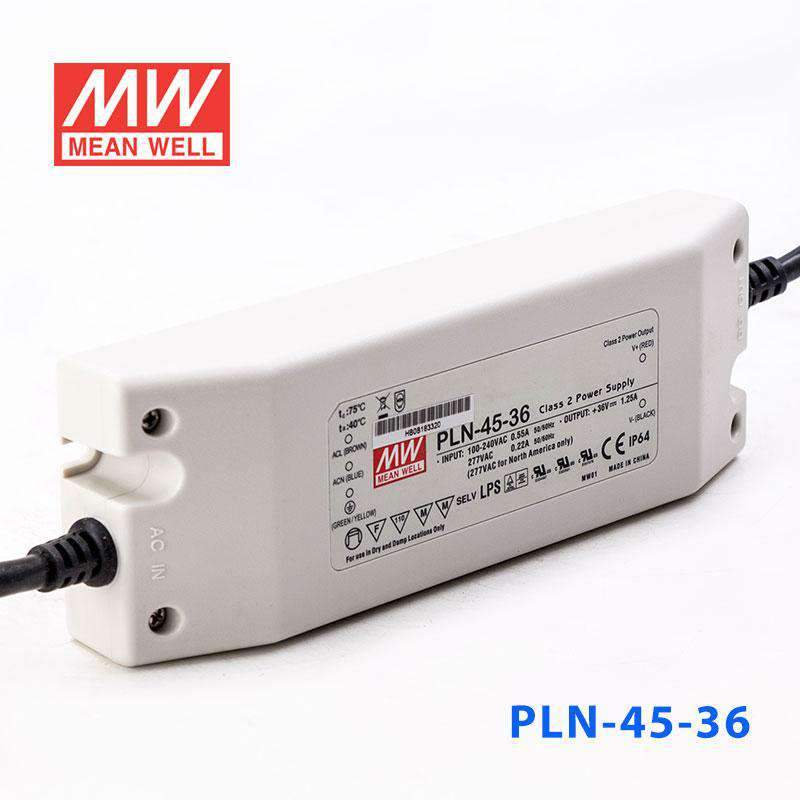

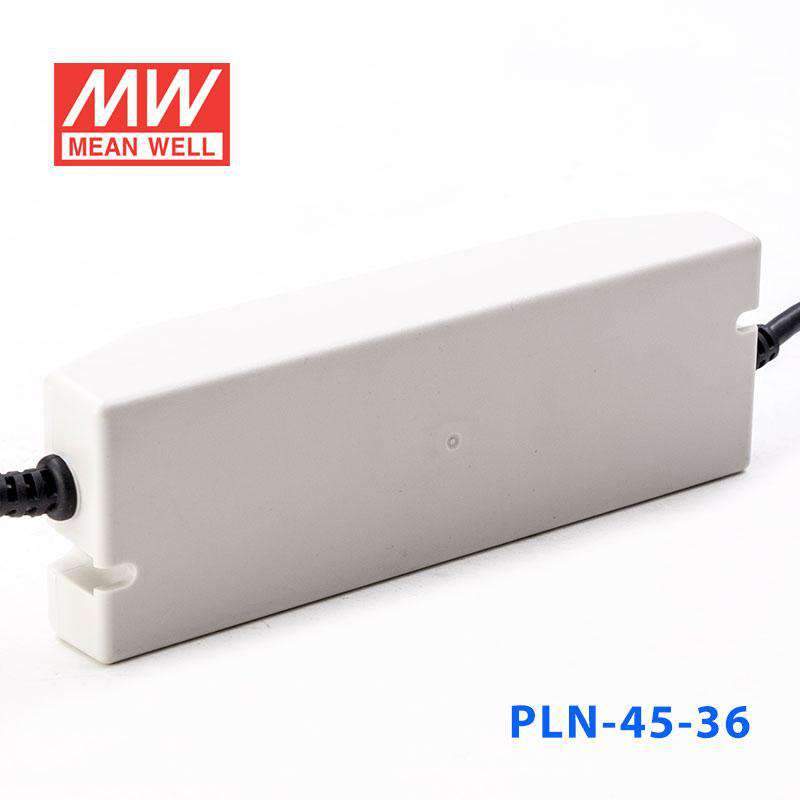

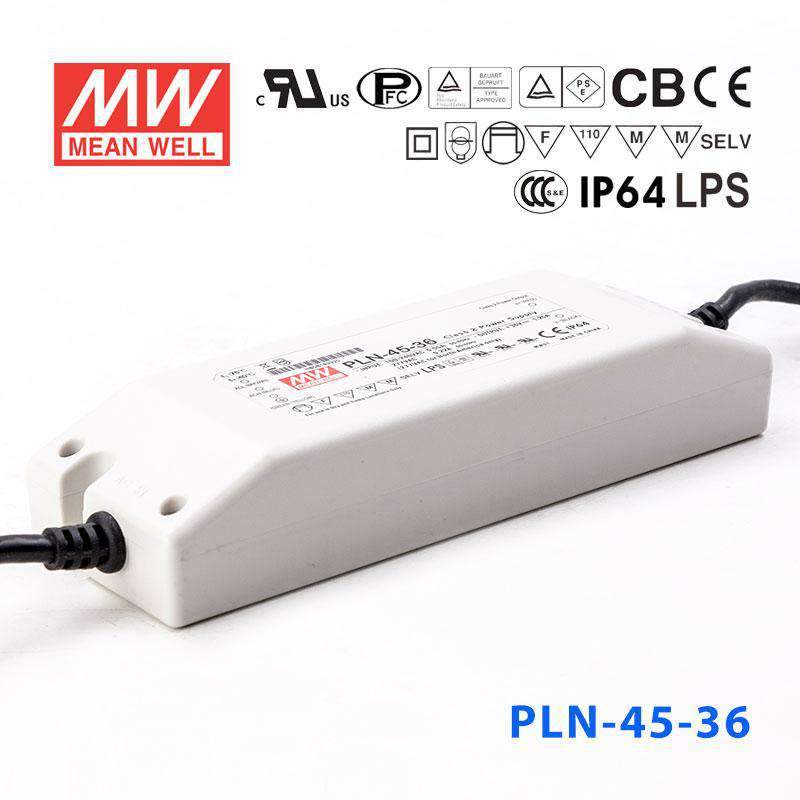

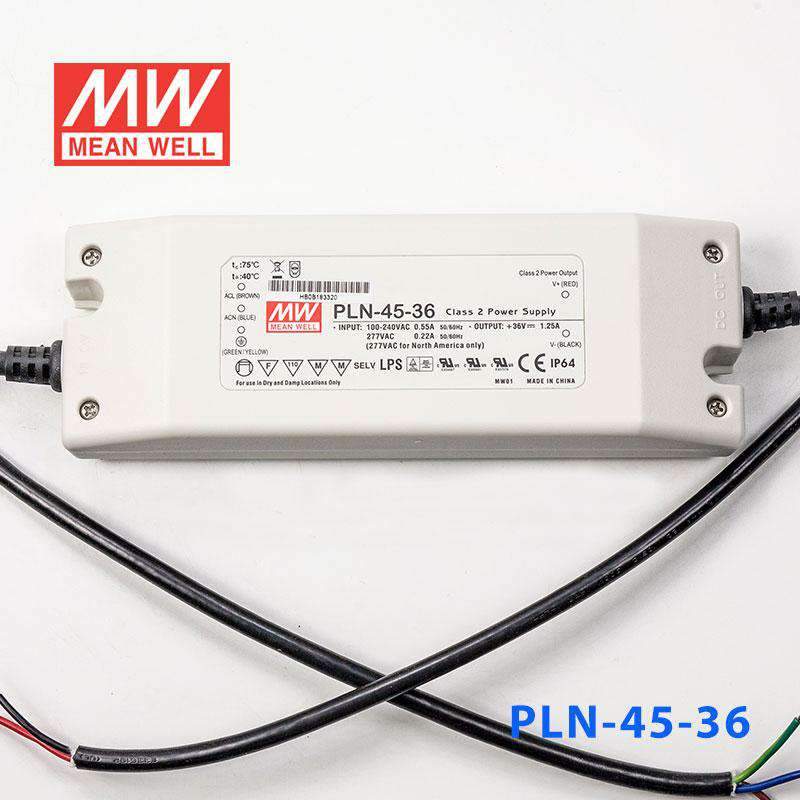

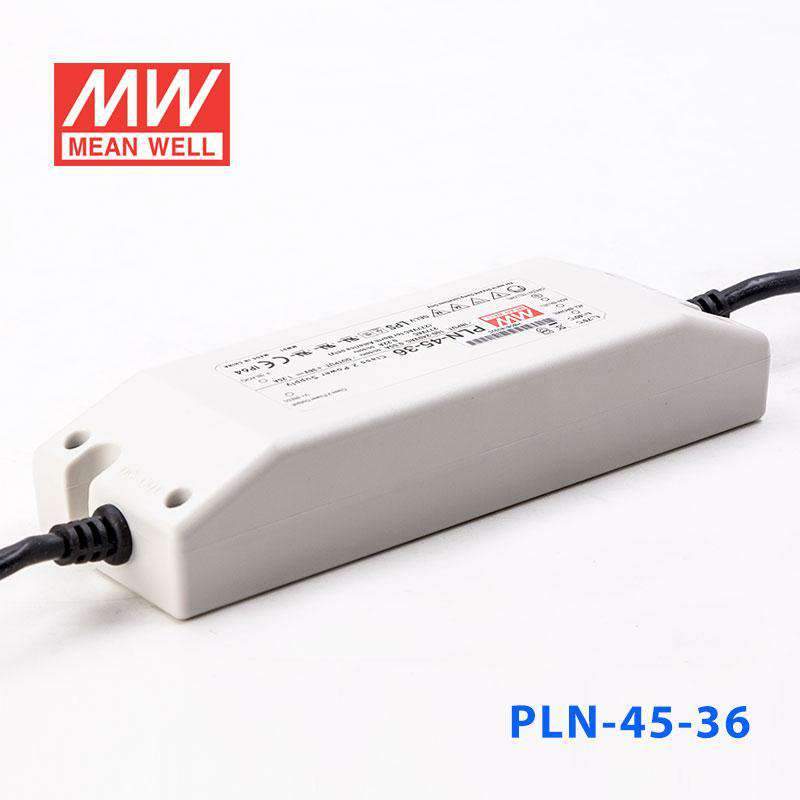

Mean Well PLN-45-36 Power Supply 45W 36V - IP64
The PLN-45 is a 45W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating45 Watt
-
Output Voltage36 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.13 in
-
Width2.42 in
-
Height1.38 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
Can I use the PLN-45-36 for a 36V LED strip or lighting system?
Yes, if the 36V lighting load stays within 45W maximum power and 1.25A maximum output current. The unit operates in constant current mode with a 27-36V range, so the lighting product should be checked for electrical compatibility.
Is the PLN-45-36 suitable for 36V signage lighting?
It can be used for 36V signage applications that require no more than 45W total output. The product is identified as suitable for signage applications, and the IP64 enclosure helps in dusty or splash-prone locations.
Can this 36V driver be used for commercial or industrial lighting runs?
Yes, for 36V lighting loads within the 45W and 1.25A limits. The wide 90-295VAC input range and -30°C to +50°C operating temperature range are useful where site power and ambient conditions vary.
How much 36V LED strip can the PLN-45-36 run?
The maximum available output is 45W. To estimate maximum strip length, divide 45W by your strip's rated watts per meter, then confirm the strip is a 36V product and that total current stays at or below 1.25A; check your strip rated power per meter.
Is the PLN-45-36 appropriate for outdoor environments?
It is IP64 rated, so it is intended for dust exposure and splashing water rather than immersion. The specified operating temperature range is -30°C to +50°C, which supports use in cold and hot outdoor conditions within that range.
