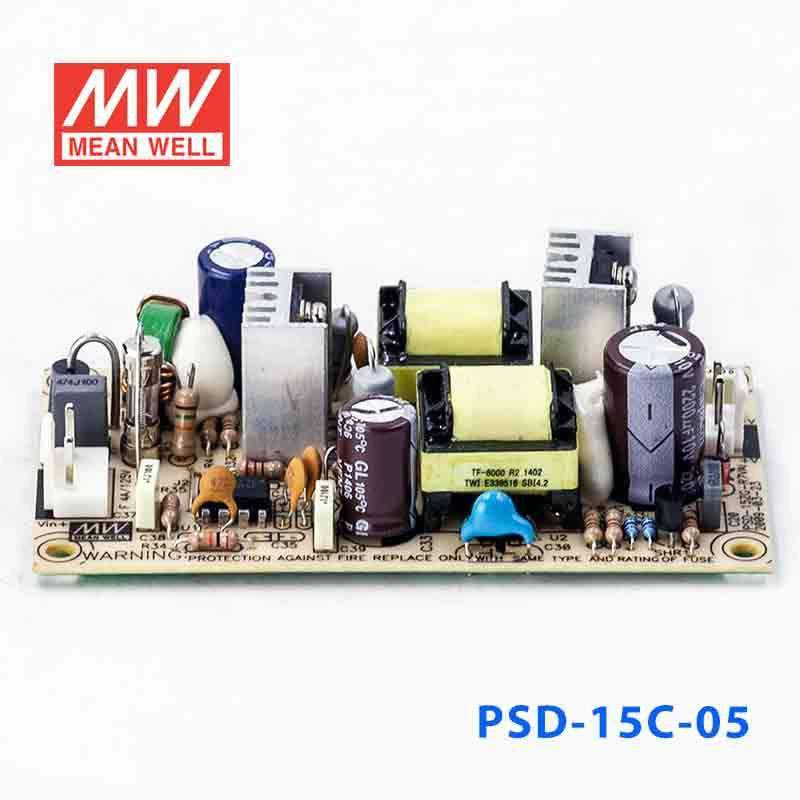

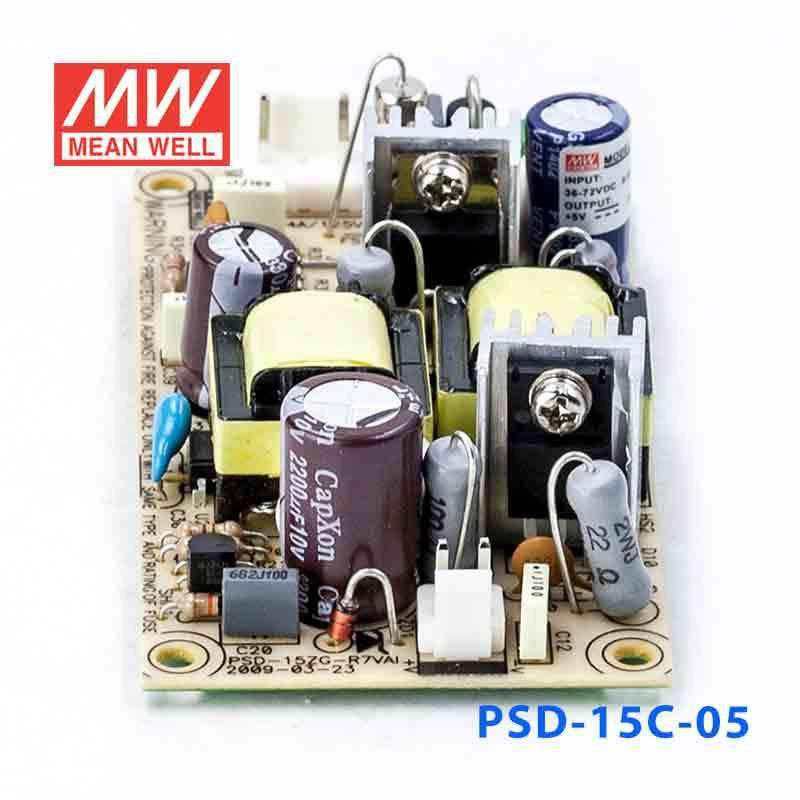

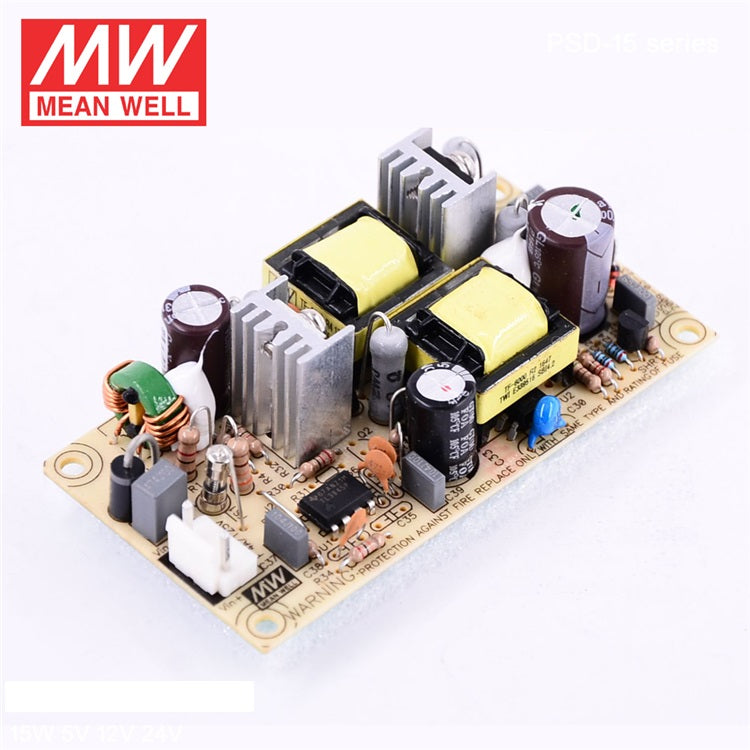

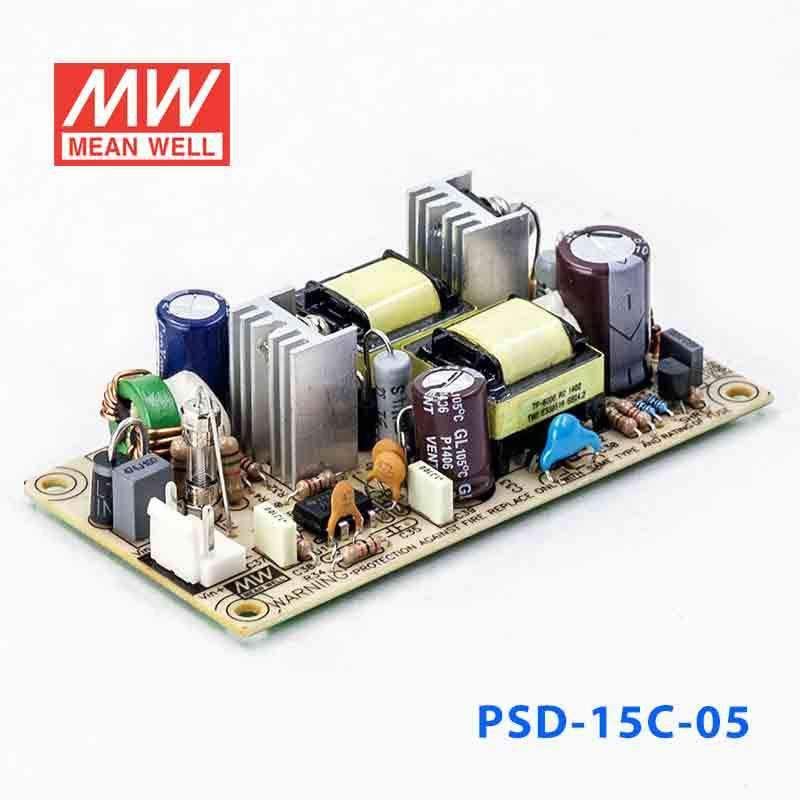

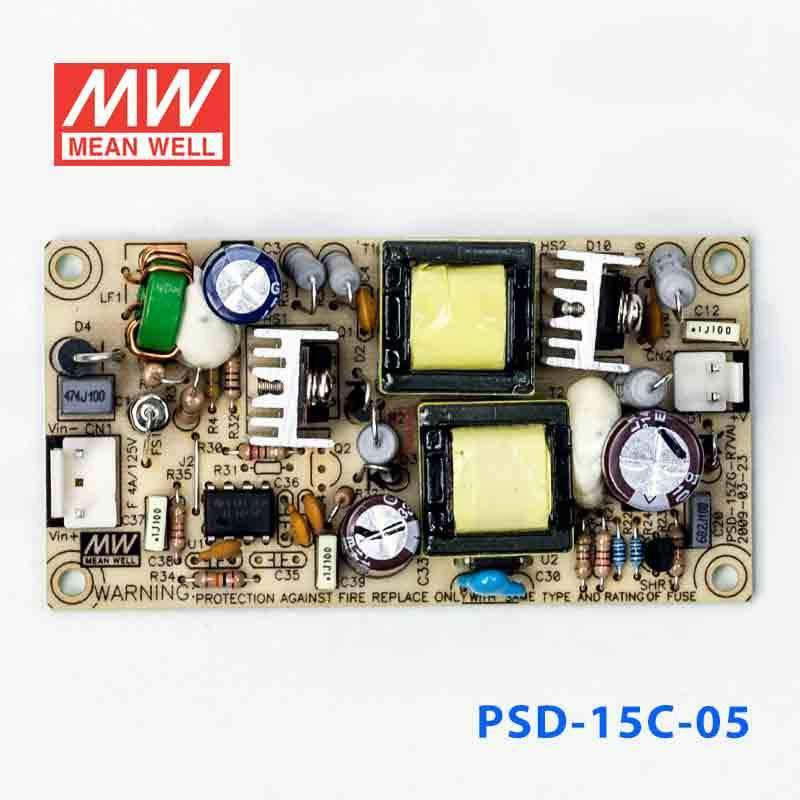

Mean Well PSD-15C-5 Switching Power Supply 15W 5V
The PSD-15C is a 15W Mean Well power converter.
Key Features
- ✓ 2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage9.2V~72V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the PSD-15C-5 to power 5V industrial control electronics?
Yes, this model is a constant voltage DC-DC converter with a 5V output rated for up to 3A and 15W. It fits 5V industrial control, embedded, or automation loads when the total load stays within that 5V, 3A, 15W output rating.
Is the PSD-15C-5 a good fit for embedded 5V boards and logic devices in OEM equipment?
It can be a fit for embedded 5V electronics because it provides constant 5V output and up to 3A. The 15W rating makes it more appropriate for lower-power 5V assemblies than for larger 5V loads that need more than 3A.
Can this converter be used in a 5V automation subsystem with a wide source range?
Yes, the PSD-15C-5 is intended for constant-voltage 5V applications and has a 9-72VAC input range. That wide input range can help in automation or industrial systems where the available source varies across that 9-72VAC range.
How does the PSD-15C-5 compare with other 5V models in the PSD series?
For 5V outputs in the sibling list, PSD-05-05 and PSD-05-5 are 5W, 5V, 1A; PSD-15A-05, PSD-15A-5, PSD-15B-05, PSD-15B-5, PSD-15C-05, and PSD-15C-5 are 15W, 5V, 3A. PSD-30A-5, PSD-30B-5, and PSD-30C-5 are 25W, 5V, 5A; PSD-45A-5 is 30W, 5V, 6A; PSD-45B-5 and PSD-45C-5 are 45W, 5V, 9A.
Is the PSD-15C-5 suitable for outdoor or harsh-environment use?
The listed operating temperature is -10°C to +60°C, so that is the defined environmental range in the product data. No IP rating is provided in these specs, so the product data does not support an outdoor or washdown claim by itself.
