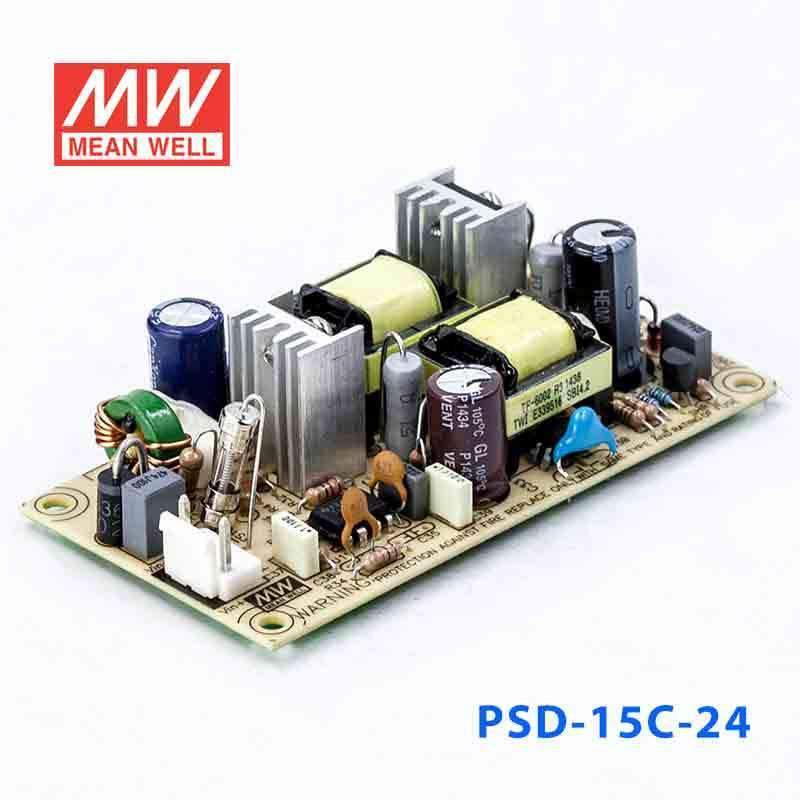

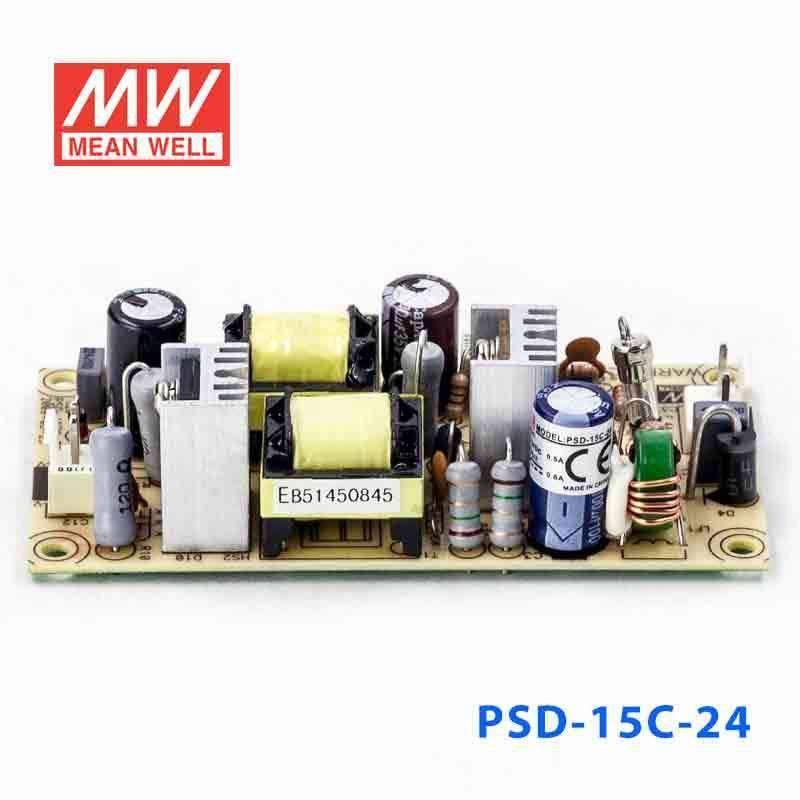

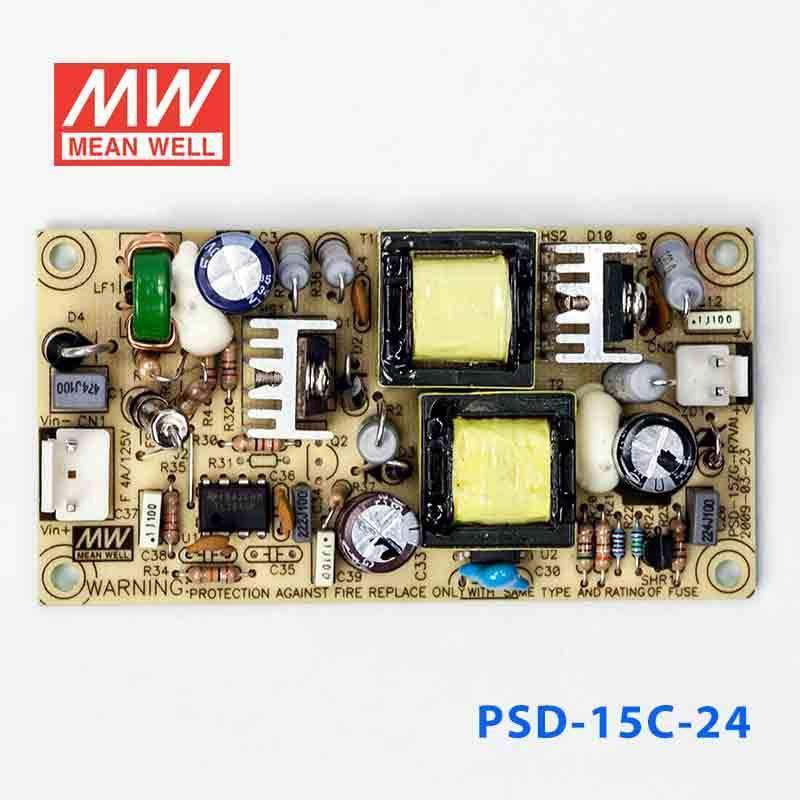

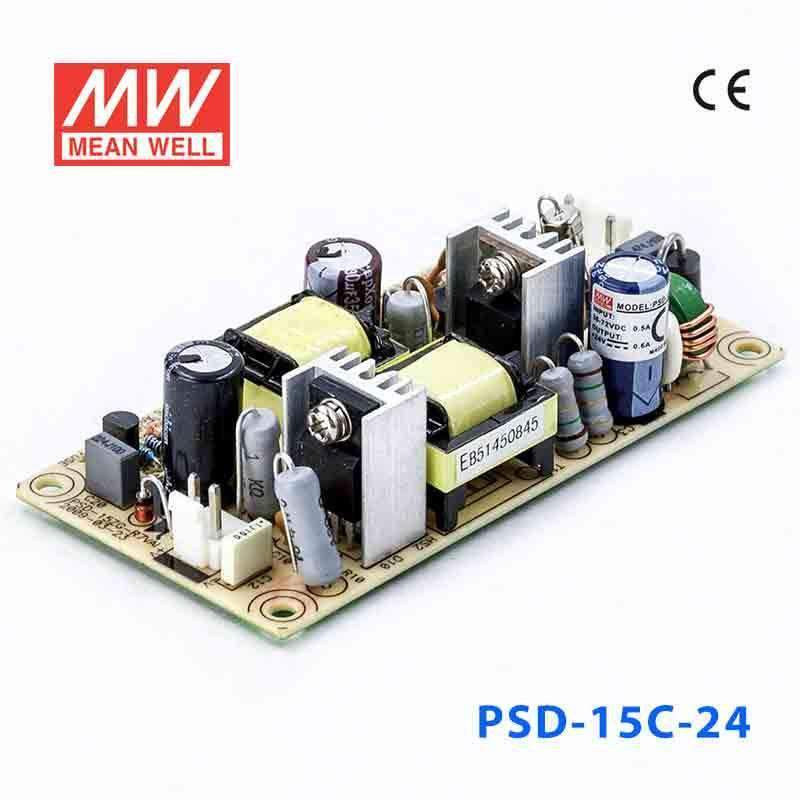

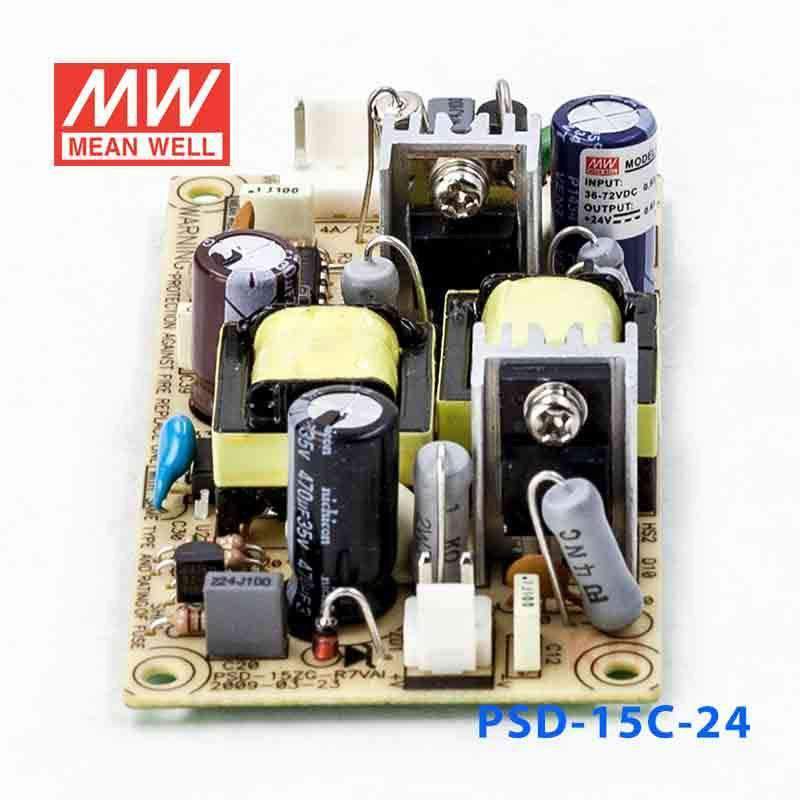

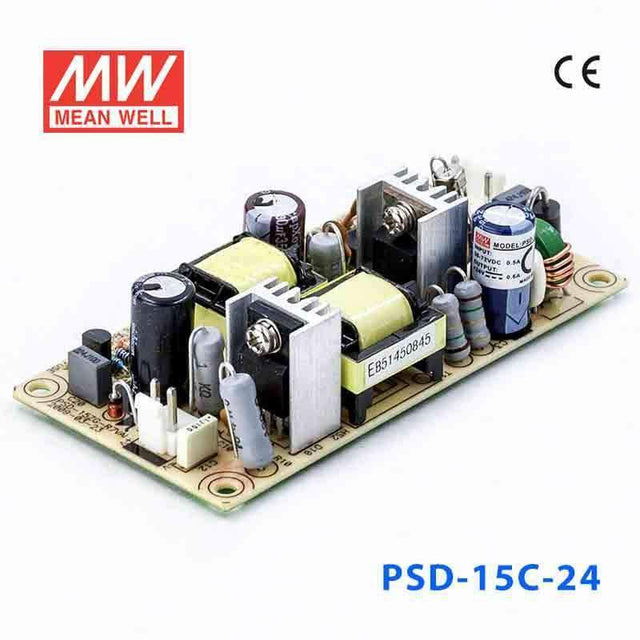

Mean Well PSD-15C-24 DC-DC Converter - 14.4W - 36~72V in 24V out
The PSD-15C is a 15W Mean Well power converter.
Key Features
- ✓ 2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating14.4 Watt
-
Output Voltage24 Volt
-
Rated Current0.66 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the PSD-15C-24 to power 24V control circuits from a higher-voltage DC source?
It is intended for 36-72VAC input and provides a constant 24V output with a 14.4W power rating. That makes it relevant for low-power 24V control, sensing, or interface electronics within that input window.
Is the PSD-15C-24 suitable for 24V industrial or automation electronics in a compact cabinet?
Its 94.0 x 49.0 x 25.0 mm size and 0.081 kg weight support compact installation inside control equipment. The 24V constant voltage output and 14.4W capacity point it toward lighter-duty electronic loads rather than larger 24V devices.
Can the PSD-15C-24 be used for 24V auxiliary power in telecom or IT equipment?
It can fit low-power 24V auxiliary electronics when the available source is within 36-72VAC and the load stays within 14.4W. The feature list also notes 1.5~2KVAC isolation by models, which is relevant for isolated auxiliary power designs.
Would the PSD-15C-24 work for embedded monitoring or signaling devices that run on 24V?
It can suit embedded monitoring, signaling, or interface hardware that needs constant 24V and modest power. With 14.4W available, it is positioned for low-power electronics rather than larger 24V subsystems.
What are the output differences across the PSD-15C series?
In the PSD-15C family, the 5V model is rated at 15W and 3A, the 12V model is rated at 15W and 1.25A, and the 24V model is rated at 14.4W and 666A. They are sibling models in the same series, but the output voltage and rating differ by version.
Is the PSD-15C-24 rated for outdoor use or exposed conditions?
The specified operating temperature range is -10C to +60C. No IP rating appears in the provided specs, so the listing does not confirm suitability for outdoor or washdown environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PSD-15C Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PSD-15C-5 Switching Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $11.56 | View |
| Mean Well PSD-15C-12 DC-DC Converter - 15W - 36~72V in 12V out | 15W | 12V | 1.25A | Indoor | $10.39 | View |
| Mean Well PSD-15C-05 DC-DC Converter - 15W - 36~72V in 5V out | 15W | 5V | 3A | Indoor | $9.45 | View |
