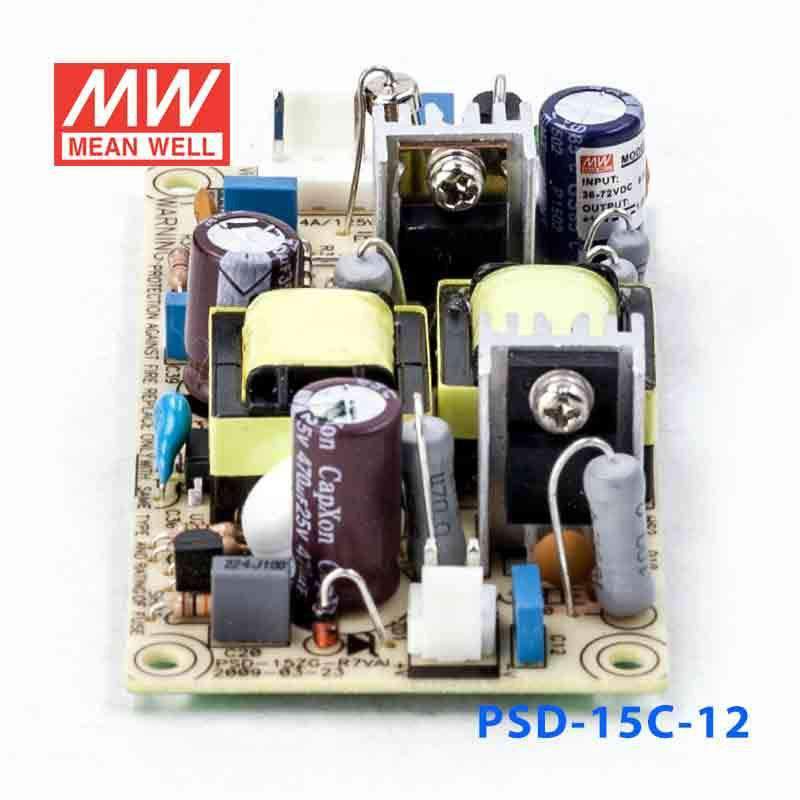

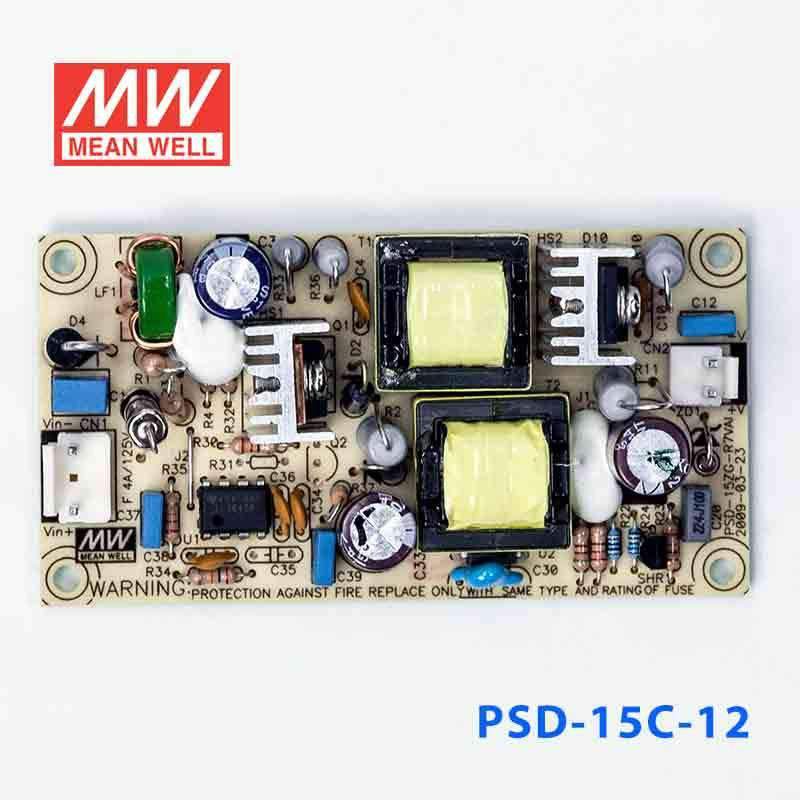

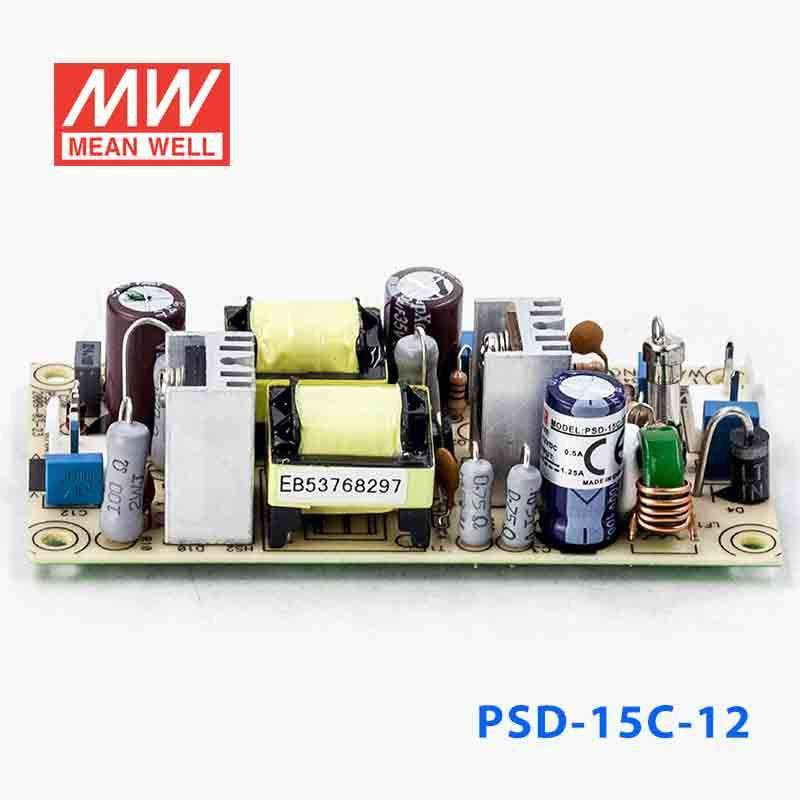

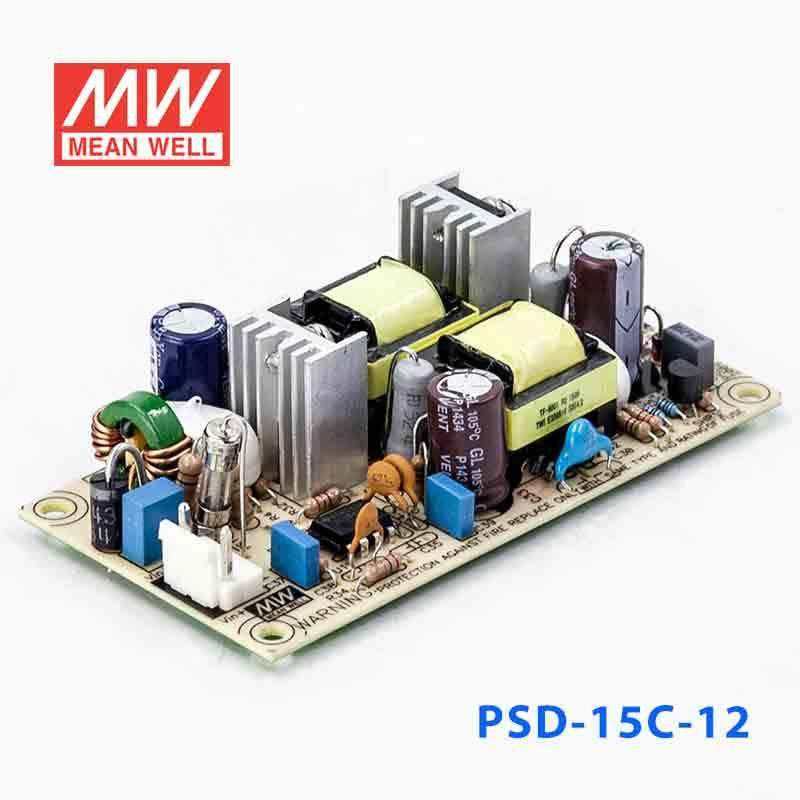

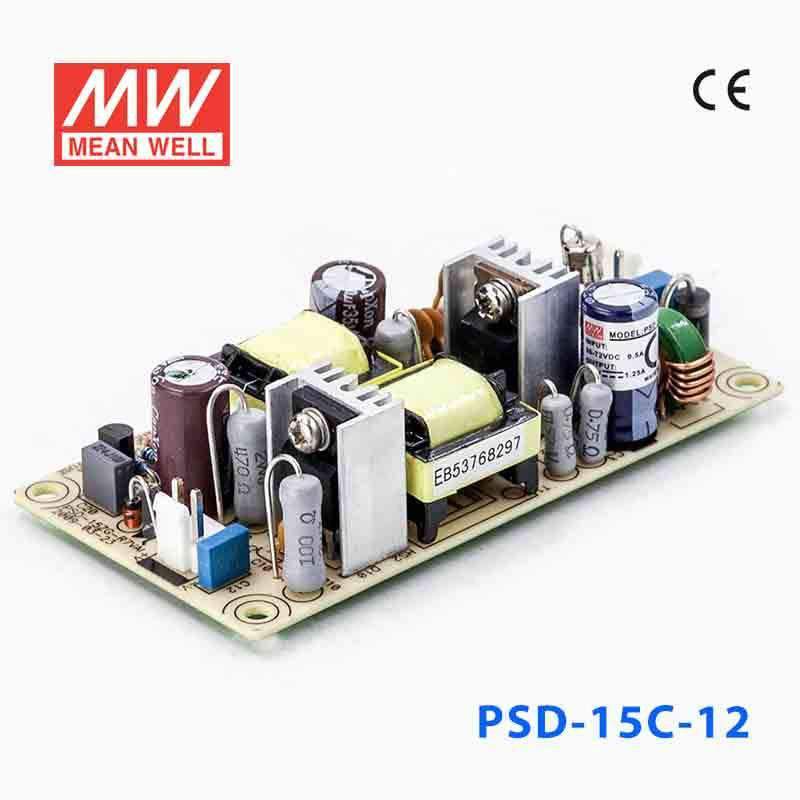

Mean Well PSD-15C-12 DC-DC Converter - 15W - 36~72V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models
$10.39 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range
2000VAC I / O isolation
Built-in EMI filter, low ripple noise
Protections: Short circuit / Overload / Over voltage / Polarity
100% full load burn-in test
Low cost, high reliability
2 years warranty

General Specification

Voltage set point accuracy ± 1.0% (max.)
Overload protection 105% ~ 150% hiccup mode, auto-recovery
Over voltage protection 115% ~ 135% rated output voltage
Withstand voltage I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Isolation resistance 100MQ(min.)@500VDC
Working temperature -10 ~ + 60°C
Safety standards Meet LVD
SEMC standards EN55022 class B, EN61000-4-2, 3, 4, 6, 8
Connection 3P, 2P / 3.96mm pitch, JST B3P / B2P-VH
Packing 0.081 kg; 120 pcs / 10.72 kg
Dimension (LxWxH) (mm) 94x 49x 25 mm

Specifications

  • Brand
    Mean Well
  • Series
    PSD Series
  • Power Rating
    15 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1.25 Ampere
  • Input Voltage
    36V~72V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    3.7 in
  • Width
    1.93 in
  • Height
    0.98 in
  • Weight
    0.18 lb
