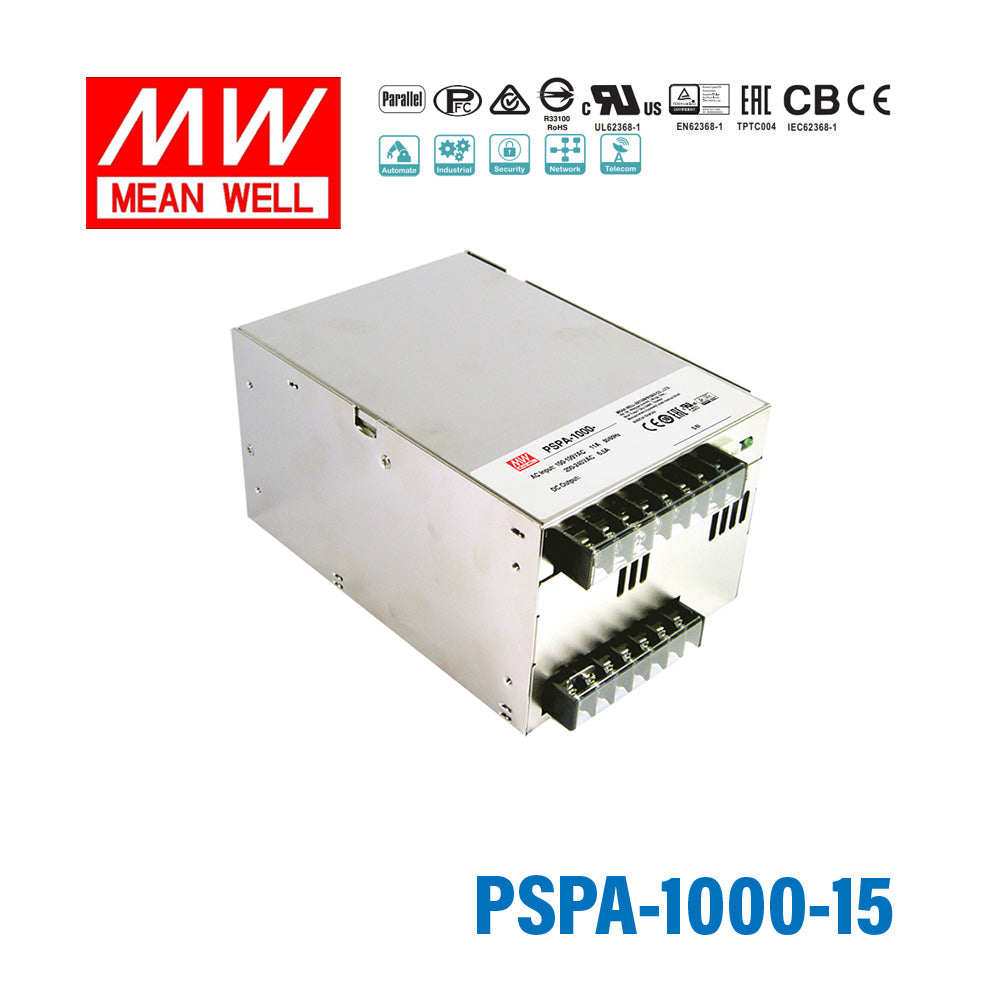

Mean Well PSPA-1000-15 Power Supply 1000W 15V
The PSPA-1000 is a 1000W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EN62368-1 , BSMI CNS14336-1 AS/NZS62368.1 , , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating960 Watt
-
Output Voltage15 Volt
-
Rated Current64 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length6.69 in
-
Width4.72 in
-
Height3.66 in
-
Weight4.25 lb
::specification::
Frequently Asked Questions
Can I use the PSPA-1000-15 for 15V industrial control equipment?
Yes, if the equipment is specified for 15V DC constant voltage input. This model delivers 960W at 15V with up to 64A, which suits larger 15V control assemblies and centralized DC distribution inside industrial equipment.
Is the PSPA-1000-15 a fit for 15V test and measurement systems?
It can be a good fit for high-power test systems that need stable 15V DC rather than 12V, 24V, or 48V. The supply is rated for 64A output, so it is better suited to heavier 15V loads than smaller current-limited options.
Can this power supply support 15V embedded or industrial electronics platforms?
Yes, for platforms designed around a 15V constant voltage bus. Its 960W output rating and broad 90-264VAC input range make it suitable for larger embedded systems installed across different AC power regions.
Would the PSPA-1000-15 work for a centralized 15V DC bus in an automation cabinet?
It is designed for applications that need a fixed 15V output with substantial current capacity from one enclosure-mounted supply. At 15V and 64A, it supports higher-load 15V automation hardware more directly than the 24V or 48V siblings.
Is the PSPA-1000-15 meant for outdoor deployment?
The operating temperature range is listed as -20°C to +70°C, but these specs do not include an IP rating. That means the provided data supports use in protected indoor or enclosed equipment environments, not exposed outdoor placement.
How does the PSPA-1000-15 compare with the rest of the PSPA-1000 series?
The PSPA-1000-15 is rated for 960W, 15V, and 64A. The other listed models are PSPA-1000-12 at 960W, 12V, 80A; PSPA-1000-24 at 1008W, 24V, 42A; and PSPA-1000-48 at 1008W, 48V, 21A.
