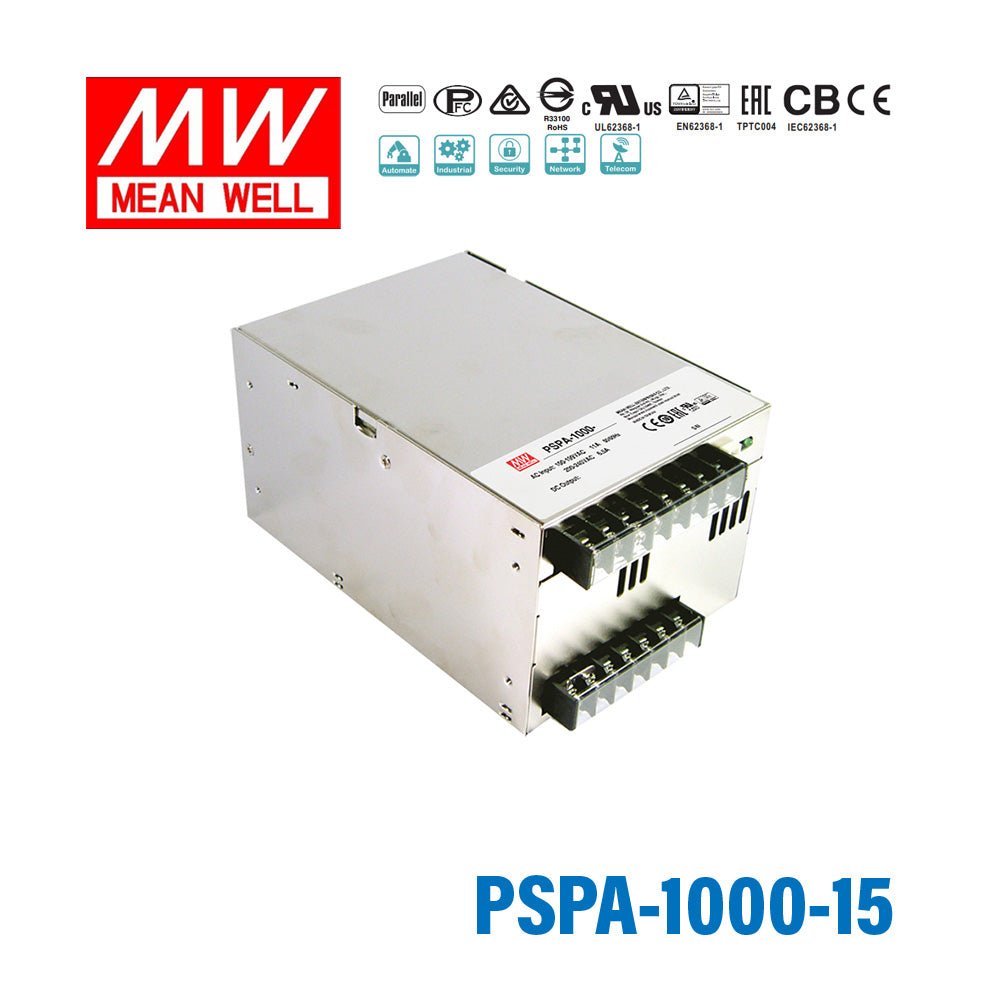

Mean Well PSPA-1000-15 Power Supply 1000W 15V 64A
Overview
PSPA-1000-15 is the 15V output model of this series: rated current 64A, rated power 960W, typical efficiency 93%.
PSPA-1000 series is a 1KW single output enclosed type AC/DC power supply. This series operates from 90~264VAC input voltage and offers models with different rated voltage ranging between 12V and 48V. Thanks to high efficiency up to 94% and built-in fan, the entire series is able to work for -20℃ ~ +70℃ ambient temperature. PSPA-1000 is equipped with various built-in functions, such as current sharing, remote ON-OFF control and remote sense, providing great design flexibility for different types of applications.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- Current sharing up to 4000W(3+1)
- With DC OK Signal output
- Built-in remote ON-OFF control
- Built-in remote sense function
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 64A
- CURRENT RANGE
- 0 ~ 64A
- RATED POWER
- 960W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 14 ~ 17V
- VOLTAGE TOLERANCENote.3
- ±1.5%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.5%
- SETUP, RISE TIME
- 1000ms,50ms/115VAC 1000ms,50ms/230VAC
- HOLD UP TIME (Typ.)
- 16ms at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.95/230VAC 0.99/115VAC at full load
- EFFICIENCY(Typ.)
- 93%
- AC CURRENT (Typ.)
- 8.5A/115VAC 5A/230VAC
- INRUSH CURRENT (Typ.)
- 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <0.5mA/240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 18.2 ~ 20.6V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
FUNCTION
- CURRENT SHARING
- Up to 4000W or (3+1) units. Please refer to the Function Manual.
- REMOTE ON-OFF CONTROL
- Power ON : short; Power OFF : open. Please refer to the Function Manual.
- REMOTE SENSE
- Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual.
- POK SIGNAL
- The TTL signal out, PSU turn on = 2.4 ~ 5V ; PSU turn off = 0 ~ 0.4V. Please refer to the Function Manual.
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/ EN55032 (CISPR32), CNS15936 Class B Radiated BS EN/ EN55032 (CISPR32), CNS15936 Class B Harmonic Current BS EN/ EN61000-3-2 Class A Voltage Flicker BS EN/ EN61000-3-3 - EMC IMMUNITYNote 5
-
BS EN/ EN55035, BS EN/ EN61000-6-2, BSMI CNS13438
Parameter Standard Test Level ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/ EN61000-4-3 Level 3 EFT / Burst BS EN/ EN61000-4-4 Level 3 Surge BS EN/ EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth Conducted BS EN/ EN61000-4-6 Level 3 Magnetic Field BS EN/ EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 807.1K hrs min. Telcordia SR-332 (Bellcore) ; 94.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 170*120*93mm (L*W*H)
- PACKING
- 1.93Kg ; 8pcs/16.4Kg/1.53CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- RF application
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the PSPA-1000-15 for 15V industrial control equipment?
Yes, if the equipment is specified for 15V DC constant voltage input. This model delivers 960W at 15V with up to 64A, which suits larger 15V control assemblies and centralized DC distribution inside industrial equipment.
Is the PSPA-1000-15 a fit for 15V test and measurement systems?
It can be a good fit for high-power test systems that need stable 15V DC rather than 12V, 24V, or 48V. The supply is rated for 64A output, so it is better suited to heavier 15V loads than smaller current-limited options.
Can this power supply support 15V embedded or industrial electronics platforms?
Yes, for platforms designed around a 15V constant voltage bus. Its 960W output rating and broad 90-264VAC input range make it suitable for larger embedded systems installed across different AC power regions.
Would the PSPA-1000-15 work for a centralized 15V DC bus in an automation cabinet?
It is designed for applications that need a fixed 15V output with substantial current capacity from one enclosure-mounted supply. At 15V and 64A, it supports higher-load 15V automation hardware more directly than the 24V or 48V siblings.
Is the PSPA-1000-15 meant for outdoor deployment?
The operating temperature range is listed as -20°C to +70°C, but these specs do not include an IP rating. That means the provided data supports use in protected indoor or enclosed equipment environments, not exposed outdoor placement.
How does the PSPA-1000-15 compare with the rest of the PSPA-1000 series?
The PSPA-1000-15 is rated for 960W, 15V, and 64A. The other listed models are PSPA-1000-12 at 960W, 12V, 80A; PSPA-1000-24 at 1008W, 24V, 42A; and PSPA-1000-48 at 1008W, 48V, 21A.
