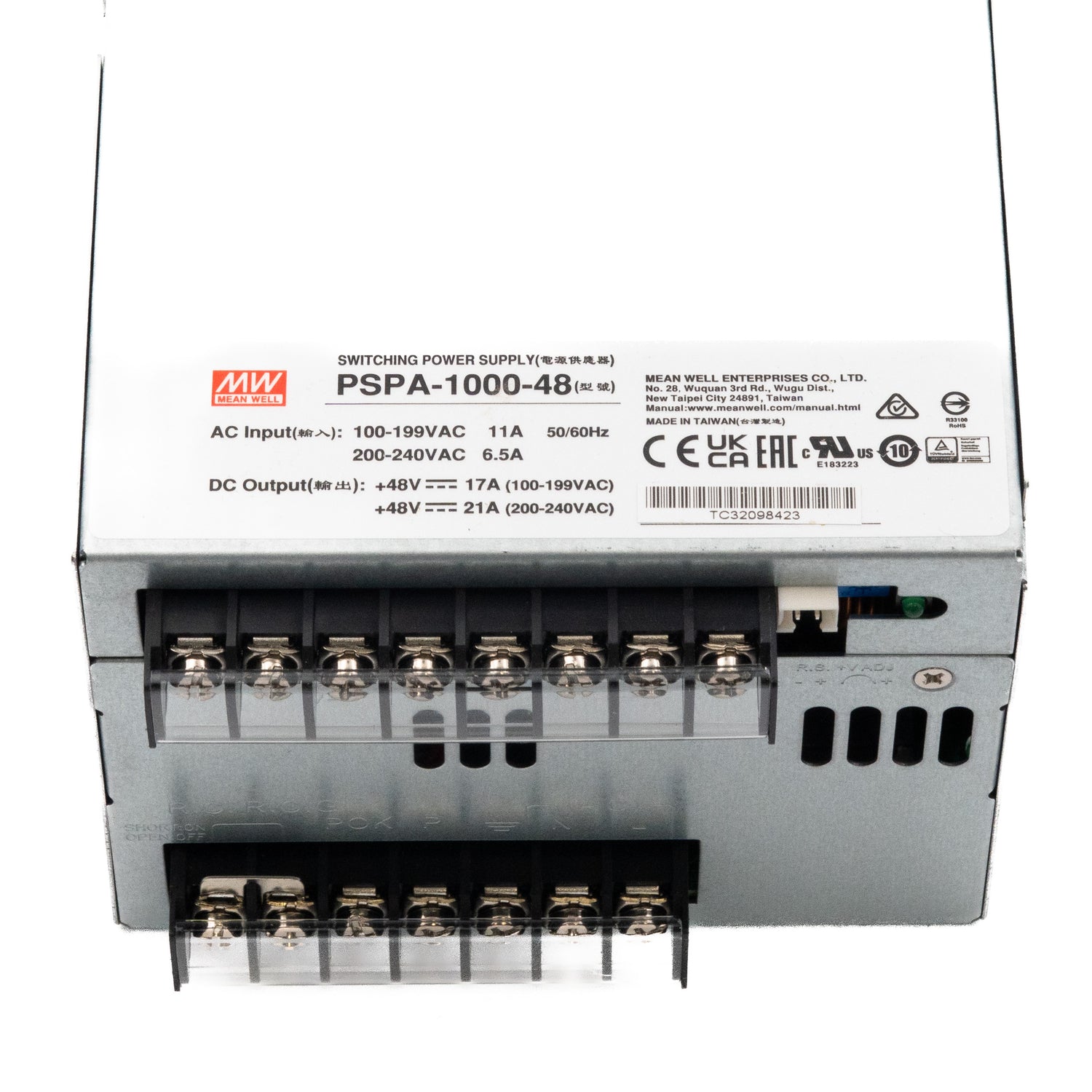

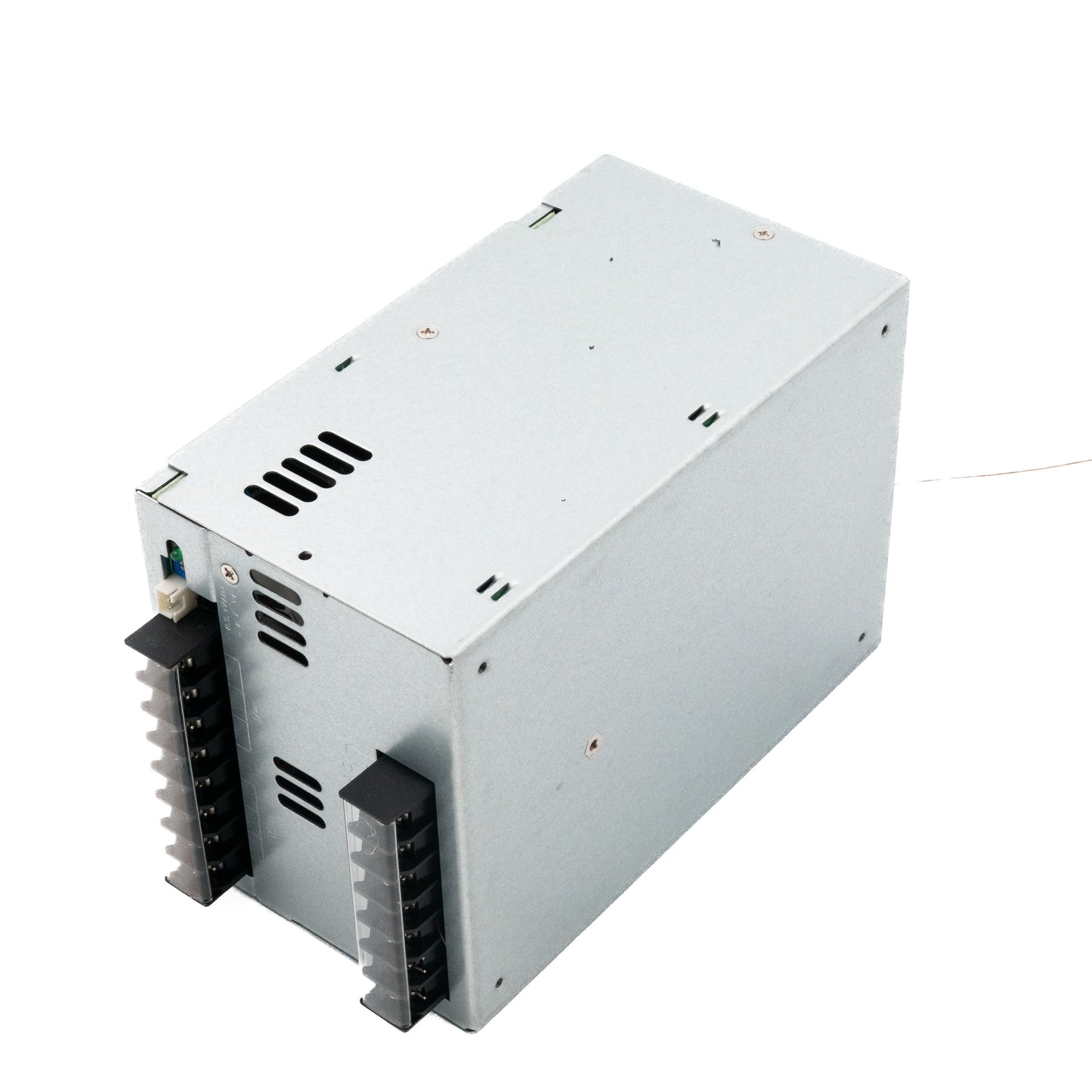

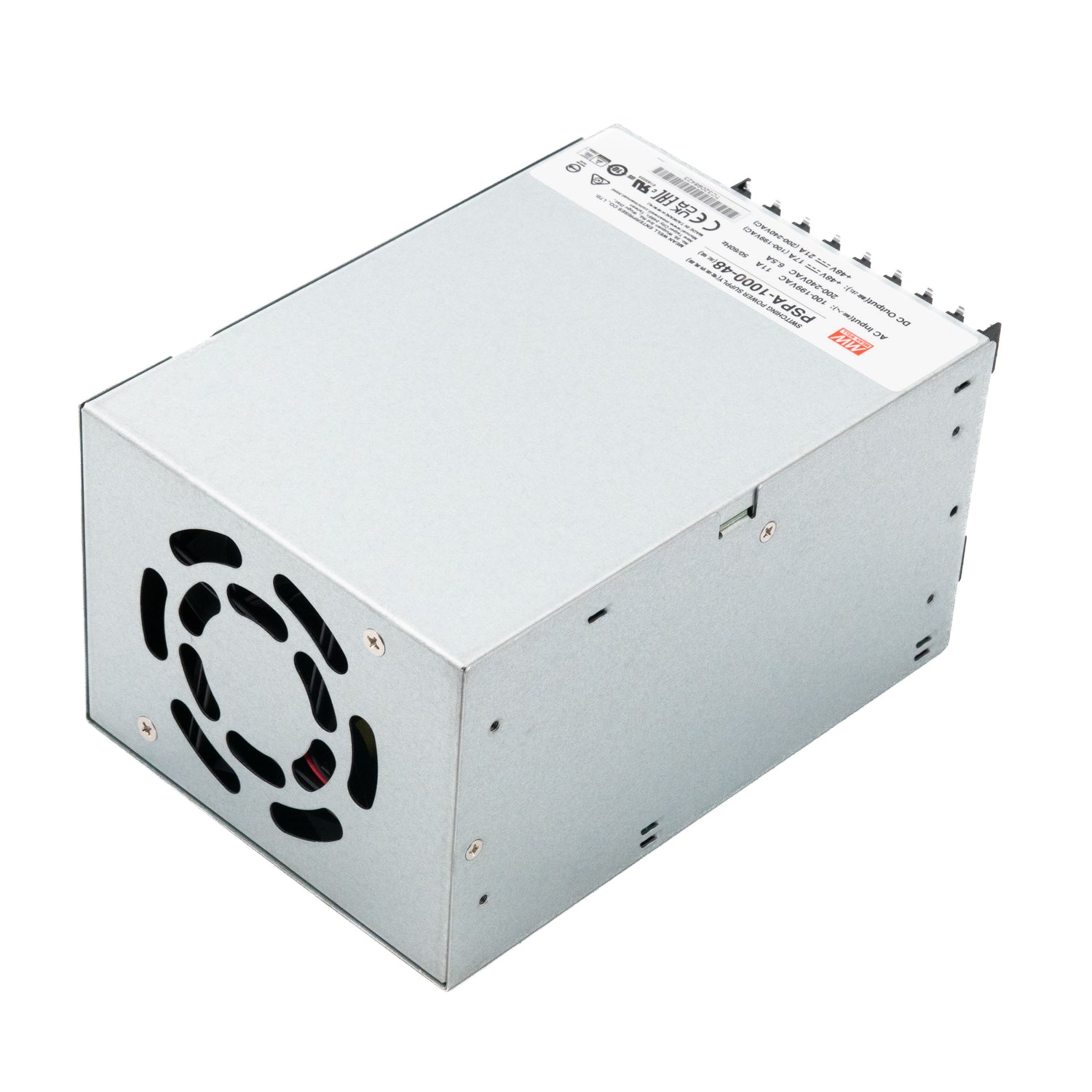

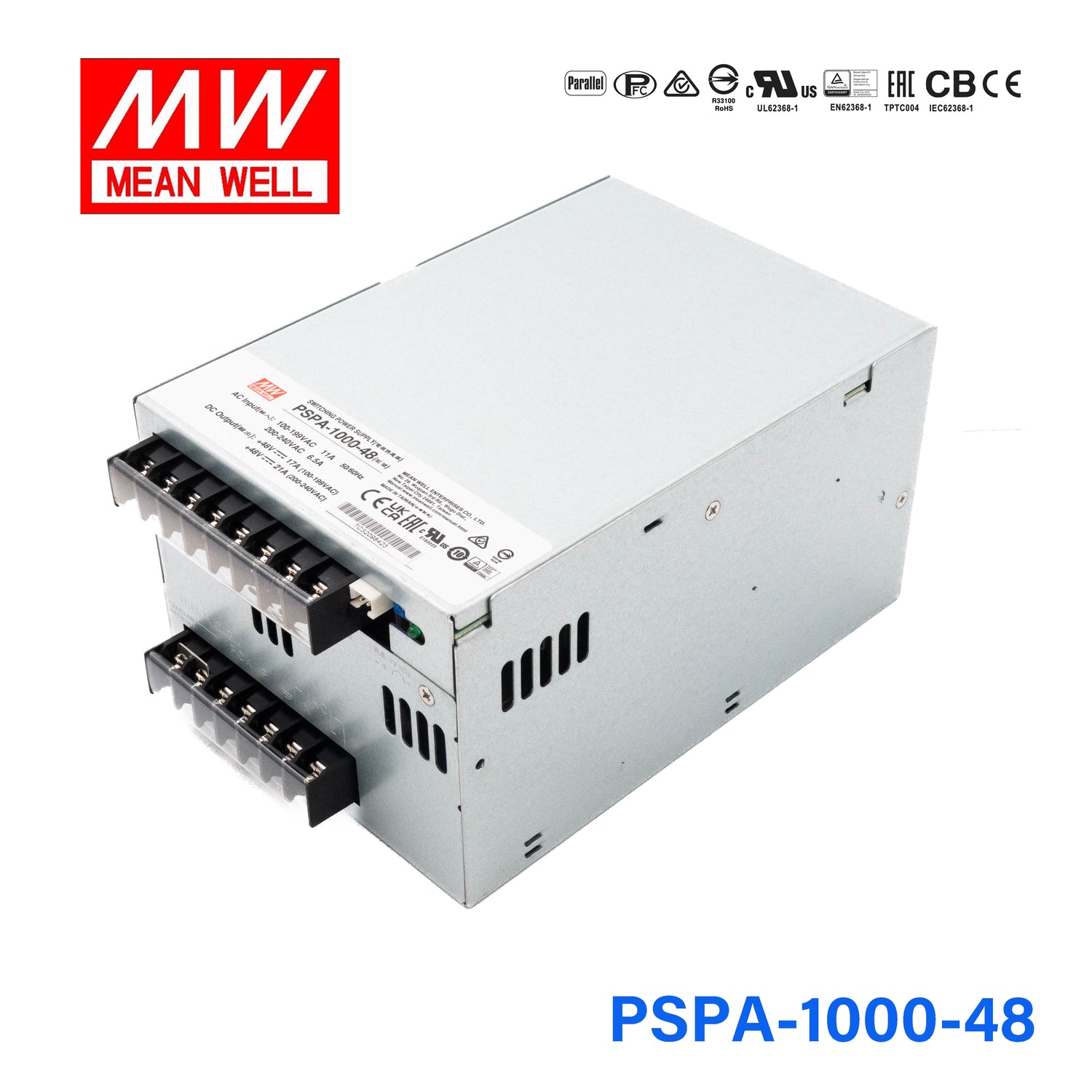

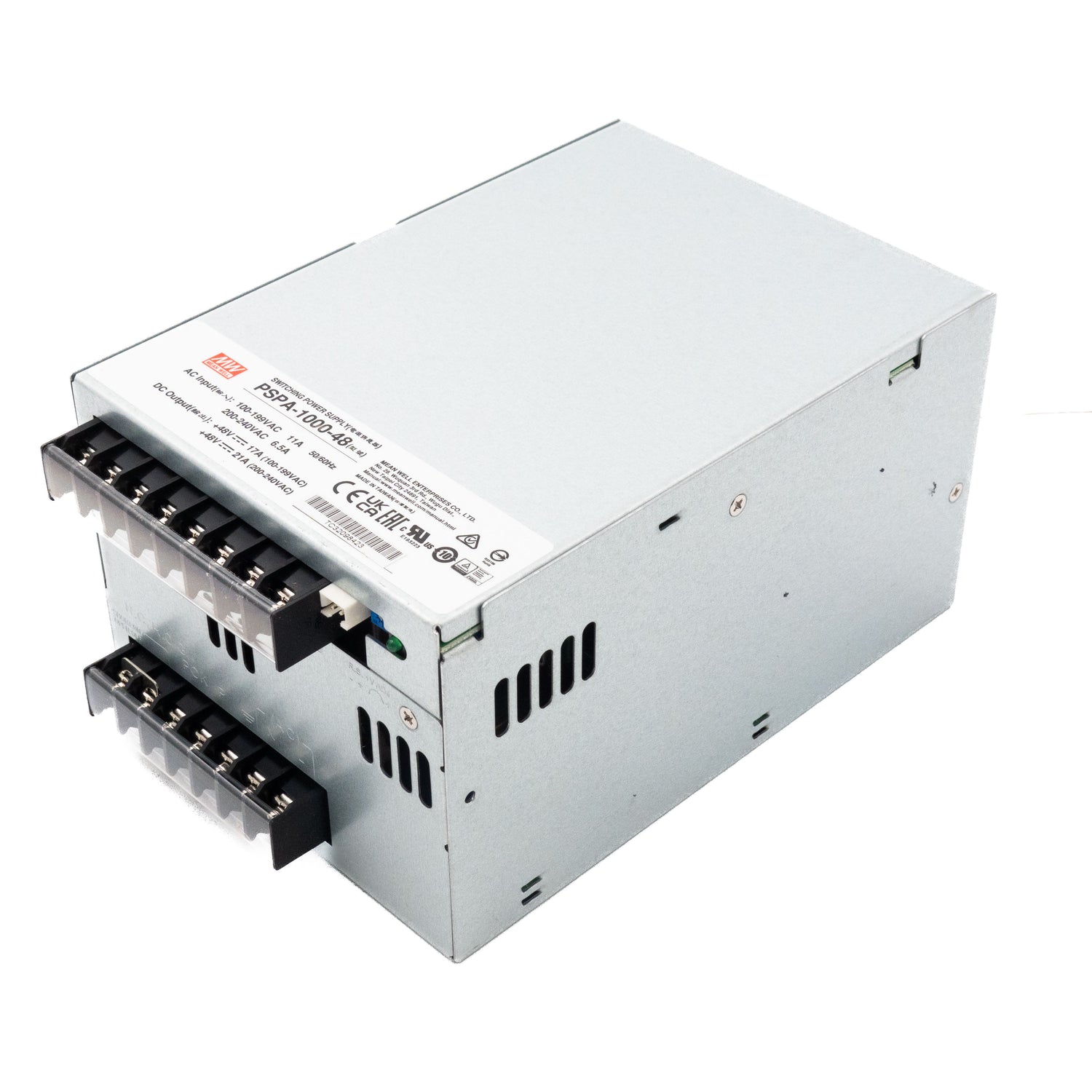

Mean Well PSPA-1000-48 Power Supply 1000W 48V

built-in active PFC, current sharing up to 4000W(3+1)
$219.47 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Built-in remote sense function and ON/OFF control
Current sharing up to 2400W (3+1)
With DC OK signal output
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 88~264VAC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~135%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection 115%~140%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute
Working temperature -20~+60°C
Safety standards UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection 7+8P / 9.5mm pitch terminal block with cover
Dimension (LxWxH) 170x120x93
Case No. 910A
Packing 8pcs / 16.4kg

Specifications

  • Brand
    Mean Well
  • Series
    PSP Series
  • Power Rating
    1008 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    21 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    5 Year
  • Length
    6.69 in
  • Width
    4.72 in
  • Height
    3.66 in
  • Weight
    4.25 lb
