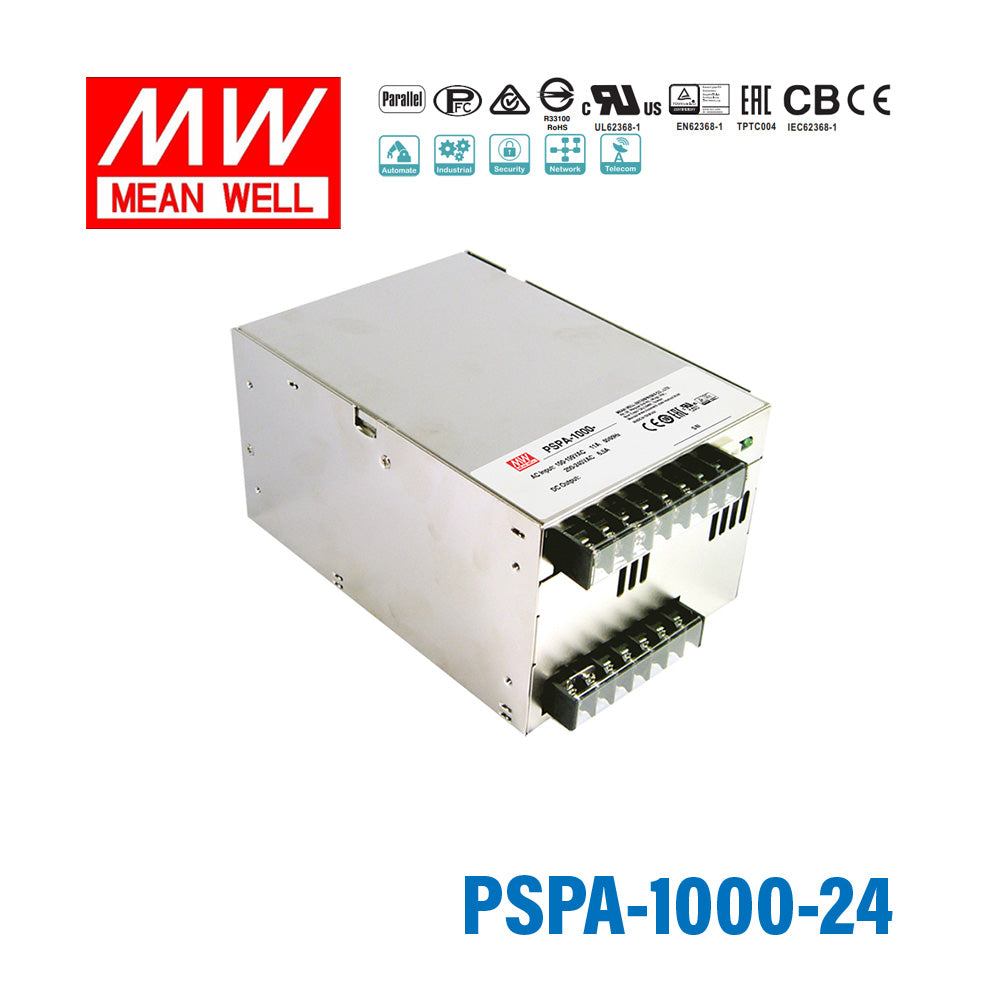

Mean Well PSPA-1000-24 Power Supply 1000W 24V
The PSPA-1000 is a 1000W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EN62368-1 , BSMI CNS14336-1 AS/NZS62368.1 , , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating1008 Watt
-
Output Voltage24 Volt
-
Rated Current42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length6.69 in
-
Width4.72 in
-
Height3.66 in
-
Weight4.25 lb
::specification::
Frequently Asked Questions
Can I use the PSPA-1000-24 for a 24V PLC or automation control cabinet?
Yes, this model is well suited to 24V industrial automation systems that need a constant voltage source. It provides 1008W at 24V with up to 42A output, which fits larger PLC, I/O, and control cabinet loads.
Is the PSPA-1000-24 appropriate for industrial sensors, relays, and 24V control devices on one supply?
It can support a centralized 24V DC bus for multiple industrial devices as long as the total load stays within 1008W and 42A. The constant voltage output is aligned with common 24V control architectures used in automation equipment.
Can this 24V power supply be used for embedded systems or industrial computers that run on 24V DC?
Yes, if the system is designed for a 24V constant voltage input. The 24V output and 42A capacity make it a better fit for higher-power 24V embedded platforms than the 12V, 15V, or 48V variants.
Is the PSPA-1000-24 suitable for machine control systems that need more than a typical small DIN rail supply?
It is intended for higher-power 24V applications where a single supply may need to support substantial cabinet demand. With 1008W available, it sits above lower-power 24V supplies and is aimed at heavier control-system loads.
Can the PSPA-1000-24 operate in warm factory enclosures?
The specified operating range is -20°C to +70°C, so the temperature rating supports use in demanding indoor industrial environments. Since no IP rating is listed in the provided specs, it should be treated as a protected-enclosure product rather than an exposed outdoor unit.
What are the differences between the PSPA-1000-24 and the other PSPA-1000 versions?
The PSPA-1000-24 is rated at 1008W, 24V, and 42A. The sibling models listed are PSPA-1000-12 at 960W, 12V, 80A; PSPA-1000-15 at 960W, 15V, 64A; and PSPA-1000-48 at 1008W, 48V, 21A.
